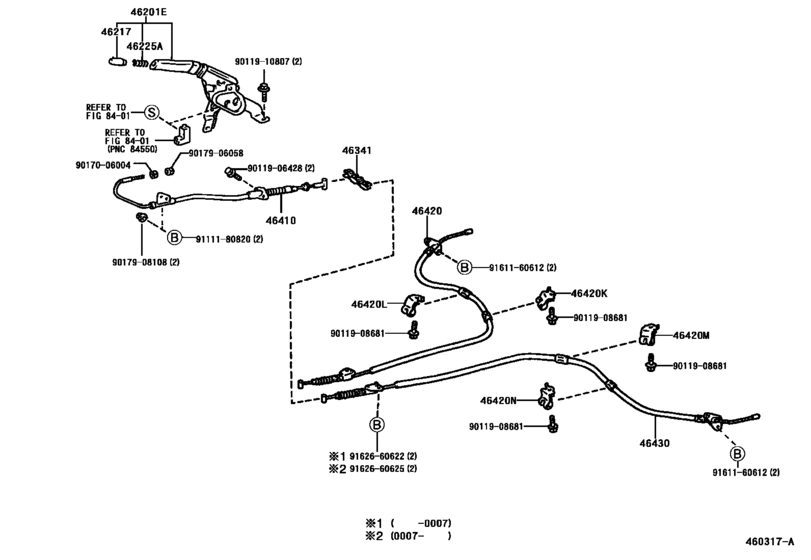

Parking Brake & Cable ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-53030-C0 Lever Sub-Assy, Parking BrakePARKING BRAKE [05.2000 - 07.2001] JCE10 BLACK,TRIM0#,2# |
46201-53030-C0 |
US $183.46 |
||
|
46217
|
46217
46217-53010 Knob, Parking Brake Release Rod[05.2000 - 07.2001] JCE10 |
46217-53010 |
US $5.12 |
||
|
46225A
|
46225A
90504-12005 Spring, Compression(For Parking Brake Pawl Rod)[05.2000 - 07.2001] JCE10 |
90504-12005 |
US $0.87 |
||
|
46341
|
46341
46341-24010 Equalizer, Parking Brake[05.2000 - 07.2001] JCE10 |
46341-24010 |
US $9.44 |
||
|
46410
|
46410
46410-53020
Cable Assy, Parking Brake, No.1
[05.2000 - 07.2001] JCE10 |
46410-53020 |
— | ||
|
46420
|
46420
46420-53010
Cable Assy, Parking Brake, No.2
[05.2000 - 07.2000] JCE10 |
46420-53010 |
— | ||
| replacements | |||||
|
46420
|
46420
91621-B0625 New Genuine Part[05.2000 - 07.2000] JCE10 |
91621-B0625 |
US $0.96 |
||
|
46420
|
46420
46420-53011 Cable Assy, Parking Brake, No.2[05.2000 - 07.2000] JCE10 |
46420-53011 |
US $72.66 |
||
|
46420
|
46420
46420-53011 Cable Assy, Parking Brake, No.2[07.2000 - 07.2001] JCE10 |
46420-53011 |
US $72.66 |
||
|
46420K
|
46420K
46421-51010 Clamp, No.4(For Parking Brake Cable)[05.2000 - 07.2001] JCE10 |
46421-51010 |
US $5.77 |
||
|
46420L
|
46420L
46421-51020 Clamp, No.5(For Parking Brake Cable)[05.2000 - 07.2001] JCE10 |
46421-51020 |
US $7.16 |
||
|
46420M
|
46420M
46431-51010 Clamp, No.6(For Parking Brake Cable)[05.2000 - 07.2001] JCE10 |
46431-51010 |
US $5.77 |
||
|
46420N
|
46420N
46431-51020 Clamp, No.7(For Parking Brake Cable)[05.2000 - 07.2001] JCE10 |
46431-51020 |
US $7.16 |
||
|
46430
|
46430
46430-53010
Cable Assy, Parking Brake, No.3
[05.2000 - 07.2000] JCE10 |
46430-53010 |
— | ||
| replacements | |||||
|
46430
|
46430
91621-B0625 New Genuine Part[05.2000 - 07.2000] JCE10 |
91621-B0625 |
US $0.96 |
||
|
46430
|
46430
46430-53011 Cable Assy, Parking Brake, No.3[05.2000 - 07.2000] JCE10 |
46430-53011 |
US $67.62 |
||
|
46430
|
46430
46430-53011 Cable Assy, Parking Brake, No.3[07.2000 - 07.2001] JCE10 |
46430-53011 |
US $67.62 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9011908681
|
9011908681
90119-08681 BOLT W-WASHER |
90119-08681 |
from US $2.56 |
||
|
9011910807
|
9011910807
90119-10807 New Genuine Part |
90119-10807 |
US $10.72 |
||
| replacement | |||||
|
9011910807
|
9011910807
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908108
|
9017908108
90179-08108 Nut |
90179-08108 |
US $2.56 |
||
|
9111180820
|
9111180820
91111-80820 BOLT |
91111-80820 |
US $1.44 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9162660622
|
9162660622
91626-60622 New Genuine Part |
91626-60622 |
US $1.46 |
||
| replacement | |||||
|
9162660622
|
9162660622
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9162660625
|
9162660625
91626-60625 New Genuine Part |
91626-60625 |
US $1.46 |
||
| replacement | |||||
|
9162660625
|
9162660625
91621-B0625 New Genuine Part |
91621-B0625 |
US $0.96 |
||
