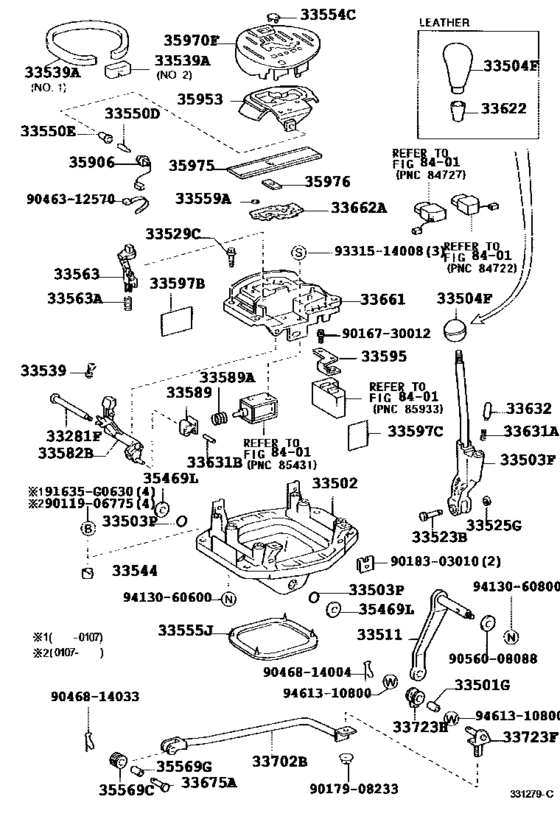

Shift Lever & Retainer ([05.2000 - ] (0005- )ATM) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281F
|
33281F
33281-50010 Pin, Lever Lock (For Floor Shift)[05.2000 - 07.2001] JCE10 |
33281-50010 |
US $4.72 |
||
|
33501G
|
33501G
90560-08091 Bush (For Floor Shift Control Shaft)[05.2000 - 07.2001] JCE10 |
90560-08091 |
US $1.12 |
||
|
33502
|
33502
33521-53010 Plate Sub-Assy, Shift Lever[05.2000 - 07.2001] JCE10 |
33521-53010 |
US $78.62 |
||
|
33503F
|
33503F
33055-53020 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [05.2000 - 07.2001] JCE10 W(LEATHER SHIFT KNOB) |
33055-53020 |
US $26.64 |
||
|
33503F
|
33503F
33055-53040 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [05.2000 - 07.2001] JCE10 W(METALLIC SHIFT KNOB) |
33055-53040 |
US $25.04 |
||
|
33503P
|
33503P
96711-24014 Ring, O(For Shift Lever)[05.2000 - 07.2001] JCE10 |
96711-24014 |
US $2.62 |
||
|
33504F
|
33504F
33504-53020 Knob Sub-Assy, Shift Lever[05.2000 - 07.2001] JCE10 |
33504-53020 |
from US $47.70 |
||
|
33504F
|
33504F
33504-53060-C0 Knob Sub-Assy, Shift Lever[07.2001 -] JCE10..ATM BLACK,TRIM0#,2# |
33504-53060-C0 |
US $82.99 |
||
|
33504F
|
33504F
33542-22250-C1
Knob Sub-Assy, Shift Lever
[05.2000 - 07.2001] JCE10 LEATHER,BLACK,TRIM0#,2# |
33542-22250-C1 |
— | ||
|
33511
|
33511
33501-53020 Shaft, Control (For Floor Shift)CONTROL (FOR FLOOR SHIFT) [05.2000 - 07.2001] JCE10 |
33501-53020 |
US $26.79 |
||
|
33523B
|
33523B
90249-05094 Pin, Shift Lever (For Floor Shift)[05.2000 - 07.2001] JCE10 |
90249-05094 |
US $1.05 |
||
|
33525G
|
33525G
33525-50010 Ring, Shift Lever[05.2000 - 07.2001] JCE10 |
33525-50010 |
US $2.62 |
||
|
33529C
|
33529C
33529-50010 Bolt, Shift Lever[05.2000 - 07.2001] JCE10 |
33529-50010 |
US $1.02 |
||
|
33539
|
33539
33539-14010 Cushion, Shift Lever Anti-Rattle[05.2000 - 07.2001] JCE10 |
33539-14010 |
US $0.86 |
||
|
33539A
|
33539A
33539-53010 Cushion(For Position Indicator Housing)[05.2000 - 07.2001] JCE10 NO.1 |
33539-53010 |
US $13.28 |
||
|
33539A
|
33539A
33539-53020 Cushion(For Position Indicator Housing)[05.2000 - 07.2001] JCE10 NO.2 |
33539-53020 |
US $5.10 |
||
|
33544
|
33544
33544-50010 Insert, Shift Lever, No.1[05.2000 - 07.2001] JCE10 |
33544-50010 |
US $1.16 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[05.2000 - 07.2001] JCE10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
33550E
|
33550E
90339-04074 Cap, Position Indicator Lamp[05.2000 - 07.2001] JCE10 |
90339-04074 |
US $2.40 |
||
|
33554C
|
33554C
33554-53010
Cover, Shift Lock Release Button
[05.2000 - 07.2001] JCE10 |
33554-53010 |
— | ||
|
33555J
|
33555J
33555-53010 Seal, Shift Lever[05.2000 - 07.2001] JCE10 |
33555-53010 |
US $5.82 |
||
|
33559A
|
33559A
33559-50010 Nut, Shift Lever, No.1[05.2000 - 07.2001] JCE10 |
33559-50010 |
US $1.28 |
||
|
33563
|
33563
33564-53010
Button, Shift Lock Release
[05.2000 - 07.2001] JCE10 |
33564-53010 |
— | ||
|
33563A
|
33563A
90501-05035 Spring, Compression (For Shift Lock Release Button)[05.2000 - 07.2001] JCE10 |
90501-05035 |
US $1.31 |
||
|
33582B
|
33582B
33582-53010 Stopper, Shift Lock Plate (For Floor Shift)SHIFT LOCK PLATE (FOR FLOOR SHIFT) [05.2000 - 07.2001] JCE10 |
33582-53010 |
US $8.44 |
||
|
33589
|
33589
33589-24010 Link, Shift Lock Solenoid[05.2000 - 07.2001] JCE10 |
33589-24010 |
US $3.06 |
||
|
33589A
|
33589A
90501-06086 Spring, Compression (For Shift Lock Release Button)[05.2000 - 07.2001] JCE10 |
90501-06086 |
US $0.67 |
||
|
33595
|
33595
33595-53010 Bracket, Shift Lock ComputerSHIFT LOCK COMPUTER [05.2000 - 07.2001] JCE10 |
33595-53010 |
US $4.95 |
||
|
33597B
|
33597B
33597-53010 Seat, Shift Lever, No.1 (For Floor Shift)[05.2000 - 07.2001] JCE10 |
33597-53010 |
US $3.20 |
||
|
33597C
|
33597C
33597-53020 Seat, Shift Lever No.2 (For Floor Shift)[05.2000 - 07.2001] JCE10 |
33597-53020 |
US $3.20 |
||
|
33622
|
33622
33622-50060 Cover, Shift Lever Knob, No.1[05.2000 - 07.2001] JCE10 |
33622-50060 |
US $7.16 |
||
|
33631A
|
33631A
90501-09152 Spring, Compression (For Detent Rod)[05.2000 - 07.2001] JCE10 |
90501-09152 |
US $1.75 |
||
|
33631B
|
33631B
90256-02001 Pin, Slotted Spring (For Detent Rod)[05.2000 - 07.2001] JCE10 |
90256-02001 |
US $1.60 |
||
|
33632
|
33632
33632-50010 Rod, Detent, No.2[05.2000 - 07.2001] JCE10 |
33632-50010 |
US $2.33 |
||
|
33661
|
33661
33661-53040
Housing, Shift Lever Guide
[05.2000 - 07.2001] JCE10 |
33661-53040 |
— | ||
|
33662A
|
33662A
33662-53020
Cushion, Shift Lever Guide
[05.2000 - 07.2001] JCE10 |
33662-53020 |
— | ||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[11.2000 - 07.2001] JCE10 |
33726-35010 |
US $3.04 |
||
|
33675A
|
33675A
90240-08120 Pin, W/hole (For Transmission Control Rod)[05.2000 - 11.2000] JCE10 |
90240-08120 |
US $1.93 |
||
|
33702B
|
33702B
33702-53030 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[05.2000 - 07.2001] JCE10 |
33702-53030 |
US $17.33 |
||
|
33723F
|
33723F
33723-22020 Swivel, Connecting Rod (For Floor Shift)[05.2000 - 07.2001] JCE10 |
33723-22020 |
US $7.34 |
||
|
33723H
|
33723H
33572-30050 Bush (For Floor Shift Control Shaft)[05.2000 - 07.2001] JCE10 |
33572-30050 |
US $2.97 |
||
|
35469L
|
35469L
35469-50010 Spacer, Shift Lever[05.2000 - 07.2001] JCE10 |
35469-50010 |
US $2.62 |
||
|
35569C
|
35569C
90480-17013 Grommet[05.2000 - 07.2001] JCE10 |
90480-17013 |
from US $3.33 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[05.2000 - 07.2001] JCE10 |
90560-08091 |
US $1.12 |
||
|
35906
|
35906
35906-53010 Wire Sub-Assy, Indicator Lamp[05.2000 - 07.2001] JCE10 |
35906-53010 |
US $24.75 |
||
|
35953
|
35953
35953-53020 Guide, Position Indicator LightPOSITION INDICATOR LIGHT [05.2000 - 07.2001] JCE10 |
35953-53020 |
US $32.18 |
||
|
35970F
|
35970F
35970-53050
Housing Assy, Position Indicator
[05.2000 - 07.2001] JCE10 |
35970-53050 |
— | ||
| replacement | |||||
|
35970F
|
35970F
35970-53051
Housing Assy, Position Indicator
[05.2000 - 07.2001] JCE10 |
35970-53051 |
— | ||
|
35970F
|
35970F
35970-53051
Housing Assy, Position Indicator
[08.2003 -] JCE10..ATM |
35970-53051 |
— | ||
|
35975
|
35975
35975-22160 Cover, Slide (For Position Indicator)[05.2000 - 07.2001] JCE10 |
35975-22160 |
US $11.52 |
||
|
35976
|
35976
35976-22060 Cover, Slide, No.2 (For Position Indicator)[05.2000 - 07.2001] JCE10 |
35976-22060 |
from US $5.05 |
||
|
91635G0630
|
91635G0630
91635-G0630 New Genuine Part |
91635-G0630 |
US $1.46 |
||
| replacement | |||||
|
91635G0630
|
91635G0630
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9016730012
|
9016730012
90167-30012 New Genuine Part |
90167-30012 |
US $1.46 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.33 |
||
|
9018303010
|
9018303010
90183-03010 New Genuine Part |
90183-03010 |
US $1.75 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.68 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $1.05 |
||
|
9056008088
|
9056008088
90560-08088 New Genuine Part |
90560-08088 |
US $1.75 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.84 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.70 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
