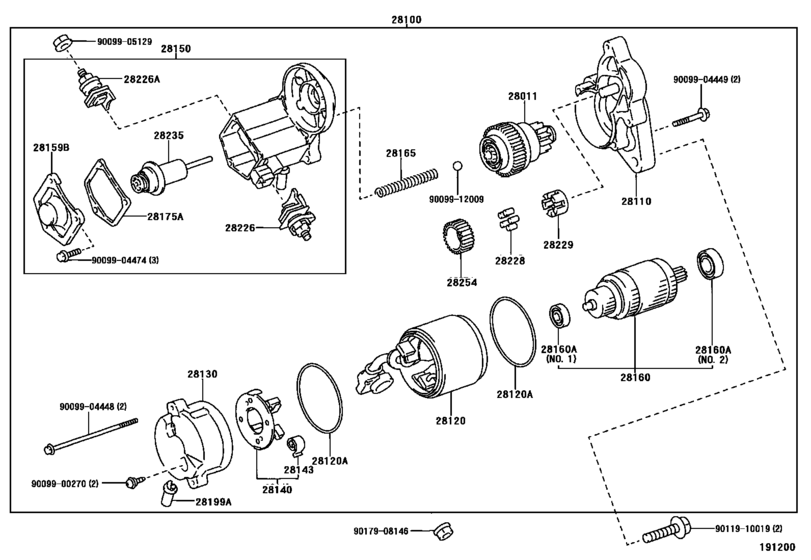

Starter ([05.2000 - 07.2001] 12V 1.4KW (0005-0107)) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-76070 Clutch Sub-Assy, Starter[05.2000 - 07.2001] 2JZGE..JCE10 |
28011-76070 |
from US $50.80 |
||
|
28100
|
28100
28100-46220 Starter Assy[05.2000 - 07.2001] 2JZGE..JCE10 12V 1.4KW |
28100-46220 |
US $1,415.23 |
||
|
28110
|
28110
28110-46220 Housing Assy, Starter DriveSTARTER DRIVE [05.2000 - 07.2001] 2JZGE..JCE10 |
28110-46220 |
US $90.27 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[05.2000 - 07.2001] 2JZGE..JCE10 |
28120-66040 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[05.2000 - 07.2001] 2JZGE..JCE10 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-46220
Frame Assy, Starter Commutator End
[05.2000 - 07.2001] 2JZGE..JCE10 |
28130-46220 |
— | ||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[05.2000 - 07.2001] 2JZGE..JCE10 |
28140-76070 |
from US $17.65 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.2000 - 07.2001] 2JZGE..JCE10 |
90099-17112 |
— | ||
|
28150
|
28150
28150-46220 Switch Assy, Magnet Starter[05.2000 - 07.2001] 2JZGE..JCE10 |
28150-46220 |
US $215.49 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[05.2000 - 07.2001] 2JZGE..JCE10 |
28159-55050 |
— | ||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[05.2000 - 07.2001] 2JZGE..JCE10 |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[05.2000 - 07.2001] 2JZGE..JCE10 NO.1 |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[05.2000 - 07.2001] 2JZGE..JCE10 NO.2 |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[05.2000 - 07.2001] 2JZGE..JCE10 |
28165-76070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[05.2000 - 07.2001] 2JZGE..JCE10 |
28175-55050 |
US $1.92 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[05.2000 - 07.2001] 2JZGE..JCE10 |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-22050 Starter Kit, Battery Terminal[05.2000 - 07.2001] 2JZGE..JCE10 |
28226-22050 |
from US $9.13 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[05.2000 - 07.2001] 2JZGE..JCE10 |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[05.2000 - 07.2001] 2JZGE..JCE10 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[05.2000 - 07.2001] 2JZGE..JCE10 |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[05.2000 - 07.2001] 2JZGE..JCE10 |
28235-55050 |
from US $20.27 |
||
|
28254
|
28254
28254-74070
Pinion, Starter Drive
[05.2000 - 07.2001] 2JZGE..JCE10 |
28254-74070 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $4.48 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
