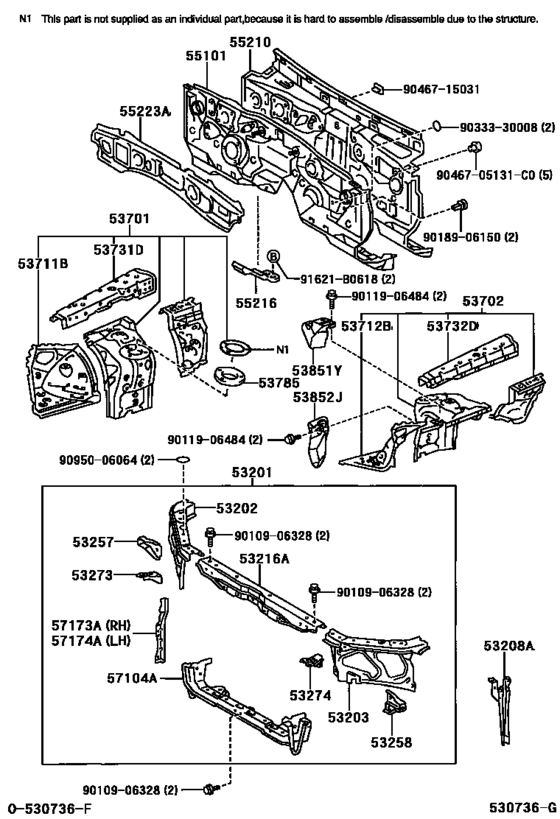

Front Fender Apron & Dash Panel ([01.1999 - ] (9901- )) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-53090 Support Sub-Assy, Radiator[07.2001 -] GXE10,JCE10..LHD |
53201-53090 |
US $767.19 |
||
|
53202
|
53202
53202-53902 Support Sub-Assy, Radiator, Rh[07.2001 -] GXE10,JCE10..LHD |
53202-53902 |
US $82.10 |
||
|
53203
|
53203
53203-53902
Support Sub-Assy, Radiator, Lh
[07.2001 -] GXE10,JCE10..LHD |
53203-53902 |
— | ||
|
53208A
|
53208A
53208-53010 Support Sub-Assy, Hood Lock[07.2001 -] GXE10,JCE10 |
53208-53010 |
US $25.92 |
||
|
53216A
|
53216A
53216-53011 Support, Radiator, Upper[07.2001 -] GXE10,JCE10 |
53216-53011 |
US $82.88 |
||
|
53257
|
53257
53257-53010 Bracket, Front End Panel Mounting, Rh[07.2001 -] GXE10,JCE10 |
53257-53010 |
US $10.48 |
||
|
53258
|
53258
53258-53010 Bracket, Front End Panel Mounting, Lh[07.2001 -] GXE10,JCE10 |
53258-53010 |
US $12.41 |
||
|
53273
|
53273
53273-53010 Bracket, Front Bumper Arm Mounting, Rh[07.2001 -] GXE10,JCE10 |
53273-53010 |
US $7.34 |
||
|
53274
|
53274
53274-53010
Bracket, Front Bumper Arm Mounting, Lh
[07.2001 -] GXE10,JCE10 |
53274-53010 |
— | ||
|
53701
|
53701
53701-53032 Apron Sub-Assy, Front Fender, Rh[07.2001 - 03.2003] JCE10 |
53701-53032 |
US $631.90 |
||
| replacements | |||||
|
53701
|
53701
53701-53033 Apron Sub-Assy, Front Fender, Rh[07.2001 - 03.2003] JCE10 |
53701-53033 |
US $634.82 |
||
|
53701
|
53701
90173-10012 Nut(For Suspension Upper Arm)[07.2001 - 03.2003] JCE10 |
90173-10012 |
US $1.60 |
||
|
53701
|
53701
53701-53033 Apron Sub-Assy, Front Fender, Rh[03.2003 -] JCE10 |
53701-53033 |
US $634.82 |
||
|
53702
|
53702
53702-53024 Apron Sub-Assy, Front Fender, Lh[07.2001 - 03.2003] JCE10 |
53702-53024 |
US $631.90 |
||
| replacements | |||||
|
53702
|
53702
53702-53025 Apron Sub-Assy, Front Fender, Lh[07.2001 - 03.2003] JCE10 |
53702-53025 |
US $634.82 |
||
|
53702
|
53702
90173-10012 Nut(For Suspension Upper Arm)[07.2001 - 03.2003] JCE10 |
90173-10012 |
US $1.60 |
||
|
53702
|
53702
53702-53025 Apron Sub-Assy, Front Fender, Lh[03.2003 -] JCE10 |
53702-53025 |
US $634.82 |
||
|
53711B
|
53711B
53711-53020 Apron, Front Fender, Front Rh[07.2001 -] GXE10,JCE10 |
53711-53020 |
US $82.99 |
||
|
53712B
|
53712B
53712-53011
Apron, Front Fender, Front Lh
[07.2001 -] GXE10,JCE10 |
53712-53011 |
— | ||
|
53731D
|
53731D
53705-53010 Member, Front Apron To Cowl Side, Upper Rh[07.2001 -] GXE10,JCE10 |
53705-53010 |
US $53.58 |
||
|
53732D
|
53732D
53706-53010
Member, Front Apron To Cowl Side, Upper Lh
[07.2001 -] GXE10,JCE10 |
53706-53010 |
— | ||
|
53785
|
53785
53785-53010 Reinforce, Front Suspension Upper Arm, No.1[07.2001 -] GXE10,JCE10..SED |
53785-53010 |
US $27.08 |
||
|
53851Y
|
53851Y
53851-53010 Pad, Front Wheel Opening Extension, No.1FRONT WHEEL OPENING EXTENSION, NO.1 [07.2001 - 07.2003] JCE10 |
53851-53010 |
US $46.59 |
||
| replacement | |||||
|
53851Y
|
53851Y
53851-53011 Pad, Front Wheel Opening Extension, No.1FRONT WHEEL OPENING EXTENSION, NO.1 [07.2001 - 07.2003] JCE10 |
53851-53011 |
US $46.74 |
||
|
53851Y
|
53851Y
53851-53011 Pad, Front Wheel Opening Extension, No.1FRONT WHEEL OPENING EXTENSION, NO.1 [07.2003 -] JCE10 |
53851-53011 |
US $46.74 |
||
|
53852J
|
53852J
53852-53010 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [07.2001 - 07.2003] JCE10 |
53852-53010 |
US $51.40 |
||
| replacement | |||||
|
53852J
|
53852J
53852-53011 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [07.2001 - 07.2003] JCE10 |
53852-53011 |
US $51.83 |
||
|
53852J
|
53852J
53852-53011 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [07.2003 -] JCE10 |
53852-53011 |
US $51.83 |
||
|
55101
|
55101
55101-53081 Panel Sub-Assy, DashDASH [07.2001 -] JCE10..LHD |
55101-53081 |
US $454.27 |
||
|
55210
|
55210
55210-53021 Insulator Assy, Dash PanelDASH PANEL [07.2001 - 02.2003] GXE10,JCE10..LHD |
55210-53021 |
US $428.06 |
||
| replacement | |||||
|
55210
|
55210
55210-53022
Insulator Assy, Dash Panel
[07.2001 - 02.2003] GXE10,JCE10..LHD |
55210-53022 |
— | ||
|
55210
|
55210
55210-53022
Insulator Assy, Dash Panel
[02.2003 -] GXE10,JCE10..LHD |
55210-53022 |
— | ||
|
55223A
|
55223A
55223-53020 Insulator, Dash Panel, OuterDASH PANEL, OUTER [07.2001 -] GXE10,JCE10..LHD |
55223-53020 |
US $81.54 |
||
|
57104A
|
57104A
57104-51030 Member Sub-Assy, Front Cross[07.2001 -] GXE10,JCE10 |
57104-51030 |
US $194.20 |
||
|
57173A
|
57173A
57173-53010
Reinforcement, Front Crossmember, No.3 Rh
[07.2001 -] GXE10,JCE10 |
57173-53010 |
— | ||
|
57174A
|
57174A
57174-53010
Reinforcement, Front Crossmember, No.3 Lh
[07.2001 -] GXE10,JCE10 |
57174-53010 |
— | ||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9011906484
|
9011906484
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
| replacement | |||||
|
9011906484
|
9011906484
90119-06278 BOLT |
90119-06278 |
US $1.28 |
||
|
9018906150
|
9018906150
90189-06150 BUSH |
90189-06150 |
from US $0.47 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046705131C0
|
9046705131C0
90467-05131-C0 Clip |
90467-05131-C0 |
US $2.62 |
||
|
9046715031
|
9046715031
90467-15031 New Genuine Part |
90467-15031 |
US $2.72 |
||
|
9095006064
|
9095006064
90950-06064 TAPESEAL |
90950-06064 |
from US $1.76 |
||
