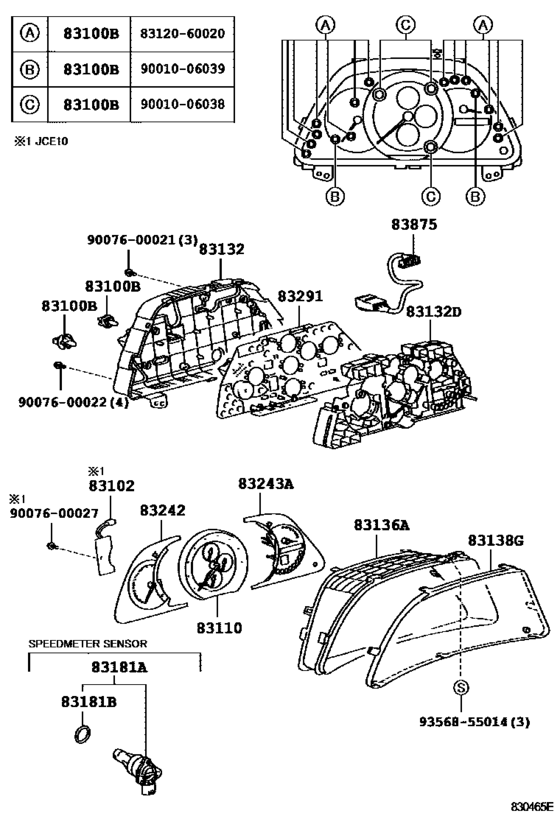

Meter ([01.1999 - ] (9901- )) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[08.2003 - 07.2005] JCE10 12V 1.4W,W(SOCKET) |
83120-60020 |
from US $3.72 |
||
|
83100B
|
83100B
90010-06024 Bulb, Combination Meter, No.1[07.2001 - 07.2005] JCE10 14V 1.12W |
90010-06024 |
US $4.80 |
||
|
83100B
|
83100B
90010-06038 Bulb, Combination Meter, No.1[08.2003 - 07.2005] GXE10;JCE10..RHD;JCE10..LHD..SED 14V3.8W,W(ORANGE CAP) |
90010-06038 |
from US $5.38 |
||
|
83100B
|
83100B
90010-06039 Bulb, Combination Meter, No.1[08.2003 - 07.2005] GXE10;JCE10..RHD;JCE10..LHD..SED 14V 3W,W(ORANGE CAP) |
90010-06039 |
US $6.56 |
||
|
83102
|
83102
83861-53220
Plate Sub-Assy, Combination Meter Circuit, No.1
[07.2001 - 07.2005] JCE10 |
83861-53220 |
— | ||
|
83110
|
83110
83220-53220
Speedometer Assy
[07.2001 - 08.2003] JCE10..LHD; JCE10..ARL HONG KONG SPEC; JCE10..RHD..EUR SOUTH AFRICA SPEC |
83220-53220 |
— | ||
|
83110
|
83110
83220-53221
Speedometer Assy
[08.2003 - 07.2005] JCE10 SOUTH AFRICA OR CYPRUS OR TAIWAN SPEC |
83220-53221 |
— | ||
|
83110
|
83110
83220-53230
Speedometer Assy
[07.2001 - 08.2003] JCE10..ARL SINGAPORE SPEC; JCE10..LHD..SED SOUTH AFRICA SPEC |
83220-53230 |
— | ||
|
83110
|
83110
83220-53231
Speedometer Assy
[08.2003 - 07.2005] JCE10..ARL;JCE10..LHD..SED TAIWAN SPEC |
83220-53231 |
— | ||
|
83132
|
83132
83841-53010 Case, Combination Meter[07.2001 - 07.2005] GXE10,JCE10 |
83841-53010 |
US $50.09 |
||
|
83132D
|
83132D
83841-53220 Case, Combination Meter, No.2[07.2001 - 07.2005] JCE10 |
83841-53220 |
US $50.09 |
||
|
83136A
|
83136A
83821-53010 Cover, Combination Meter[07.2001 - 07.2005] GXE10,JCE10 |
83821-53010 |
US $34.51 |
||
|
83138G
|
83138G
83852-53010 Glass, Combination Meter[07.2001 - 07.2005] GXE10,JCE10 |
83852-53010 |
US $31.92 |
||
|
83242
|
83242
83881-53400
Tachometer Assy, Engine
[07.2001 - 08.2003] JCE10 |
83881-53400 |
— | ||
|
83242
|
83242
83881-53401
Tachometer Assy, Engine
[08.2003 - 07.2005] JCE10 |
83881-53401 |
— | ||
|
83243A
|
83243A
83882-53400
Gauge Sub-Assy, Fuel Receiver
[07.2001 - 08.2003] JCE10..LHD; JCE10..ARL HONG KONG SPEC; JCE10..RHD..EUR SOUTH AFRICA SPEC |
83882-53400 |
— | ||
|
83243A
|
83243A
83882-53401
Gauge Sub-Assy, Fuel Receiver
[08.2003 - 07.2005] JCE10..EUR; JCE10..ARL HONG KONG SPEC |
83882-53401 |
— | ||
|
83243A
|
83243A
83882-53421
Gauge Sub-Assy, Fuel Receiver
[08.2003 - 07.2005] JCE10..ARL; JCE10..LHD..SED TAIWAN SPEC |
83882-53421 |
— | ||
|
83291
|
83291
83291-53340
Computer, Combination Meter
[07.2001 - 08.2003] JCE10..LHD; JCE10..ARL HONG KONG SPEC; JCE10..RHD..EUR SOUTH AFRICA SPEC |
83291-53340 |
— | ||
|
83291
|
83291
83291-53341
Computer, Combination Meter
[08.2003 -] JCE10 SOUTH AFRICA OR CYPRUS OR TAIWAN SPEC |
83291-53341 |
— | ||
|
83291
|
83291
83291-53350
Computer, Combination Meter
[07.2001 - 08.2003] JCE10..ARL SINGAPORE SPEC; JCE10..LHD..SED CANADA SPEC |
83291-53350 |
— | ||
|
83291
|
83291
83291-53351
Computer, Combination Meter
[08.2003 -] JCE10..ARL;JCE10..LHD..SED TAIWAN SPEC |
83291-53351 |
— | ||
|
83875
|
83875
83875-53340 Wire, Combination Meter, No.1COMBINATION METER, NO.1 [07.2001 - 08.2003] GXE10,JCE10 |
83875-53340 |
US $7.86 |
||
|
83875
|
83875
83875-53341 Wire, Combination Meter, No.1COMBINATION METER, NO.1 [08.2003 - 07.2005] GXE10,JCE10 |
83875-53341 |
US $7.86 |
||
|
9007600021
|
9007600021
90076-00021 New Genuine Part |
90076-00021 |
US $3.79 |
||
|
9007600022
|
9007600022
90076-00022 New Genuine Part |
90076-00022 |
US $3.79 |
||
|
9007600027
|
9007600027
90076-00027 New Genuine Part |
90076-00027 |
US $3.79 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
