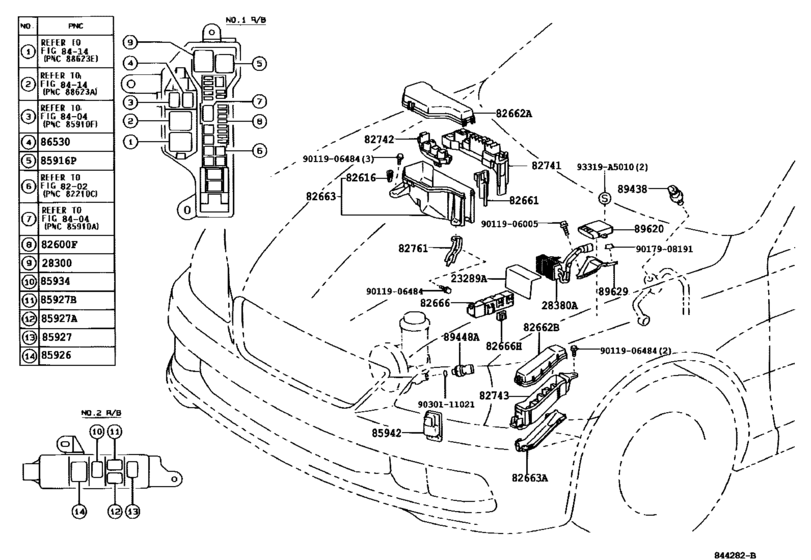

Switch & Relay & Computer ([01.1999 - ] ENGINE ROOM (9901- )LHD) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23289A
|
23289A
23289-50020 Cover, Fuel Pump Resistor[07.2001 -] 2JZGE..JCE10 |
23289-50020 |
US $11.36 |
||
|
28300
|
28300
28300-10020 Relay Assy, Starter[07.2001 - 07.2005] 1GFE,2JZGE..GXE10,JCE10 |
28300-10020 |
from US $55.30 |
||
|
28380A
|
28380A
23080-46090
Resister, Fuel Pump
[07.2001 -] 2JZGE..JCE10 |
23080-46090 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[07.2001 -] GXE10,JCE10 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[07.2001 -] GXE10,JCE10 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[07.2001 -] GXE10,JCE10 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[07.2001 -] GXE10,JCE10 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[07.2001 -] GXE10,JCE10 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[07.2001 -] GXE10,JCE10 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[07.2001 -] GXE10,JCE10 |
82616-20010 |
from US $2.36 |
||
|
82661
|
82661
82661-30450 Cover, Relay Block, No.1[07.2001 -] GXE10,JCE10 |
82661-30450 |
US $6.41 |
||
|
82662A
|
82662A
82662-53021 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [07.2001 -] GXE10,JCE10..LHD |
82662-53021 |
US $33.63 |
||
|
82662B
|
82662B
82662-53032 Cover, Relay Block, Upper, No.2[07.2001 -] GXE10,JCE10 |
82662-53032 |
US $20.62 |
||
|
82663
|
82663
82663-53020 Cover, Relay Block, LowerRELAY BLOCK, LOWER [07.2001 -] GXE10,JCE10..LHD |
82663-53020 |
from US $68.87 |
||
|
82663A
|
82663A
82663-53030 Cover, Relay Block, Lower, No.2[07.2001 -] GXE10,JCE10 |
82663-53030 |
US $16.77 |
||
|
82666
|
82666
82666-30610 Holder, Connector[07.2001 -] GXE10,JCE10 |
82666-30610 |
US $21.69 |
||
|
82666H
|
82666H
82666-30670 Holder, Connector No.2[07.2001 -] GXE10,JCE10 |
82666-30670 |
US $4.72 |
||
|
82741
|
82741
82741-30040 Block, Engine Room Relay[07.2001 -] GXE10,JCE10 |
82741-30040 |
US $103.38 |
||
|
82742
|
82742
82742-53010 Block, Engine Room Relay, No.2[07.2001 -] GXE10,JCE10 |
82742-53010 |
US $24.46 |
||
|
82743
|
82743
82743-53011 Block, Engine Room Relay, No.3[07.2001 -] GXE10,JCE10 |
82743-53011 |
US $67.44 |
||
|
82761
|
82761
82761-53020
Bracket, Relay Block, No.1
[07.2001 -] GXE10,JCE10..LHD |
82761-53020 |
— | ||
|
85916P
|
85916P
85916-30060 Relay, Light Control[07.2001 -] GXE10,JCE10 |
85916-30060 |
from US $93.24 |
||
|
85926
|
85926
90987-02006 Relay[07.2001 -] GXE10,JCE10..LHD |
90987-02006 |
from US $27.28 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[07.2001 -] GXE10,JCE10 |
90987-02012 |
from US $26.99 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[07.2001 -] GXE10,JCE10 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[07.2001 -] GXE10,JCE10 |
90987-02012 |
from US $26.99 |
||
|
85934
|
85934
90987-02012 Relay, Ignition, No.1[07.2001 -] GXE10,JCE10 |
90987-02012 |
from US $26.99 |
||
|
85942
|
85942
85942-24010 Relay, Headlamp Cleaner Control[07.2001 -] GXE10,JCE10 |
85942-24010 |
US $148.51 |
||
|
86530
|
86530
90987-02012 Relay, Ignition, No.1[07.2001 -] GXE10,JCE10 |
90987-02012 |
from US $26.99 |
||
|
89448A
|
89448A
89448-51010 Switch, Power Steering Oil Pressure[07.2001 -] JCE10 |
89448-51010 |
from US $163.08 |
||
|
89620
|
89620
89621-30020 Igniter Assy[07.2001 - 11.2003] JCE10 |
89621-30020 |
US $455 |
||
|
89620
|
89620
89621-30030 Igniter Assy[11.2003 -] JCE10 |
89621-30030 |
US $439.71 |
||
|
89629
|
89629
89629-51010 Bracket, Igniter Assy[07.2001 -] JCE10 |
89629-51010 |
US $11.79 |
||
|
93319A5010
|
93319A5010
93319-A5010 New Genuine Part |
93319-A5010 |
US $0.73 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906484
|
9011906484
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
| replacement | |||||
|
9011906484
|
9011906484
90119-06278 BOLT |
90119-06278 |
US $1.28 |
||
|
9017908191
|
9017908191
90179-08191 New Genuine Part |
90179-08191 |
US $1.44 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.20 |
||
