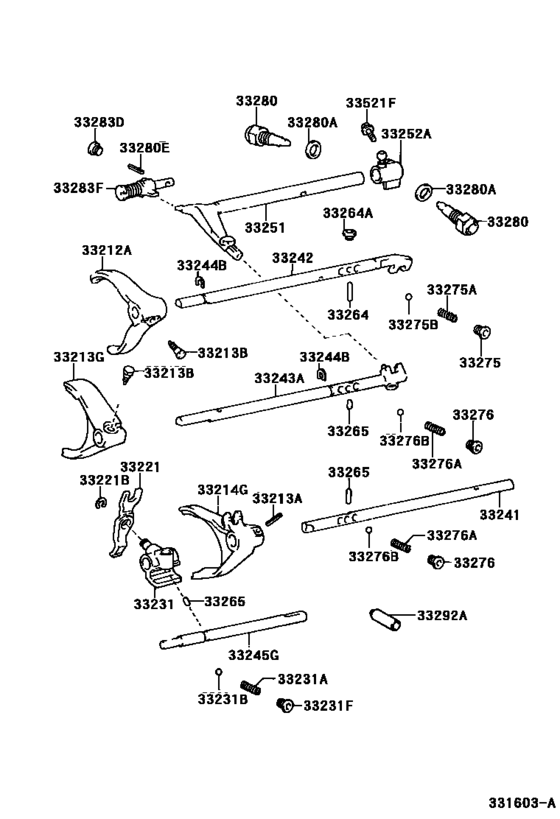

Gear Shift Fork & Lever Shaft (Mtm) ([07.2001 - ] W55 (0107- )) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- MTM
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33212A
|
33212A
33212-30050 Fork, Gear Shift, No.1[07.2001 - 07.2005] JCE10..MTM |
33212-30050 |
US $32.67 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[07.2001 - 07.2005] JCE10..MTM |
90254-05016 |
from US $1.90 |
||
|
33213B
|
33213B
90105-06143 Bolt(For Shift Fork Set)[07.2001 - 07.2005] JCE10..MTM |
90105-06143 |
US $1.10 |
||
|
33213G
|
33213G
33213-30060 Fork, Gear Shift, No.2[07.2001 - 07.2005] JCE10..MTM |
33213-30060 |
from US $34.98 |
||
|
33214G
|
33214G
33230-30011 Fork, Gear Shift, No.3[07.2001 - 07.2005] JCE10..MTM |
33230-30011 |
US $45.72 |
||
|
33221
|
33221
33221-22021 Arm, Reverse Shift[07.2001 - 07.2005] JCE10..MTM |
33221-22021 |
US $7.28 |
||
|
33221B
|
33221B
96160-00800 Ring, E(For Counter Weight)[07.2001 - 07.2005] JCE10..MTM |
96160-00800 |
from US $0.86 |
||
|
33231
|
33231
33231-22041 Head, Reverse Shift[07.2001 - 07.2005] JCE10..MTM |
33231-22041 |
from US $38 |
||
|
33231A
|
33231A
90501-10052 Spring, Reverse Shift Restrict[07.2001 - 07.2005] JCE10..MTM |
90501-10052 |
US $1.16 |
||
|
33231B
|
33231B
90360-08009 Ball, Reverse Shift Restrict[07.2001 - 07.2005] JCE10..MTM |
90360-08009 |
US $1.40 |
||
|
33231F
|
33231F
90341-10016 Plug, W/head Straight Screw, No.2[07.2001 - 07.2005] JCE10..MTM |
90341-10016 |
US $1.31 |
||
|
33241
|
33241
33244-53020 Shaft, Reverse Shift Fork[07.2001 - 07.2005] JCE10..MTM |
33244-53020 |
US $30.58 |
||
|
33242
|
33242
33242-53020
Shaft, Gear Shift Fork, No.1
[07.2001 - 07.2005] JCE10..MTM |
33242-53020 |
— | ||
|
33243A
|
33243A
33243-53020 Shaft, Gear Shift Fork, No.2[07.2001 - 07.2005] JCE10..MTM |
33243-53020 |
from US $35.82 |
||
|
33244B
|
33244B
90520-12003 Ring(For Reverse Shift Head)[07.2001 - 07.2005] JCE10..MTM |
90520-12003 |
from US $0.89 |
||
|
33245G
|
33245G
33245-22011 Shaft, Gear Shift Fork, No.4[07.2001 - 07.2005] JCE10..MTM |
33245-22011 |
US $25.33 |
||
|
33251
|
33251
33251-22070
Lever, Shift & Select
[07.2001 - 08.2002] JCE10..MTM |
33251-22070 |
— | ||
| replacements | |||||
|
33251
|
33251
33251-22071 Lever, Shift & Select[07.2001 - 08.2002] JCE10..MTM |
33251-22071 |
US $48.92 |
||
|
33251
|
33251
90109-08305 Pin Or Bolt (For Shift Lever Housing)[07.2001 - 08.2002] JCE10..MTM |
90109-08305 |
US $1.43 |
||
|
33251
|
33251
33251-22071 Lever, Shift & Select[08.2002 - 07.2005] JCE10..MTM |
33251-22071 |
US $48.92 |
||
|
33252A
|
33252A
33252-53010 Lever, Shift, Inner No.2SHIFT, INNER NO.2 [07.2001 - 07.2005] JCE10..MTM |
33252-53010 |
US $16.42 |
||
|
33264
|
33264
33264-22010 Pin, Or Ball, Shift Inter Lock, No.1[07.2001 - 07.2005] JCE10..MTM |
33264-22010 |
US $2.18 |
||
|
33264A
|
33264A
90341-10065 Plug, Straight, No.1[07.2001 - 04.2003] JCE10..MTM L=7.5,OD=15 |
90341-10065 |
US $3.94 |
||
|
33265
|
33265
33265-22010 Pin, Shift Inter Lock, No.2[07.2001 - 07.2005] JCE10..MTM L=11.2,OD=4 |
33265-22010 |
US $1.89 |
||
|
33265
|
33265
33266-22010 Pin, Shift Inter Lock, No.2[07.2001 - 07.2005] JCE10..MTM L=13.6,OD=6 |
33266-22010 |
US $2.04 |
||
|
33265
|
33265
90250-06007 Pin, Shift Inter Lock, No.2[07.2001 - 07.2005] JCE10..MTM L=8.6,OD=6 |
90250-06007 |
from US $1.08 |
||
|
33275
|
33275
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[07.2001 - 07.2005] JCE10..MTM OD=17 |
90341-12014 |
from US $1.97 |
||
|
33275A
|
33275A
90501-13063 Spring, Compression (For Shift Detent Ball Low Side)COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) [07.2001 - 07.2005] JCE10..MTM L=20 |
90501-13063 |
US $1.75 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[07.2001 - 07.2005] JCE10..MTM |
90360-10003 |
from US $1.16 |
||
|
33276
|
33276
90341-12018 Plug, W/head Straight Screw, No.2[07.2001 - 07.2005] JCE10..MTM |
90341-12018 |
US $2.48 |
||
|
33276A
|
33276A
90501-13063 Spring, Compression (For Shift Detent Ball Low Side)COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) [07.2001 - 07.2005] JCE10..MTM |
90501-13063 |
US $1.75 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[07.2001 - 07.2005] JCE10..MTM |
90360-10003 |
from US $1.16 |
||
|
33280
|
33280
33280-30041 Pin Assy, Reverse Restrict[07.2001 - 07.2005] JCE10..MTM RH |
33280-30041 |
US $12.08 |
||
|
33280
|
33280
33280-30051 Pin Assy, Reverse Restrict[07.2001 - 07.2005] JCE10..MTM LH |
33280-30051 |
US $20.16 |
||
|
33280A
|
33280A
90430-18008 Gasket[07.2001 - 07.2005] JCE10..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33280A
|
33280A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2001 - 07.2005] JCE10..MTM |
90430-T0021 |
US $0.99 |
||
|
33280E
|
33280E
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[07.2001 - 07.2005] JCE10..MTM |
90254-05016 |
from US $1.90 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[07.2001 - 07.2005] JCE10..MTM |
90341-10065 |
US $3.94 |
||
|
33283F
|
33283F
33280-30061
Pin Assy, Reverse Restrict
[07.2001 - 07.2005] JCE10..MTM |
33280-30061 |
— | ||
|
33292A
|
33292A
33292-53010 Pin, Lock Ball[07.2001 - 07.2005] JCE10..MTM |
33292-53010 |
US $40.48 |
||
| replacement | |||||
|
33292A
|
33292A
33292-20010 Pin, Lock BallLOCK BALL NO.2 [07.2001 - 07.2005] JCE10..MTM |
33292-20010 |
US $25.33 |
||
|
33521F
|
33521F
90105-08079 Bolt(For 5Th Shift Arm)[07.2001 - 08.2002] JCE10..MTM |
90105-08079 |
from US $0.80 |
||
|
33521F
|
33521F
90109-08305 Pin Or Bolt (For Shift Lever Housing)[08.2002 - 07.2005] JCE10..MTM |
90109-08305 |
US $1.43 |
||
