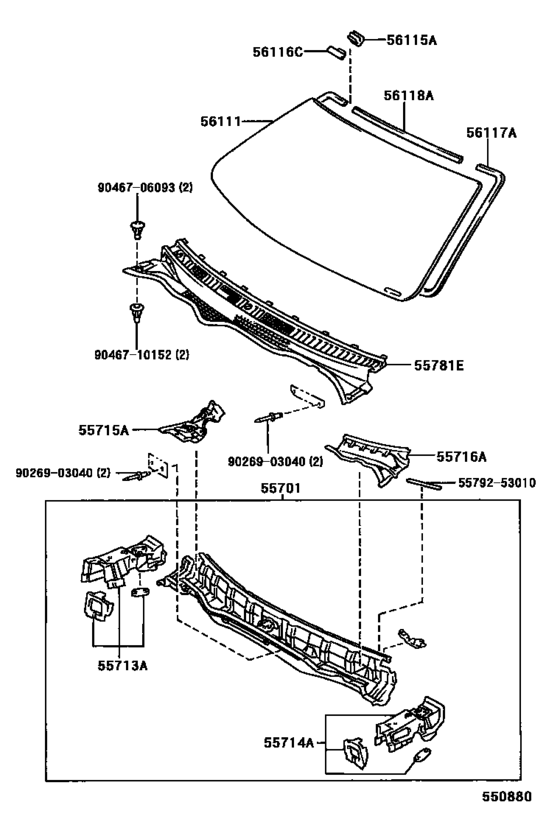

Cowl Panel & Windshield Glass ([01.1999 - ] TYPE B (9901- )RHD) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55701
|
55701
55700-53010
Panel Sub-Assy, Cowl
[07.2001 -] GXE10,JCE10..RHD TYPE A:REFER TO ILLUSTRATION |
55700-53010 |
— | ||
|
55701
|
55701
55700-53030 Panel Sub-Assy, CowlCOWL [07.2001 -] GXE10,JCE10..RHD..EUR TYPE B:REFER TO ILLUSTRATION |
55700-53030 |
US $500.86 |
||
|
55713A
|
55713A
55713-53900 Panel, Cowl Top Side, Rh[07.2001 -] GXE10,JCE10 |
55713-53900 |
US $47.47 |
||
|
55714A
|
55714A
55714-53900 Panel, Cowl Top Side, Lh[07.2001 -] GXE10,JCE10 |
55714-53900 |
US $47.47 |
||
|
55715A
|
55715A
55715-53010 Brace, Cowl Top To Apron, Rh[07.2001 -] GXE10,JCE10..RHD |
55715-53010 |
US $27.78 |
||
|
55716A
|
55716A
55716-53010 Brace, Cowl Top To Apron, Lh[07.2001 -] GXE10,JCE10..RHD |
55716-53010 |
US $51.72 |
||
|
55781E
|
55781E
55708-53020 Louver Sub-Assy, Cowl Top Ventilator[07.2001 - 07.2003] GXE10,JCE10..RHD..EUR |
55708-53020 |
US $136.86 |
||
| replacement | |||||
|
55781E
|
55781E
55708-53021 Louver Sub-Assy, Cowl Top Ventilator[07.2001 - 07.2003] GXE10,JCE10..RHD..EUR |
55708-53021 |
US $136.86 |
||
|
55781E
|
55781E
55708-53021 Louver Sub-Assy, Cowl Top Ventilator[07.2003 -] GXE10,JCE10..RHD..EUR |
55708-53021 |
US $136.86 |
||
|
56111
|
56111
56111-53042 Glass, WindshieldWINDSHIELD [07.2001 -] GXE10,JCE10..RHD..EUR *TL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION |
56111-53042 |
US $1,342.43 |
||
|
56111
|
56111
56111-53052
Glass, Windshield
[07.2001 - 01.2003] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION |
56111-53052 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-53053 Glass, WindshieldWINDSHIELD [07.2001 - 01.2003] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION |
56111-53053 |
US $1,587.04 |
||
|
56111
|
56111
56111-53053 Glass, WindshieldWINDSHIELD [01.2003 -] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE B:REFER TO ILLUSTRATION |
56111-53053 |
US $1,587.04 |
||
|
56111
|
56111
56111-53062 Glass, WindshieldWINDSHIELD [07.2001 - 12.2002] GXE10..WG;JCE10..LHD;GXE10..LHD..SED *TL,T=4.7,GREEN; JCE10..RHD;GXE10..RHD..SED *TL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION |
56111-53062 |
US $1,340.98 |
||
| replacement | |||||
|
56111
|
56111
56111-53063 Glass, WindshieldWINDSHIELD [07.2001 - 12.2002] GXE10..WG;JCE10..LHD;GXE10..LHD..SED *TL,T=4.7,GREEN; JCE10..RHD;GXE10..RHD..SED *TL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION |
56111-53063 |
from US $732.46 |
||
|
56111
|
56111
56111-53063 Glass, WindshieldWINDSHIELD [12.2002 -] GXE10,JCE10 *TL,T=4.7,GREEN |
56111-53063 |
from US $732.46 |
||
|
56111
|
56111
56111-53080
Glass, Windshield
[07.2001 - 01.2003] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION |
56111-53080 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-53081 Glass, WindshieldWINDSHIELD [07.2001 - 01.2003] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION |
56111-53081 |
US $1,587.04 |
||
|
56111
|
56111
56111-53081 Glass, WindshieldWINDSHIELD [01.2003 -] GXE10,JCE10..RHD..EUR *EHTL,T=4.7,GREEN,TYPE A:REFER TO ILLUSTRATION |
56111-53081 |
US $1,587.04 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[07.2001 -] GXE10,JCE10 |
56115-22010 |
from US $1.76 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[07.2001 -] GXE10,JCE10 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-53010
Dam, Window Glass Adhesive
[07.2001 -] GXE10,JCE10 *D,L=2972 |
56117-53010 |
— | ||
| replacement | |||||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[07.2001 -] GXE10,JCE10 *D,L=2972 |
56117-64010 |
from US $22.50 |
||
|
56118A
|
56118A
56118-53010
Dam, Window Glass Adhesive, No.2
[07.2001 -] GXE10,JCE10 L=665 |
56118-53010 |
— | ||
| replacement | |||||
|
56118A
|
56118A
56117-52040
Dam, Window Glass Adhesive
[07.2001 -] GXE10,JCE10 L=665 |
56117-52040 |
— | ||
|
5579253010
|
5579253010
55792-53010 Cover, Wiper Motor Service Hole |
55792-53010 |
US $1.16 |
||
|
9026903040
|
9026903040
90269-03040 RIVET |
90269-03040 |
from US $0.60 |
||
|
9046706093
|
9046706093
90467-06093 CLIP |
90467-06093 |
US $3.20 |
||
|
9046710152
|
9046710152
90467-10152 CLIP |
90467-10152 |
US $1.76 |
||
