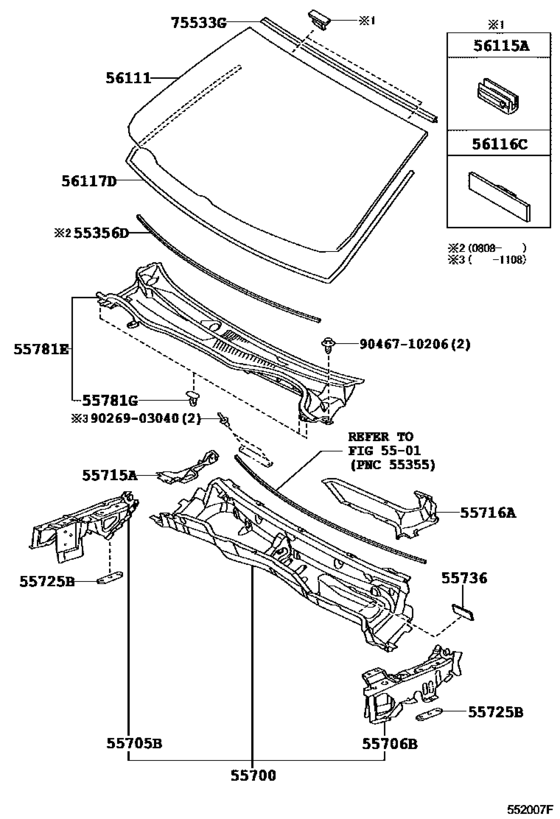

Cowl Panel & Windshield Glass ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Japan
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55356D
|
55356D
55355-53040 Cushion, Instrument Panel, No.2[08.2008 -] USE20 |
55355-53040 |
US $17.56 |
||
|
55700
|
55700
55700-53902 Panel Assy, Front[12.2007 - 08.2011] USE20 |
55700-53902 |
US $623.17 |
||
| replacement | |||||
|
55700
|
55700
55700-53907 Panel Assy, Front[12.2007 - 08.2011] USE20 |
55700-53907 |
US $430.98 |
||
|
55700
|
55700
55700-53907 Panel Assy, Front[08.2011 - 08.2014] USE20 |
55700-53907 |
US $430.98 |
||
|
55705B
|
55705B
55705-53010 Panel Sub-Assy, Cowl Top Side, Rh[12.2007 -] USE20 |
55705-53010 |
from US $39.75 |
||
|
55706B
|
55706B
55706-53010 Panel Sub-Assy, Cowl Top Side, Lh[12.2007 -] USE20 |
55706-53010 |
US $39.75 |
||
|
55715A
|
55715A
55715-53030 Brace, Cowl Top To Apron, Rh[12.2007 -] USE20 |
55715-53030 |
US $19.95 |
||
|
55716A
|
55716A
55716-53030 Brace, Cowl Top To Apron, Lh[12.2007 -] USE20 |
55716-53030 |
US $22.71 |
||
|
55725B
|
55725B
55725-51020 Reinforcement, Hood Hinge Mounting[12.2007 -] USE20 |
55725-51020 |
US $5.39 |
||
|
55736
|
55736
55736-53010 Seal, Water Guard Plate[12.2007 -] USE20 |
55736-53010 |
US $1.60 |
||
|
55781E
|
55781E
55708-53070 Louver Sub-Assy, Cowl Top Ventilator[12.2007 -] USE20 |
55708-53070 |
US $155.02 |
||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[12.2007 -] USE20 |
90467-08108 |
from US $0.18 |
||
|
56111
|
56111
56101-53903
Glass, Windshield
[12.2007 - 08.2009] USE20 ＊ＬＡＭ，Ｔ＝４．７６，グリーン |
56101-53903 |
— | ||
|
56111
|
56111
56101-53906
Glass, Windshield
[12.2007 - 08.2009] USE20 ＊ＥＨＬ，Ｔ＝４．７６，グリーン,寒冷地仕様 |
56101-53906 |
— | ||
|
56111
|
56111
56101-53931
Glass, Windshield
[08.2009 - 07.2012] USE20 ＊ＥＨＬ，Ｔ＝４．７，グリーン,寒冷地仕様 |
56101-53931 |
— | ||
|
56111
|
56111
56101-53932
Glass, Windshield
[08.2009 - 07.2012] USE20 ＊ＬＡＭ，Ｔ＝４．７，グリーン |
56101-53932 |
— | ||
|
56111
|
56111
56101-53951
Glass, Windshield
[08.2012 -] USE20 ＊ＥＨＬ，Ｔ＝４．７，グリーン,寒冷地仕様 |
56101-53951 |
— | ||
|
56111
|
56111
56101-53952
Glass, Windshield
[08.2012 -] USE20 ＊ＬＡＭ，Ｔ＝４．７，グリーン |
56101-53952 |
— | ||
|
56115A
|
56115A
56115-30110 Stopper, Windshield Glass, No.1[12.2007 -] USE20 |
56115-30110 |
from US $1.19 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[12.2007 -] USE20 |
56116-22050 |
from US $1.44 |
||
|
56117D
|
56117D
56117-53020
Dam, Windshield Glass Adhesive
[12.2007 -] USE20 長さ＝２６６５; USE20 長さ＝２６６５,寒冷地仕様 |
56117-53020 |
— | ||
| replacement | |||||
|
56117D
|
56117D
56117-64010 Dam, Window Glass Adhesive[12.2007 -] USE20 長さ＝２６６５; USE20 長さ＝２６６５,寒冷地仕様 |
56117-64010 |
from US $18.49 |
||
|
75533G
|
75533G
75533-53040 Moulding, Windshield, Outside[12.2007 -] USE20 |
75533-53040 |
from US $16.42 |
||
|
9026903040
|
9026903040
90269-03040 RIVET |
90269-03040 |
from US $0.53 |
||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.13 |
||
