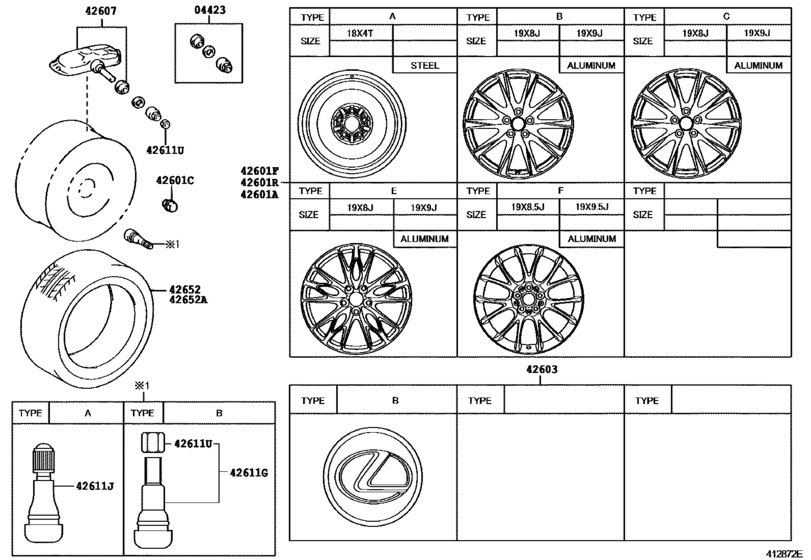

Disc Wheel & Wheel Cap ([11.2007 - ] (0711- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- U.S.A.
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33030
Fitting Kit, Tire Pressure Monitor Or Balancer Valve
[12.2007 -] USE20 |
04423-33030 |
— | ||
| replacement | |||||
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[12.2007 -] USE20 |
04423-33060 |
from US $4.48 |
||
|
42601A
|
42601A
42611-53200
Wheel, Disc (For Spare)
[08.2009 -] USE20 18X4T,TYPE A:REFER ILLUST. |
42611-53200 |
— | ||
|
42601A
|
42601A
42611-53210 Wheel, Disc (For Spare)[12.2007 - 07.2009] USE20 18X4T,TYPE A:REFER ILLUST. |
42611-53210 |
US $148.51 |
||
|
42601C
|
42601C
90942-01033 Nut, Hub (For Axle)[12.2007 - 08.2014] USE20 |
90942-01033 |
from US $3.20 |
||
|
42601F
|
42601F
42611-53180 Wheel, Disc (For Front)[12.2007 -] USE20 19X8J,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,LH,TYPE B:REF.ILL. |
42611-53180 |
US $2,344.16 |
||
|
42601F
|
42601F
42611-53190 Wheel, Disc (For Front)[12.2007 -] USE20 19X8J,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,RH,TYPE C:REF.ILL. |
42611-53190 |
US $2,344.16 |
||
|
42601F
|
42601F
4261A-53010 Wheel, Disc (For Front)[12.2007 - 08.2009] USE20 19X8J,LH,TYPE B:REF.ILL. |
4261A-53010 |
US $2,227.68 |
||
|
42601F
|
42601F
4261A-53020 Wheel, Disc (For Front)[12.2007 - 08.2009] USE20 19X8J,RH,TYPE C:REF.ILL. |
4261A-53020 |
US $2,227.68 |
||
|
42601F
|
42601F
4261A-53190 Wheel, Disc (For Front)DISC (FOR FRONT) [08.2009 -] USE20 19X8J,TYPE E:REFER ILLUST. |
4261A-53190 |
US $2,227.68 |
||
|
42601F
|
42601F
4261A-53270 Wheel, Disc[08.2011 -] USE20 19X8.5J,KOREA SPEC&TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER I LLUST.; USE20 19X8.5J,TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER ILLUST. |
4261A-53270 |
US $2,242.24 |
||
|
42601R
|
42601R
42611-53220 Wheel, Disc (For Rear)[12.2007 -] USE20 19X9J,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,LH,TYPE B:REF.ILL. |
42611-53220 |
US $2,824.64 |
||
|
42601R
|
42601R
42611-53230 Wheel, Disc (For Rear)[12.2007 -] USE20 19X9J,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,RH,TYPE C:REF.ILL. |
42611-53230 |
US $2,824.64 |
||
|
42601R
|
42601R
4261A-53030 Wheel, Disc (For Rear)[12.2007 - 08.2009] USE20 19X9J,LH,TYPE B:REF.ILL. |
4261A-53030 |
US $2,708.16 |
||
|
42601R
|
42601R
4261A-53040 Wheel, Disc (For Rear)[12.2007 - 08.2009] USE20 19X9J,RH,TYPE C:REF.ILL. |
4261A-53040 |
US $2,708.16 |
||
|
42601R
|
42601R
4261A-53200 Wheel, Disc (For Rear)DISC (FOR REAR) [08.2009 -] USE20 19X9J,TYPE E:REFER ILLUST. |
4261A-53200 |
US $2,708.16 |
||
|
42601R
|
42601R
4261A-53280 Wheel, Disc (For Rear)[08.2011 -] USE20 19X9.5J,KOREA SPEC&TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER I LLUST.; USE20 19X9.5J,TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER ILLUST. |
4261A-53280 |
US $2,722.72 |
||
|
42603
|
42603
42603-53110 Ornament Sub-Assy, Wheel Hub[12.2007 -] USE20 *ALU,TYPE B:REFER ILLUST. |
42603-53110 |
from US $20.37 |
||
|
42607
|
42607
42607-33021
Valve Sub-Assy, Tire Pressure Monitor
[12.2007 -] USE20 |
42607-33021 |
— | ||
| replacement | |||||
|
42607
|
42607
42607-33022 Valve Sub-Assy, Tire Pressure Monitor[12.2007 -] USE20 |
42607-33022 |
from US $125.66 |
||
|
42611G
|
42611G
90942-05028 Valve (For Tubeless Tire)[08.2010 -] USE20 KOREA SPEC,TYPE B:REFER ILLUST.; USE20 KOREA SPEC&TIRE & DISC WHEEL-225/40R19+255/35R19 ALUMINUM(10-SPOKE),TYPE B:REFER I LLUST.; USE20 KOREA SPEC&TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,TYPE B:REFER ILLUST. |
90942-05028 |
from US $6.08 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[12.2007 -] USE20 TYPE A:REFER ILLUST. |
90942-05009 |
from US $6.24 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[12.2007 -] USE20 TYPE A:REFER ILLUST. |
90080-94031 |
US $1.62 |
||
|
42611U
|
42611U
90942-05029 Cap, Tire Valve[08.2010 -] USE20 KOREA SPEC; USE20 KOREA SPEC&TIRE & DISC WHEEL-225/40R19+255/35R19 ALUMINUM(10-SPOKE); USE20 KOREA SPEC&TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM |
90942-05029 |
from US $2.24 |
||
|
42611U
|
42611U
90942-05037 Cap, Tire Valve[12.2007 -] USE20 |
90942-05037 |
from US $3.36 |
||
|
42652
|
42652
42652-53511
Tire
[08.2010 - 08.2014] USE20 225/40R19 *B/S,KOREA SPEC |
42652-53511 |
— | ||
|
42652
|
42652
42652-53521
Tire
[08.2010 - 08.2014] USE20 255/35R19 *B/S,KOREA SPEC |
42652-53521 |
— | ||
|
42652
|
42652
42652-53530
Tire
[08.2010 - 08.2014] USE20 225/40R19 MICHELIN,KOREA SPEC |
42652-53530 |
— | ||
|
42652
|
42652
42652-53540
Tire
[08.2010 - 08.2014] USE20 255/35R19 MICHELIN,KOREA SPEC |
42652-53540 |
— | ||
|
42652A
|
42652A
42652-53550
Tire (For Spare)
[08.2010 - 08.2014] USE20 T135/70R18 *B/S,KOREA SPEC; USE20 T135/70R18 *B/S,KOREA SPEC&TIRE & DISC WHEEL-225/40R19+255/35R19 ALUMINUM(10-SPOKE ); USE20 T135/70R18 *B/S,KOREA SPEC&TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM |
42652-53550 |
— | ||
