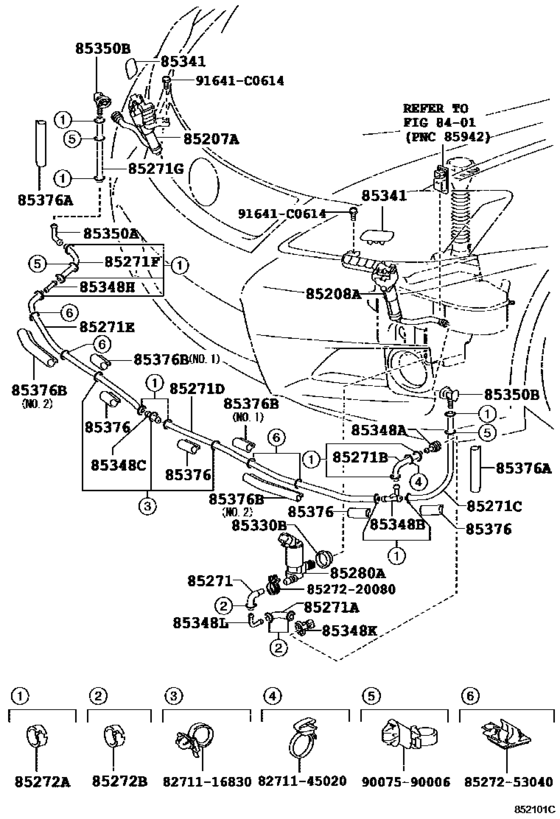

Headlamp Cleaner ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- U.S.A.
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85207A
|
85207A
85207-53050
Actuator Sub-Assy, Headlamp Washer, Rh
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
85207-53050 |
— | ||
|
85208A
|
85208A
85208-53050
Actuator Sub-Assy, Headlamp Washer, Lh
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
85208-53050 |
— | ||
|
85271
|
85271
90075-15047
Hose, Headlamp Cleaner, No.1
[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
90075-15047 |
— | ||
|
85271A
|
85271A
85343-95700 Hose, Headlamp Cleaner, No.3[12.2007 -] USE20 L=135,HEAD LAMP CLEANER-WITH |
85343-95700 |
US $12.08 |
||
|
85271B
|
85271B
90075-15040 Hose, Headlamp Cleaner(From Motor To Joint)HEADLAMP CLEANER, NO.3 [12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
90075-15040 |
US $3.06 |
||
|
85271C
|
85271C
85375-22150 Hose, Headlamp Cleaner, No.4HEADLAMP CLEANER, NO.2 [12.2007 -] USE20 L=300,HEAD LAMP CLEANER-WITH |
85375-22150 |
US $11.21 |
||
|
85271D
|
85271D
90075-15018
Hose, Headlamp Cleaner, No.3
[12.2007 -] USE20 *H,L=715,HEAD LAMP CLEANER-WITH |
90075-15018 |
— | ||
| replacement | |||||
|
85271D
|
85271D
90445-14042 Hose, Headlamp Cleaner, No.5[12.2007 -] USE20 *H,L=715,HEAD LAMP CLEANER-WITH |
90445-14042 |
US $16.89 |
||
|
85271E
|
85271E
85275-60180
Hose, Headlamp Cleaner, No.6
[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85275-60180 |
— | ||
|
85271F
|
85271F
85275-42020 Hose, Headlamp Cleaner, No.3[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85275-42020 |
US $5.68 |
||
|
85271G
|
85271G
90445-14046 Hose, Headlamp Cleaner Washer (From Joint To Nozzle)HEADLAMP CLEANER, NO.7 [12.2007 -] USE20 L=140,HEAD LAMP CLEANER-WITH |
90445-14046 |
US $5.97 |
||
|
85272A
|
85272A
85273-20020 Clamp, Headlamp Cleaner, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85273-20020 |
from US $1.97 |
||
|
85272B
|
85272B
85273-20020 Clamp, Headlamp Cleaner, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85273-20020 |
from US $1.97 |
||
|
85280A
|
85280A
85280-30040 Motor And Pump Assy, Headlamp Cleaner[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
85280-30040 |
from US $125.80 |
||
|
85330B
|
85330B
90099-32089 Bush, Headlamp Cleaner Washer Jar[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330B
|
85330B
90099320891
Grommet
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
90099320891 |
— | ||
|
85330B
|
85330B
90068-32002 Bush, Windshield Washer Jar[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH |
90068-32002 |
US $7.46 |
||
|
85341
|
85341
85381-53090-A0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2012] USE20 HEAD LAMP CLEANER-WITH,WHITE PEARL CS.,077,RH |
85381-53090-A0 |
— | ||
|
85341
|
85341
85381-53090-A1
Nozzle, Headlamp Cleaner Washer
[08.2012 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,WHITE NOVA GF.,083,RH |
85381-53090-A1 |
— | ||
|
85341
|
85341
85381-53090-B0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2012] USE20 HEAD LAMP CLEANER-WITH,PREMIUM SILVER,1F2,RH |
85381-53090-B0 |
— | ||
|
85341
|
85341
85381-53090-B1
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2011] USE20 HEAD LAMP CLEANER-WITH,DK.GRAY MC.,1G0,RH |
85381-53090-B1 |
— | ||
|
85341
|
85341
85381-53090-B2
Nozzle, Headlamp Cleaner Washer
[08.2011 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH |
85381-53090-B2 |
— | ||
|
85341
|
85341
85381-53090-B3
Nozzle, Headlamp Cleaner Washer
[08.2012 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,SONIC SILVER,1J2,RH |
85381-53090-B3 |
— | ||
|
85341
|
85341
85381-53090-C0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,BLACK,212,RH |
85381-53090-C0 |
— | ||
|
85341
|
85341
85381-53090-C1
Nozzle, Headlamp Cleaner Washer
[08.2010 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,RH |
85381-53090-C1 |
— | ||
|
85341
|
85341
85381-53090-D0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,RED MC.CS.,3R1,RH |
85381-53090-D0 |
— | ||
|
85341
|
85341
85381-53090-J0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,BLUE ME. CC.,8U1,RH |
85381-53090-J0 |
— | ||
|
85341
|
85341
85382-53050-A0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2012] USE20 HEAD LAMP CLEANER-WITH,WHITE PEARL CS.,077,LH |
85382-53050-A0 |
— | ||
|
85341
|
85341
85382-53050-A1
Nozzle, Headlamp Cleaner Washer
[08.2012 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,WHITE NOVA GF.,083,LH |
85382-53050-A1 |
— | ||
|
85341
|
85341
85382-53050-B0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2012] USE20 HEAD LAMP CLEANER-WITH,PREMIUM SILVER,1F2,LH |
85382-53050-B0 |
— | ||
|
85341
|
85341
85382-53050-B1
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2011] USE20 HEAD LAMP CLEANER-WITH,DK.GRAY MC.,1G0,LH |
85382-53050-B1 |
— | ||
|
85341
|
85341
85382-53050-B2
Nozzle, Headlamp Cleaner Washer
[08.2011 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH |
85382-53050-B2 |
— | ||
|
85341
|
85341
85382-53050-B3
Nozzle, Headlamp Cleaner Washer
[08.2012 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,SONIC SILVER,1J2,LH |
85382-53050-B3 |
— | ||
|
85341
|
85341
85382-53050-C0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,BLACK,212,LH |
85382-53050-C0 |
— | ||
|
85341
|
85341
85382-53050-C1
Nozzle, Headlamp Cleaner Washer
[08.2010 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,STARLIGHT BLACK GF.,217,LH |
85382-53050-C1 |
— | ||
|
85341
|
85341
85382-53050-D0
Nozzle, Headlamp Cleaner Washer
[12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,RED MC.CS.,3R1,LH |
85382-53050-D0 |
— | ||
|
85341
|
85341
85382-53050-J0 Nozzle, Headlamp Cleaner WasherHEADLAMP CLEANER WASHER [12.2007 - 08.2014] USE20 HEAD LAMP CLEANER-WITH,BLUE ME. CC.,8U1,LH |
85382-53050-J0 |
US $19.32 |
||
|
85348A
|
85348A
85279-33040 Joint, Headlamp Cleaner Hose, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85279-33040 |
from US $5.66 |
||
|
85348B
|
85348B
85287-53060 Joint, Headlamp Cleaner Elbow, No.2HEADLAMP CLEANER HOSE, NO.2 [12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85287-53060 |
from US $9.17 |
||
|
85348C
|
85348C
85379-89131 Joint, Headlamp Cleaner Hose, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85379-89131 |
from US $2.16 |
||
|
85348H
|
85348H
85379-89131 Joint, Headlamp Cleaner Hose, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85379-89131 |
from US $2.16 |
||
|
85348K
|
85348K
85279-48020 Joint, Headlamp Cleaner Elbow, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85279-48020 |
from US $3.72 |
||
|
85348L
|
85348L
85379-22080 Joint, Headlamp Cleaner Hose, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85379-22080 |
from US $4.80 |
||
|
85350A
|
85350A
85379-22080 Joint, Headlamp Cleaner Hose, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85379-22080 |
from US $4.80 |
||
|
85350B
|
85350B
85279-48020 Joint, Headlamp Cleaner Elbow, No.1[12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85279-48020 |
from US $3.72 |
||
|
85376
|
85376
85277-12080
Protector, Headlamp Cleaner Hose, No.1
[12.2007 - 08.2008] USE20 HEAD LAMP CLEANER-WITH |
85277-12080 |
— | ||
| replacement | |||||
|
85376
|
85376
85277-50040 Protector, Headlamp Cleaner Hose, No.1[12.2007 - 08.2008] USE20 HEAD LAMP CLEANER-WITH |
85277-50040 |
from US $6.63 |
||
|
85376
|
85376
85277-50040 Protector, Headlamp Cleaner Hose, No.1[08.2008 -] USE20 HEAD LAMP CLEANER-WITH |
85277-50040 |
from US $6.63 |
||
|
85376A
|
85376A
85277-53060 Protector, Headlamp Cleaner Hose, No.1HEADLAMP CLEANER HOSE, NO.2 [12.2007 -] USE20 HEAD LAMP CLEANER-WITH |
85277-53060 |
US $5.92 |
||
|
85376B
|
85376B
85275-53060 Protector, Headlamp Cleaner Hose, No.1HEADLAMP CLEANER HOSE, NO.3 [12.2007 -] USE20 HEAD LAMP CLEANER-WITH,NO.1 |
85275-53060 |
US $17.91 |
||
|
85376B
|
85376B
85276-53060 Protector, Headlamp Cleaner Hose, No.3HEADLAMP CLEANER HOSE, NO.3 [12.2007 -] USE20 HEAD LAMP CLEANER-WITH,NO.2 |
85276-53060 |
US $11.56 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
8271145020
|
8271145020
82711-45020 Clamp, Headlamp Cleaner, No.1 |
82711-45020 |
US $3.04 |
||
|
8527220080
|
8527220080
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.93 |
||
|
8527253040
|
8527253040
85272-53040
Cable Sub-assy, Headlamp Cleaner, Rh
|
85272-53040 |
— | ||
|
9007590006
|
9007590006
90075-90006 Clamp, Headlamp Cleaner, No.1 |
90075-90006 |
US $2.72 |
||
