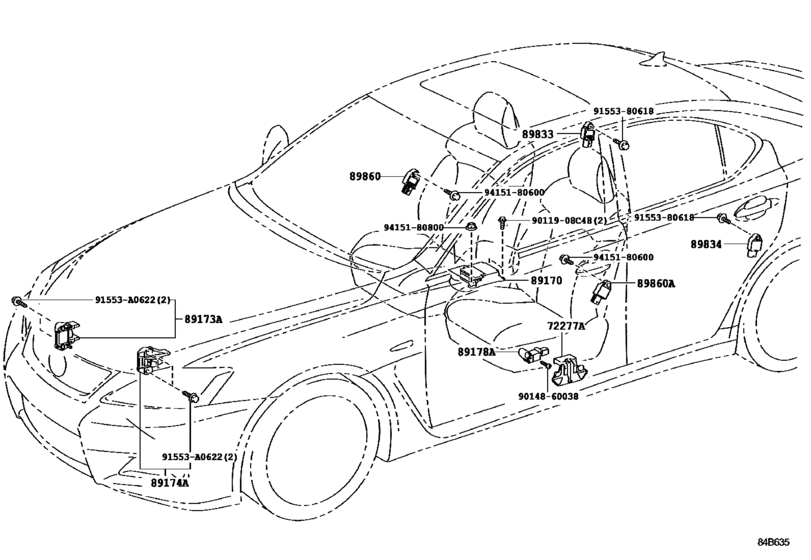

Air Bag ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[08.2010 - 08.2014] USE20 |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-53290
Sensor Assy, Air Bag
[08.2010 -] USE20 |
89170-53290 |
— | ||
|
89173A
|
89173A
89173-39385 Sensor, Air Bag, Front Rh[08.2010 -] USE20 |
89173-39385 |
from US $122.30 |
||
|
89174A
|
89174A
89173-39385 Sensor, Air Bag, Front Rh[08.2010 -] USE20 |
89173-39385 |
from US $122.30 |
||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[08.2010 - 08.2014] USE20 |
89178-33050 |
from US $40.36 |
||
|
89833
|
89833
89831-33020 Sensor, Air Bag, Rear Rh[08.2010 - 08.2014] USE20 |
89831-33020 |
US $122.30 |
||
|
89834
|
89834
89831-33020 Sensor, Air Bag, Rear Rh[08.2010 - 08.2014] USE20 |
89831-33020 |
US $122.30 |
||
|
89860
|
89860
89831-33010 Sensor Assy, Side Air Bag, Rh[08.2010 - 08.2014] USE20 |
89831-33010 |
US $110.66 |
||
|
89860A
|
89860A
89831-33010 Sensor Assy, Side Air Bag, Rh[08.2010 - 08.2014] USE20 |
89831-33010 |
US $110.66 |
||
|
91553A0622
|
91553A0622
91553-A0622 New Genuine Part |
91553-A0622 |
US $0.96 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
9014860038
|
9014860038
90148-60038 New Genuine Part |
90148-60038 |
US $0.87 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
