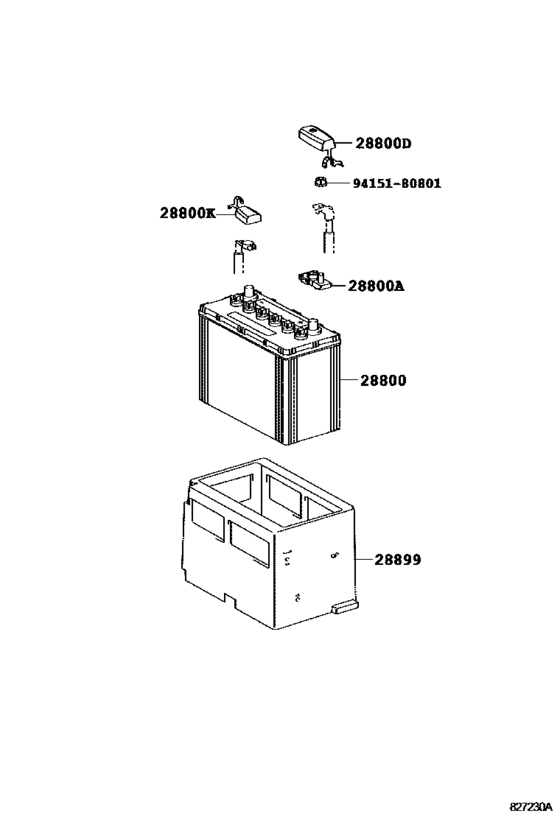

Battery & Battery Cable ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-38100
Battery
[08.2010 - 08.2014] 2URGSE..USE20 80D26R |
28800-38100 |
— | ||
|
28800A
|
28800A
90982-05062 Terminal, Battery Positive[08.2010 -] 2URGSE..USE20 |
90982-05062 |
from US $15.23 |
||
|
28800D
|
28800D
82821-50470 Cover, Connector(For Battery Terminal)[08.2010 -] 2URGSE..USE20 |
82821-50470 |
US $8.91 |
||
|
28800K
|
28800K
82821-30760 Cover, Connector(For Battery Terminal Negative)[08.2010 -] 2URGSE..USE20 |
82821-30760 |
US $5.92 |
||
|
28899
|
28899
28899-38070
Insulator, Battery
[08.2010 -] 2URGSE..USE20 |
28899-38070 |
— | ||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.76 |
