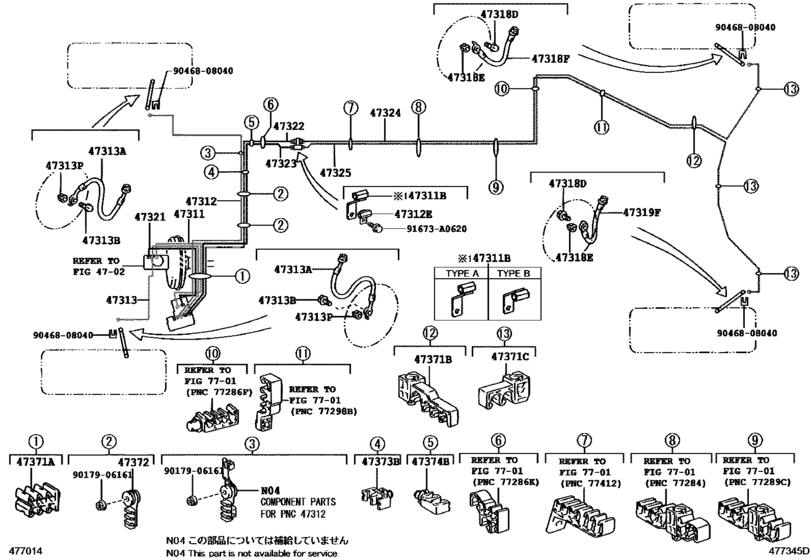

Brake Tube & Clamp ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-53190
Tube, Front Brake, No.1
[08.2010 -] USE20 |
47311-53190 |
— | ||
|
47311B
|
47311B
90412-10250 Way, No.1(For Front Brake Tube)[08.2010 - 09.2013] USE20 TYPE A:REFER ILLUST. |
90412-10250 |
US $12.75 |
||
|
47311B
|
47311B
90412-10297 Way, No.1(For Front Brake Tube)[09.2013 -] USE20 TYPE B:REFER ILLUST. |
90412-10297 |
US $7.86 |
||
|
47312
|
47312
47312-53240
Tube, Front Brake, No.2
[08.2010 -] USE20 |
47312-53240 |
— | ||
|
47312E
|
47312E
90412-10278
Way, No.2(For Front Brake Tube)
[08.2010 - 09.2013] USE20 |
90412-10278 |
— | ||
|
47312E
|
47312E
90412-10292 Way, No.1(For Front Brake Tube)[09.2013 -] USE20 |
90412-10292 |
US $6.29 |
||
|
47313
|
47313
47313-53240
Tube, Front Brake, No.3
[08.2010 -] USE20 |
47313-53240 |
— | ||
|
47313A
|
47313A
90947-02F81 Hose, Flexible, No.1(For Front)[08.2010 -] USE20 |
90947-02F81 |
US $18.35 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[08.2010 -] USE20 |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[08.2010 -] USE20 |
47389-50020 |
from US $4.79 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[08.2010 -] USE20 |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[08.2010 -] USE20 |
47389-50020 |
from US $4.79 |
||
|
47318F
|
47318F
90947-02F82 Hose, Flexible(For Rear Rh)[08.2010 -] USE20 |
90947-02F82 |
US $18.35 |
||
|
47319F
|
47319F
90947-02F82 Hose, Flexible(For Rear Rh)[08.2010 -] USE20 |
90947-02F82 |
US $18.35 |
||
|
47321
|
47321
47321-53160
Tube, Rear Brake, No.1
[08.2010 -] USE20 |
47321-53160 |
— | ||
|
47322
|
47322
47322-53220
Tube, Rear Brake, No.2
[08.2010 - 09.2013] USE20 |
47322-53220 |
— | ||
|
47322
|
47322
47322-53221
Tube, Rear Brake, No.2
[09.2013 -] USE20 |
47322-53221 |
— | ||
|
47323
|
47323
47323-53200
Tube, Rear Brake, No.3
[08.2010 - 09.2013] USE20 |
47323-53200 |
— | ||
|
47323
|
47323
47323-53201
Tube, Rear Brake, No.3
[09.2013 -] USE20 |
47323-53201 |
— | ||
|
47324
|
47324
47324-53070 Tube, Rear Brake, No.4[08.2010 - 09.2013] USE20 |
47324-53070 |
US $39.75 |
||
|
47324
|
47324
47324-53071 Tube, Rear Brake, No.4[09.2013 -] USE20 |
47324-53071 |
US $39.75 |
||
|
47325
|
47325
47325-53060 Tube, Rear Brake, No.5[08.2010 - 09.2013] USE20 |
47325-53060 |
US $35.09 |
||
|
47325
|
47325
47325-53061 Tube, Rear Brake, No.5[09.2013 -] USE20 |
47325-53061 |
US $35.09 |
||
|
47371A
|
47371A
90949-01C51 Clamp, Brake Tube, No.1[08.2010 -] USE20 |
90949-01C51 |
US $4.37 |
||
|
47371B
|
47371B
90949-01D09 Clamp, Brake Tube, No.6[08.2010 -] USE20 |
90949-01D09 |
US $2.77 |
||
|
47371C
|
47371C
90949-01D11 Clamp, Brake Tube, No.6[08.2010 -] USE20 |
90949-01D11 |
US $3.05 |
||
|
47372
|
47372
90949-04037 Clamp, Brake Tube, No.6BRAKE TUBE, NO.2 [08.2010 -] USE20 |
90949-04037 |
US $8.69 |
||
|
47373B
|
47373B
90949-01D12 Clamp(For Clutch Master Cylinder Tube)[08.2010 -] USE20 |
90949-01D12 |
US $1.97 |
||
|
47374B
|
47374B
90949-01D13 Clamp, Brake Tube, No.9[08.2010 -] USE20 |
90949-01D13 |
US $1.97 |
||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.65 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
