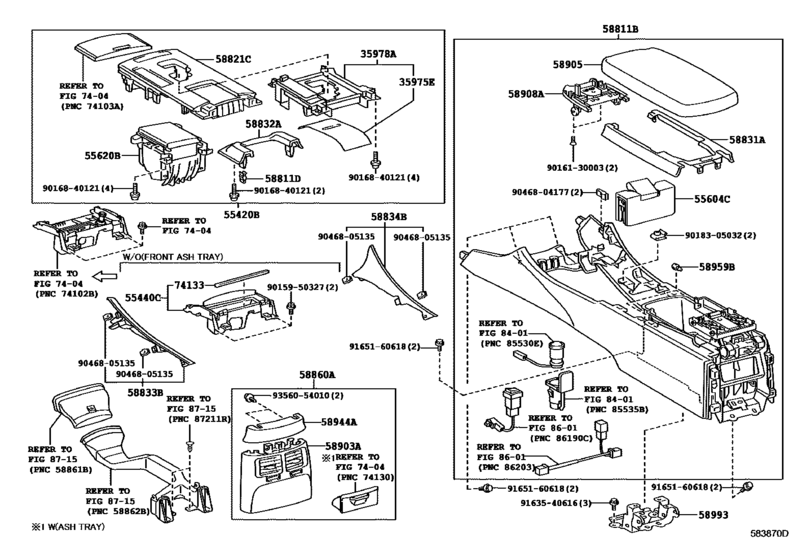

Console Box & Bracket ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35975E
|
35975E
35975-53020 Cover, Slide (For Position Indicator)[08.2010 -] USE20 |
35975-53020 |
from US $16.57 |
||
|
35978A
|
35978A
35978-53060
Indicator, Shift Position
[08.2010 -] USE20 |
35978-53060 |
— | ||
|
55420B
|
55420B
55420-53070-C0
Panel Assy, Instrument Cluster Finish, Center No.1
[08.2010 - 08.2014] USE20 INTERIOR PACKAGE,BLACK/DARK SILVER,TRIM2# |
55420-53070-C0 |
— | ||
|
55420B
|
55420B
55420-53101-C0
Panel Assy, Instrument Cluster Finish, Center No.1
[08.2010 - 08.2014] USE20 BLACK/WHITE,TRIM2# |
55420-53101-C0 |
— | ||
|
55440C
|
55440C
55441-53070 Box Assy, Instrument Panel[08.2010 - 08.2012] USE20 |
55441-53070 |
US $81.54 |
||
| replacement | |||||
|
55440C
|
55440C
55441-53080 Box Assy, Instrument Panel[08.2010 - 08.2012] USE20 |
55441-53080 |
US $67.56 |
||
|
55440C
|
55440C
55441-53080 Box Assy, Instrument Panel[08.2012 -] USE20 |
55441-53080 |
US $67.56 |
||
|
55604C
|
55604C
55604-53070 Holder Sub-Assy, Console Box Cup[08.2010 -] USE20 |
55604-53070 |
US $19.60 |
||
|
55620B
|
55620B
55620-53080-A0 Holder, Instrument Panel Cup[08.2010 - 08.2014] USE20 WHITE,TRIM2# |
55620-53080-A0 |
US $256.26 |
||
|
55620B
|
55620B
55620-53120-B0 Holder, Instrument Panel Cup[08.2010 - 08.2014] USE20 INTERIOR PACKAGE,DARK SILVER,TRIM2# |
55620-53120-B0 |
US $311.58 |
||
|
58811B
|
58811B
58810-53170-C0
Box, Console
[09.2013 - 08.2014] USE20 BLACK/BLUE,TRIM2# |
58810-53170-C0 |
— | ||
|
58811B
|
58811B
58810-53290-22 Box, Console[08.2010 - 09.2013] USE20 BLACK/BLUE,TRIM2# |
58810-53290-22 |
US $939.12 |
||
|
58811D
|
58811D
90467-10203 Direct[08.2010 -] USE20 |
90467-10203 |
from US $0.64 |
||
|
58821C
|
58821C
58821-53170-A0
Panel, Console, Upper
[08.2010 - 08.2014] USE20 WHITE,TRIM2# |
58821-53170-A0 |
— | ||
|
58821C
|
58821C
58821-53260-B0
Panel, Console, Upper
[08.2010 - 08.2014] USE20 INTERIOR PACKAGE,DARK SILVER,TRIM2# |
58821-53260-B0 |
— | ||
|
58831A
|
58831A
58831-53010-C0 Garnish, Console Upper Panel, Front[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58831-53010-C0 |
US $30.14 |
||
|
58832A
|
58832A
58832-53010-C0 Garnish, Console Upper Panel, Rear[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58832-53010-C0 |
US $14.71 |
||
|
58833B
|
58833B
58833-53010 Garnish, Console Upper Panel, No.1[08.2010 -] USE20 |
58833-53010 |
US $24.36 |
||
|
58834B
|
58834B
58834-53010 Garnish, Console Upper Panel, No.2[08.2010 -] USE20 |
58834-53010 |
US $24.36 |
||
|
58860A
|
58860A
58860-53010-C0 Register Assy, Console Box[08.2010 - 08.2014] USE20 ASH TRAY-WITH(FRONT & REAR),BLACK,TRIM2# |
58860-53010-C0 |
US $88.82 |
||
|
58860A
|
58860A
58860-53020-C0 Register Assy, Console Box[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58860-53020-C0 |
US $60.28 |
||
|
58903A
|
58903A
58903-53010-C0 Panel Sub-Assy, Console Rear End[08.2010 - 08.2014] USE20 ASH TRAY-WITH(FRONT & REAR),BLACK,TRIM2# |
58903-53010-C0 |
US $64.79 |
||
|
58903A
|
58903A
58903-53020-C0 Panel Sub-Assy, Console Rear End[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58903-53020-C0 |
US $36.11 |
||
|
58905
|
58905
58905-53090-C6 Door Sub-Assy, Console Compartment[08.2010 - 09.2013] USE20 BLACK/BLUE,TRIM2# |
58905-53090-C6 |
US $374.19 |
||
|
58905
|
58905
58905-53120-C0 Door Sub-Assy, Console Compartment[09.2013 - 08.2014] USE20 BLACK/BLUE,TRIM2# |
58905-53120-C0 |
US $400.33 |
||
|
58908A
|
58908A
58908-53041-C3 Lock Sub-Assy, Console Compartment Door[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58908-53041-C3 |
US $53.73 |
||
|
58944A
|
58944A
58944-53010-C0 Cover, Console, Rear[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
58944-53010-C0 |
US $24.46 |
||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[08.2010 -] USE20 |
58959-60060 |
from US $1.16 |
||
|
58993
|
58993
58993-53050
Bracket, Console Box Mounting, Rear
[08.2010 -] USE20 |
58993-53050 |
— | ||
|
74133
|
74133
74133-30140 Seal, Ash Receptacle Door[08.2010 -] USE20 |
74133-30140 |
US $0.87 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9016840121
|
9016840121
90168-40121 New Genuine Part |
90168-40121 |
US $1.24 |
||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.16 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
