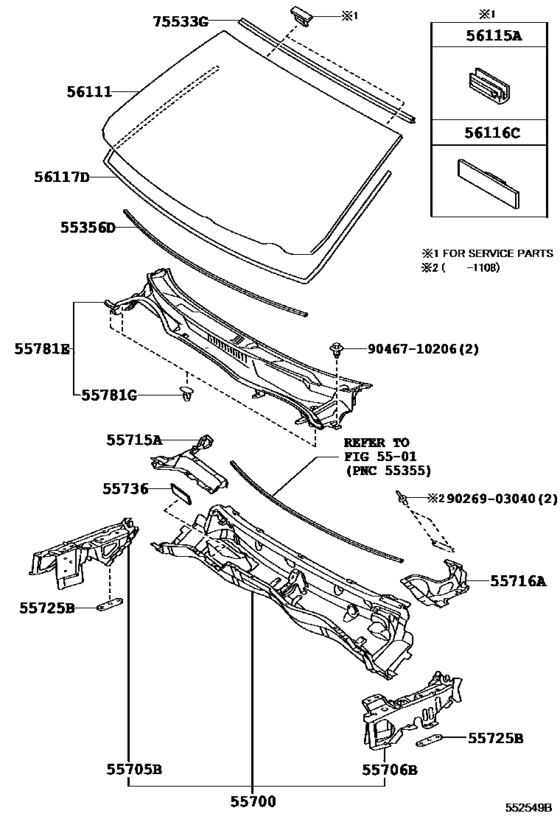

Cowl Panel & Windshield Glass ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55356D
|
55356D
55355-53040 Cushion, Instrument Panel, No.2[08.2010 -] USE20 |
55355-53040 |
US $17.56 |
||
|
55700
|
55700
55700-53901
Panel Assy, Front
[08.2010 - 08.2011] USE20 |
55700-53901 |
— | ||
| replacement | |||||
|
55700
|
55700
55700-53906
Panel Assy, Front
[08.2010 - 08.2011] USE20 |
55700-53906 |
— | ||
|
55700
|
55700
55700-53906
Panel Assy, Front
[08.2011 - 08.2014] USE20 |
55700-53906 |
— | ||
|
55705B
|
55705B
55705-53010 Panel Sub-Assy, Cowl Top Side, Rh[08.2010 -] USE20 |
55705-53010 |
from US $39.75 |
||
|
55706B
|
55706B
55706-53010 Panel Sub-Assy, Cowl Top Side, Lh[08.2010 -] USE20 |
55706-53010 |
US $39.75 |
||
|
55715A
|
55715A
55715-53040 Brace, Cowl Top To Apron, RhCOWL TOP TO APRON, RH [08.2010 -] USE20 |
55715-53040 |
from US $22.86 |
||
|
55716A
|
55716A
55716-53040 Brace, Cowl Top To Apron, LhCOWL TOP TO APRON, LH [08.2010 -] USE20 |
55716-53040 |
US $19.95 |
||
|
55725B
|
55725B
55725-51020 Reinforcement, Hood Hinge Mounting[08.2010 -] USE20 |
55725-51020 |
US $5.39 |
||
|
55736
|
55736
55736-53010 Seal, Water Guard Plate[08.2010 -] USE20 |
55736-53010 |
US $1.60 |
||
|
55781E
|
55781E
55708-53090
Louver Sub-Assy, Cowl Top Ventilator
[08.2010 -] USE20 |
55708-53090 |
— | ||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[08.2010 -] USE20 |
90467-08108 |
from US $0.18 |
||
|
56111
|
56111
56101-53933
Glass, Windshield
[08.2010 - 07.2012] USE20 *LAM,T=4.7,GREEN |
56101-53933 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-53954
Glass, Windshield
[08.2010 - 07.2012] USE20 *LAM,T=4.7,GREEN |
56101-53954 |
— | ||
|
56111
|
56111
56101-53954
Glass, Windshield
[08.2012 -] USE20 *LAM,T=4.7,GREEN |
56101-53954 |
— | ||
|
56115A
|
56115A
56115-30110 Stopper, Windshield Glass, No.1[08.2010 -] USE20 |
56115-30110 |
from US $1.19 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[08.2010 -] USE20 |
56116-22050 |
from US $1.44 |
||
|
56117D
|
56117D
56117-64010 Dam, Window Glass Adhesive[08.2010 -] USE20 L=2665 |
56117-64010 |
from US $18.49 |
||
|
75533G
|
75533G
75533-53040 Moulding, Windshield, Outside[08.2010 -] USE20 |
75533-53040 |
from US $16.42 |
||
|
9026903040
|
9026903040
90269-03040 RIVET |
90269-03040 |
from US $0.53 |
||
|
9046710206
|
9046710206
90467-10206 Clip, Front Fender Liner, No.3 |
90467-10206 |
from US $1.13 |
||
