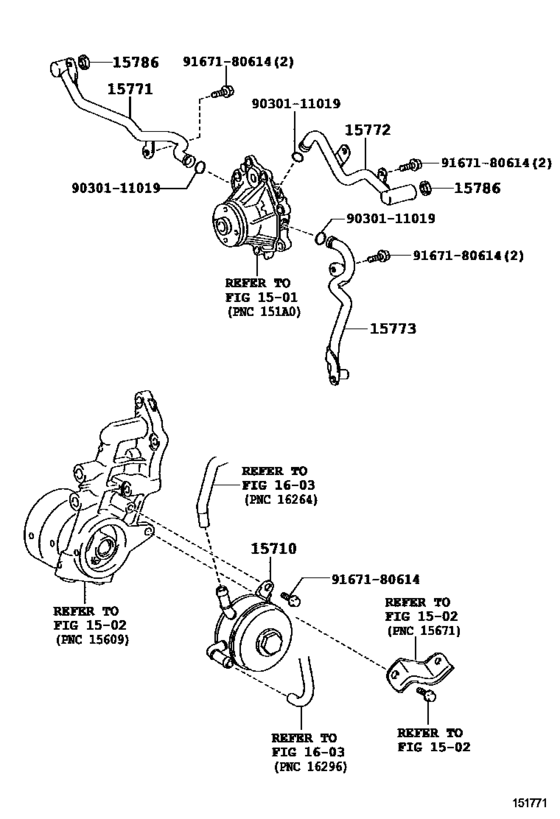

Engine Oil Cooler ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15700-38030 Cooler Assy, Oil[08.2010 -] 2URGSE..USE20 |
15700-38030 |
US $560.56 |
||
|
15771
|
15771
15771-38010 Pipe, Oil, No.1[08.2010 -] 2URGSE..USE20 |
15771-38010 |
US $40.33 |
||
|
15772
|
15772
15772-38010 Pipe, Oil, No.2[08.2010 -] 2URGSE..USE20 |
15772-38010 |
US $25.48 |
||
|
15773
|
15773
15773-38020 Pipe, Oil, No.3[08.2010 -] 2URGSE..USE20 |
15773-38020 |
US $19.80 |
||
|
15786
|
15786
15786-38010 Seal, Oil Pipe[08.2010 -] 2URGSE..USE20 |
15786-38010 |
US $1.67 |
||
|
9030111019
|
9030111019
90301-11019 Ring, O(For Oil Pipe No.1) |
90301-11019 |
US $2.51 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
