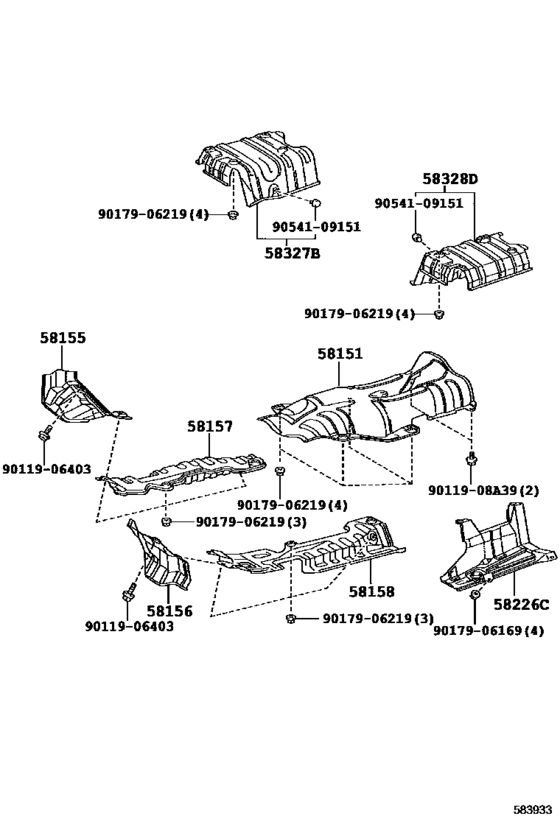

Floor Insulator ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58151
|
58151
58151-53030 Insulator, Front Floor Heat, No.1[08.2010 -] USE20 |
58151-53030 |
US $65.52 |
||
|
58155
|
58155
58155-30050 Insulator, Front Floor Heat, No.3[08.2010 -] USE20 |
58155-30050 |
US $20.53 |
||
|
58156
|
58156
58156-30120 Insulator, Front Floor Heat, No.4[08.2010 -] USE20 |
58156-30120 |
US $21.40 |
||
|
58157
|
58157
58157-30072 Insulator, Front Floor Heat, No.5[08.2010 - 10.2011] USE20 |
58157-30072 |
US $31.30 |
||
| replacement | |||||
|
58157
|
58157
58157-30073 Insulator, Front Floor Heat, No.5[08.2010 - 10.2011] USE20 |
58157-30073 |
US $21 |
||
|
58157
|
58157
58157-30073 Insulator, Front Floor Heat, No.5[11.2011 -] USE20 |
58157-30073 |
US $21 |
||
|
58158
|
58158
58158-30062 Insulator, Front Floor Heat, No.6[08.2010 - 01.2012] USE20 |
58158-30062 |
US $34.36 |
||
| replacement | |||||
|
58158
|
58158
58158-30063 Insulator, Front Floor Heat, No.6[08.2010 - 01.2012] USE20 |
58158-30063 |
US $23.07 |
||
|
58158
|
58158
58158-30063 Insulator, Front Floor Heat, No.6[02.2012 -] USE20 |
58158-30063 |
US $23.07 |
||
|
58226C
|
58226C
58226-53020 Plate, Air Guide, Outside Rh[08.2010 -] USE20 |
58226-53020 |
US $42.52 |
||
|
58327B
|
58327B
58327-53020 Insulator, Main Muffler Heat[08.2010 -] USE20 |
58327-53020 |
US $45.86 |
||
|
58328D
|
58328D
58328-53020 Insulator, Main Muffler Heat, Lh[08.2010 -] USE20 |
58328-53020 |
from US $56.75 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.43 |
||
|
9011906403
|
9011906403
90119-06403 BOLT W-WASHER |
90119-06403 |
from US $0.78 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $0.99 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
US $1.25 |
||
|
9054109151
|
9054109151
90541-09151 Cushion(For Luggage Compartment Door Panel) |
90541-09151 |
US $4.30 |
||
