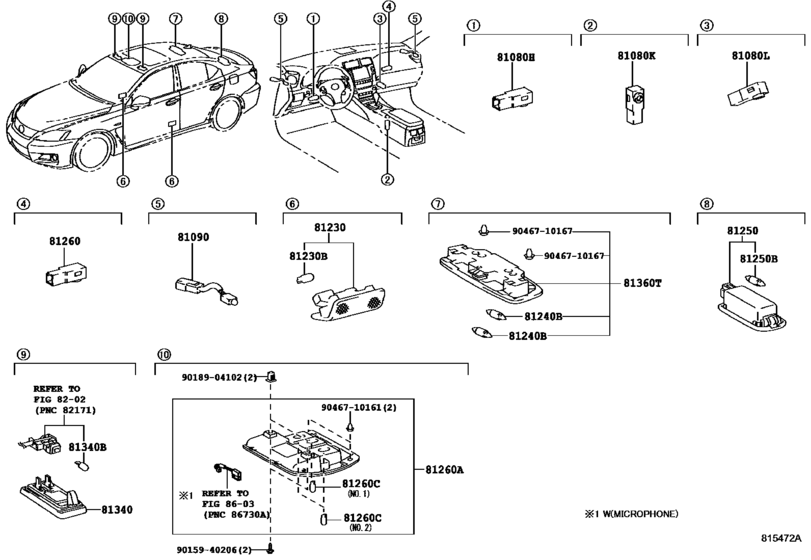

Interior Lamp ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080H
|
81080H
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[08.2010 - 08.2014] USE20 |
81080-22040 |
from US $10.12 |
||
|
81080K
|
81080K
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[08.2010 -] USE20 |
81080-22040 |
from US $10.12 |
||
|
81080L
|
81080L
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[08.2010 - 08.2014] USE20 |
81080-22040 |
from US $10.12 |
||
|
81090
|
81090
81090-53011 Lamp Assy, Interior Illumination, No.2[08.2010 - 08.2014] USE20 |
81090-53011 |
US $19.22 |
||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[09.2013 -] USE20 |
81230-30200 |
from US $12.93 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[08.2010 - 08.2013] USE20 |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[08.2010 - 08.2013] USE20 |
81230-30200 |
from US $12.93 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[08.2010 -] USE20 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81240B
|
81240B
90981-14001 Bulb(For Courtesy Lamp)[08.2010 -] USE20 12V 3W |
90981-14001 |
US $2.51 |
||
|
81250
|
81250
81250-48010 Lamp Assy, Room, No.2[08.2010 -] USE20 |
81250-48010 |
from US $23.93 |
||
|
81250B
|
81250B
99132-13050 Bulb(For Courtesy Lamp)[08.2010 -] USE20 12V 5W |
99132-13050 |
from US $2.57 |
||
| replacement | |||||
|
81250B
|
81250B
00234-13050 Bulb,Room Lamp[08.2010 -] USE20 12V 5W |
00234-13050 |
US $2.82 |
||
|
81260
|
81260
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[08.2010 - 08.2014] USE20 |
81080-22040 |
from US $10.12 |
||
|
81260A
|
81260A
81260-53830-C0
Lamp Assy, Map
[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
81260-53830-C0 |
— | ||
|
81260A
|
81260A
81260-53A40-C0
Lamp Assy, Map
[08.2010 - 08.2014] USE20 MOON ROOF-WITH(AUTO SLIDE),BLACK,TRIM2# |
81260-53A40-C0 |
— | ||
|
81260C
|
81260C
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2010 -] USE20 12V 3.8W,NO.1 |
90981-11020 |
from US $3.05 |
||
|
81260C
|
81260C
99132-12050 Bulb (12V 5W)[08.2010 -] USE20 12V 5W,NO.2 |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81260C
|
81260C
90080-81053 Bulb(For Clearance Lamp)[08.2010 -] USE20 12V 5W,NO.2 |
90080-81053 |
US $1.01 |
||
|
81340
|
81340
81340-30100-C0 Lamp Assy, Vanity[08.2010 - 06.2012] USE20 BLACK,TRIM2# |
81340-30100-C0 |
US $22.57 |
||
|
81340
|
81340
81340-30110 Lamp Assy, Vanity[06.2012 - 08.2014] USE20 |
81340-30110 |
from US $22.07 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[08.2010 - 08.2014] USE20 12V 8W |
90981-11062 |
from US $2.26 |
||
|
81360T
|
81360T
81360-53010-C0 Lamp Assy, Spot[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
81360-53010-C0 |
US $222.77 |
||
|
9015940206
|
9015940206
90159-40206 SCREW, W/WASHER TAPP |
90159-40206 |
US $1.25 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.13 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.90 |
||
|
9046710167
|
9046710167
90467-10167 Clip(For Rear Floor Finish Plate) |
90467-10167 |
from US $0.96 |
||
