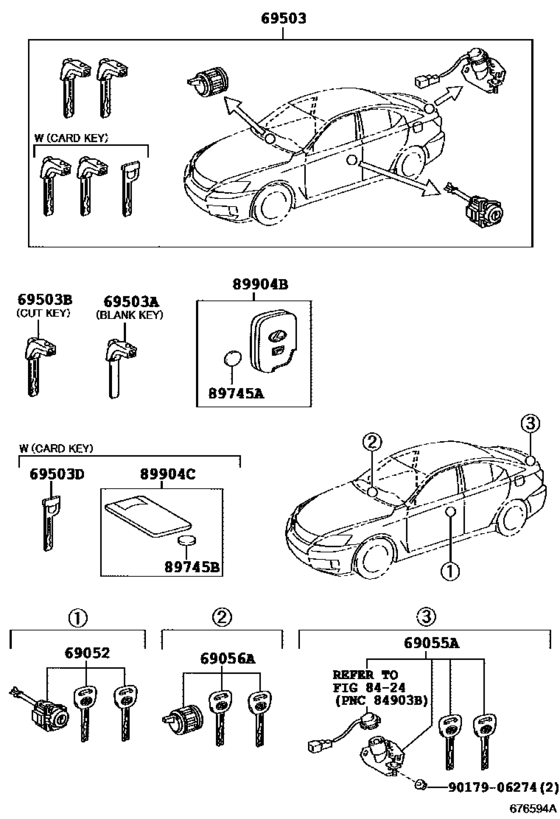

Lock Cylinder Set ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69052
|
69052
69052-50150 Cylinder & Key Set, Door Lock, Lh[08.2010 -] USE20 |
69052-50150 |
US $110.66 |
||
|
69055A
|
69055A
69055-53050 Cylinder & Key Set, Luggage Compartment LockLUGGAGE COMPARTMENT LOCK [08.2010 -] USE20 |
69055-53050 |
US $116.48 |
||
|
69056A
|
69056A
69056-50160 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.2010 -] USE20 |
69056-50160 |
US $94.64 |
||
|
69503
|
69503
69005-53330
Cylinder Set, Lock
[08.2010 -] USE20 |
69005-53330 |
— | ||
|
69503
|
69503
69005-53370
Cylinder Set, Lock
[08.2010 -] USE20 WITH(CARD KEY) |
69005-53370 |
— | ||
|
69503A
|
69503A
69515-50260 Key, BlankBLANK [08.2010 - 08.2014] USE20 BLANK KEY |
69515-50260 |
from US $54.09 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[08.2010 - 08.2014] USE20 MASTER KEY |
69515-50240 |
US $127.92 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[08.2010 -] USE20 MASTER KEY,WITH(CARD KEY) |
69515-30330 |
US $116.44 |
||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[08.2010 -] USE20 |
89745-52020 |
from US $7.88 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[08.2010 - 08.2012] USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
89745-50030 |
from US $8.36 |
||
|
89904B
|
89904B
89904-53410
Transmitter Sub-Assy, Electrical Key
[08.2010 -] USE20 |
89904-53410 |
— | ||
|
89904C
|
89904C
89904-53420
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 - 06.2011] USE20 WITH(CARD KEY); USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
89904-53420 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89904-53421
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 - 06.2011] USE20 WITH(CARD KEY); USE20 WIRELESS DOOR LOCK-WITH(PANIC),FOR JORDAN&WITH(CARD KEY) |
89904-53421 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
