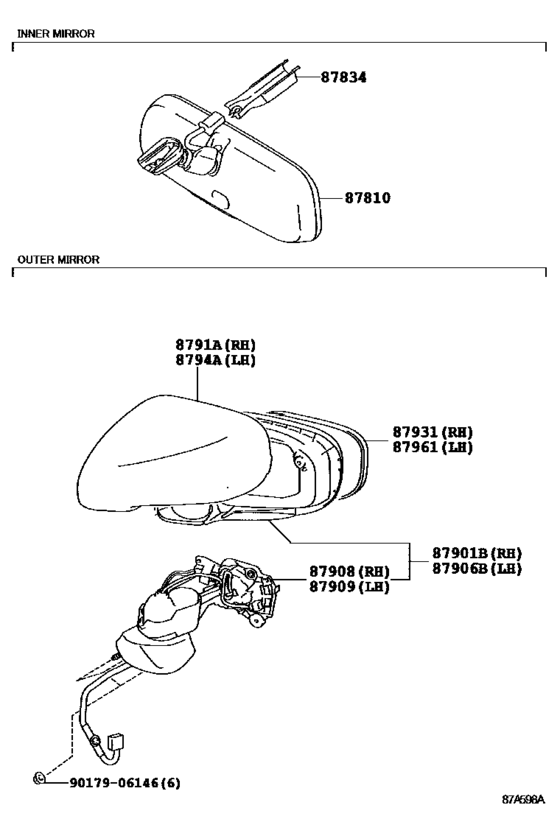

Mirror ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8791A
|
8791A
8791A-53230-A3
Cover, Outer Mirror, Rh No.2
[08.2012 -] USE20 WHITE NOVA GF.,083 |
8791A-53230-A3 |
— | ||
|
8791A
|
8791A
8791A-53230-B3
Cover, Outer Mirror, Rh No.2
[08.2011 -] USE20 MERCURY GRAY MC.,1H9 |
8791A-53230-B3 |
— | ||
|
8791A
|
8791A
8791A-53230-B4
Cover, Outer Mirror, Rh No.2
[08.2012 -] USE20 SONIC SILVER,1J2 |
8791A-53230-B4 |
— | ||
|
8791A
|
8791A
8791A-53230-C2
Cover, Outer Mirror, Rh No.2
[08.2010 -] USE20 STARLIGHT BLACK GF.,217 |
8791A-53230-C2 |
— | ||
|
8791A
|
8791A
8791A-53230-D0
Cover, Outer Mirror, Rh No.2
[08.2010 -] USE20 RED MC.CS.,3R1 |
8791A-53230-D0 |
— | ||
|
8791A
|
8791A
8791A-53230-J3
Cover, Outer Mirror, Rh No.2
[08.2010 -] USE20 BLUE ME.,8U1 |
8791A-53230-J3 |
— | ||
|
8794A
|
8794A
8794A-53230-A3
Cover, Outer Mirror, Lh No.2
[08.2012 -] USE20 WHITE NOVA GF.,083 |
8794A-53230-A3 |
— | ||
|
8794A
|
8794A
8794A-53230-B3
Cover, Outer Mirror, Lh No.2
[08.2011 -] USE20 MERCURY GRAY MC.,1H9 |
8794A-53230-B3 |
— | ||
|
8794A
|
8794A
8794A-53230-B4
Cover, Outer Mirror, Lh No.2
[08.2012 -] USE20 SONIC SILVER,1J2 |
8794A-53230-B4 |
— | ||
|
8794A
|
8794A
8794A-53230-C2
Cover, Outer Mirror, Lh No.2
[08.2010 -] USE20 STARLIGHT BLACK GF.,217 |
8794A-53230-C2 |
— | ||
|
8794A
|
8794A
8794A-53230-D0
Cover, Outer Mirror, Lh No.2
[08.2010 -] USE20 RED MC.CS.,3R1 |
8794A-53230-D0 |
— | ||
|
8794A
|
8794A
8794A-53230-J3
Cover, Outer Mirror, Lh No.2
[08.2010 -] USE20 BLUE ME.,8U1 |
8794A-53230-J3 |
— | ||
|
87810
|
87810
87810-0W260 Mirror Assy, Inner Rear View[08.2010 -] USE20 |
87810-0W260 |
US $579.49 |
||
|
87834
|
87834
87818-06030 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [08.2010 -] USE20 |
87818-06030 |
US $8.74 |
||
|
87901B
|
87901B
87901-53060-A1
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2012] USE20 WHITE PEARL CS.,077 |
87901-53060-A1 |
— | ||
|
87901B
|
87901B
87901-53060-A3
Mirror Sub-Assy, Outer Rear View, Rh
[08.2012 - 08.2014] USE20 WHITE NOVA GF.,083 |
87901-53060-A3 |
— | ||
|
87901B
|
87901B
87901-53060-B0
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2011] USE20 DK.GRAY MC.,1G0 |
87901-53060-B0 |
— | ||
|
87901B
|
87901B
87901-53060-B2
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2012] USE20 PREMIUM SILVER,1F2 |
87901-53060-B2 |
— | ||
|
87901B
|
87901B
87901-53060-B3
Mirror Sub-Assy, Outer Rear View, Rh
[08.2011 - 08.2014] USE20 MERCURY GRAY MC.,1H9 |
87901-53060-B3 |
— | ||
|
87901B
|
87901B
87901-53060-B4
Mirror Sub-Assy, Outer Rear View, Rh
[08.2012 - 08.2014] USE20 SONIC SILVER,1J2 |
87901-53060-B4 |
— | ||
|
87901B
|
87901B
87901-53060-C2
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2014] USE20 STARLIGHT BLACK GF.,217 |
87901-53060-C2 |
— | ||
|
87901B
|
87901B
87901-53060-D0
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2014] USE20 RED MC.CS.,3R1 |
87901-53060-D0 |
— | ||
|
87901B
|
87901B
87901-53060-J2
Mirror Sub-Assy, Outer Rear View, Rh
[08.2010 - 08.2014] USE20 BLUE ME.,8U1 |
87901-53060-J2 |
— | ||
|
87906B
|
87906B
87906-53060-A1
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2012] USE20 WHITE PEARL CS.,077 |
87906-53060-A1 |
— | ||
|
87906B
|
87906B
87906-53060-A3
Mirror Sub-Assy, Outer Rear View, Lh
[08.2012 - 08.2014] USE20 WHITE NOVA GF.,083 |
87906-53060-A3 |
— | ||
|
87906B
|
87906B
87906-53060-B0
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2011] USE20 DK.GRAY MC.,1G0 |
87906-53060-B0 |
— | ||
|
87906B
|
87906B
87906-53060-B2
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2012] USE20 PREMIUM SILVER,1F2 |
87906-53060-B2 |
— | ||
|
87906B
|
87906B
87906-53060-B3
Mirror Sub-Assy, Outer Rear View, Lh
[08.2011 - 08.2014] USE20 MERCURY GRAY MC.,1H9 |
87906-53060-B3 |
— | ||
|
87906B
|
87906B
87906-53060-B4
Mirror Sub-Assy, Outer Rear View, Lh
[08.2012 - 08.2014] USE20 SONIC SILVER,1J2 |
87906-53060-B4 |
— | ||
|
87906B
|
87906B
87906-53060-C2
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2014] USE20 STARLIGHT BLACK GF.,217 |
87906-53060-C2 |
— | ||
|
87906B
|
87906B
87906-53060-D0
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2014] USE20 RED MC.CS.,3R1 |
87906-53060-D0 |
— | ||
|
87906B
|
87906B
87906-53060-J2
Mirror Sub-Assy, Outer Rear View, Lh
[08.2010 - 08.2014] USE20 BLUE ME.,8U1 |
87906-53060-J2 |
— | ||
|
87908
|
87908
87908-53230-A3
Actuator Assy, Outer Mirror, Rh
[08.2012 -] USE20 WHITE NOVA GF.,083 |
87908-53230-A3 |
— | ||
|
87908
|
87908
87908-53230-B2
Actuator Assy, Outer Mirror, Rh
[08.2012 -] USE20 SONIC SILVER,1J2 |
87908-53230-B2 |
— | ||
|
87908
|
87908
87908-53230-B3
Actuator Assy, Outer Mirror, Rh
[08.2011 -] USE20 MERCURY GRAY MC.,1H9 |
87908-53230-B3 |
— | ||
|
87908
|
87908
87908-53230-C2
Actuator Assy, Outer Mirror, Rh
[08.2010 -] USE20 STARLIGHT BLACK GF.,217 |
87908-53230-C2 |
— | ||
|
87908
|
87908
87908-53230-D0
Actuator Assy, Outer Mirror, Rh
[08.2010 -] USE20 RED MC.CS.,3R1 |
87908-53230-D0 |
— | ||
|
87908
|
87908
87908-53230-J4
Actuator Assy, Outer Mirror, Rh
[08.2010 -] USE20 BLUE ME.,8U1 |
87908-53230-J4 |
— | ||
|
87909
|
87909
87909-53230-A3
Actuator Assy, Outer Mirror, Lh
[08.2012 -] USE20 WHITE NOVA GF.,083 |
87909-53230-A3 |
— | ||
|
87909
|
87909
87909-53230-B2
Actuator Assy, Outer Mirror, Lh
[08.2012 -] USE20 SONIC SILVER,1J2 |
87909-53230-B2 |
— | ||
|
87909
|
87909
87909-53230-B3
Actuator Assy, Outer Mirror, Lh
[08.2011 -] USE20 MERCURY GRAY MC.,1H9 |
87909-53230-B3 |
— | ||
|
87909
|
87909
87909-53230-C2
Actuator Assy, Outer Mirror, Lh
[08.2010 -] USE20 STARLIGHT BLACK GF.,217 |
87909-53230-C2 |
— | ||
|
87909
|
87909
87909-53230-D0
Actuator Assy, Outer Mirror, Lh
[08.2010 -] USE20 RED MC.CS.,3R1 |
87909-53230-D0 |
— | ||
|
87909
|
87909
87909-53230-J4
Actuator Assy, Outer Mirror, Lh
[08.2010 -] USE20 BLUE ME.,8U1 |
87909-53230-J4 |
— | ||
|
87931
|
87931
87931-53300
Outer Mirror, Rh
[08.2010 -] USE20 |
87931-53300 |
— | ||
|
87961
|
87961
87961-53300
Mirror Outer, Lh
[08.2010 -] USE20 |
87961-53300 |
— | ||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.79 |
