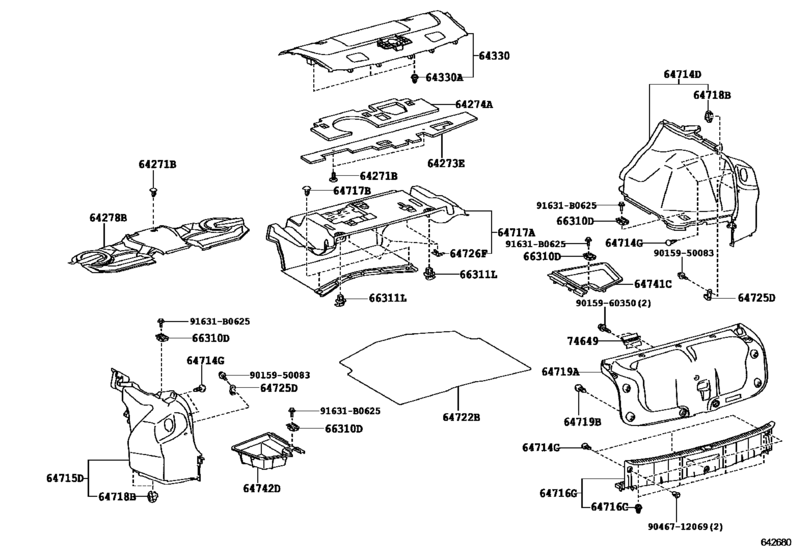

Package Tray Panel & Luggage Compartment Mat ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64271B
|
64271B
90467-08186-C0 Clip(For Front Bumper), No.1[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
90467-08186-C0 |
from US $0.90 |
||
|
64273E
|
64273E
64273-53040 Pad, Room Partition[08.2010 -] USE20 |
64273-53040 |
US $4.22 |
||
|
64274A
|
64274A
64274-53010 Pad, Room Partition, No.2[08.2010 -] USE20 |
64274-53010 |
US $4.22 |
||
|
64278B
|
64278B
64278-30010 Pad, Room Partition, No.3[08.2010 -] USE20 |
64278-30010 |
US $80.72 |
||
|
64330
|
64330
64330-53350-C1 Panel Assy, Package Tray Trim[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64330-53350-C1 |
US $266.45 |
||
|
64330A
|
64330A
90467-10161 Clip[08.2010 -] USE20 |
90467-10161 |
from US $0.90 |
||
|
64714D
|
64714D
64714-53070-C2 Cover, Luggage Compartment Trim, Side, Rh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64714-53070-C2 |
US $110.66 |
||
| replacement | |||||
|
64714D
|
64714D
64714-53071-C2 Cover, Luggage Compartment Trim, Side, Rh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64714-53071-C2 |
US $110.66 |
||
|
64714G
|
64714G
90467-08186-C0 Clip(For Front Bumper), No.1[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
90467-08186-C0 |
from US $0.90 |
||
|
64715D
|
64715D
64715-53050-C2 Cover, Luggage Compartment Trim, Side, Lh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64715-53050-C2 |
US $110.66 |
||
| replacement | |||||
|
64715D
|
64715D
64715-53051-C2 Cover, Luggage Compartment Trim, Side, Lh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64715-53051-C2 |
US $110.66 |
||
|
64716C
|
64716C
90467-10167 Clip(For Rear Floor Finish Plate)[08.2010 -] USE20 |
90467-10167 |
from US $0.96 |
||
|
64716G
|
64716G
64716-53030-C0 Cover, Luggage Compartment Trim, Rear[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64716-53030-C0 |
US $110.07 |
||
| replacement | |||||
|
64716G
|
64716G
64716-53031-C0 Cover, Luggage Compartment Trim, Rear[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64716-53031-C0 |
US $94.64 |
||
|
64717A
|
64717A
64717-53060-C2 Cover, Luggage Compartment Trim, Front[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64717-53060-C2 |
US $227.14 |
||
| replacement | |||||
|
64717A
|
64717A
64717-53061-C2 Cover, Luggage Compartment Trim, Front[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64717-53061-C2 |
US $282.06 |
||
|
64717B
|
64717B
90467-08186-C0 Clip(For Front Bumper), No.1[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
90467-08186-C0 |
from US $0.90 |
||
|
64718B
|
64718B
64718-22020-C0 Cover, Deck Trim Service HoleLUGGAGE TRIM SERVICE HOLE [08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64718-22020-C0 |
from US $5.09 |
||
|
64719A
|
64719A
64719-53080-C1 Cover, Luggage Compartment Door[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64719-53080-C1 |
US $120.85 |
||
| replacement | |||||
|
64719A
|
64719A
64719-53081-C1 Cover, Luggage Compartment Door[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64719-53081-C1 |
US $120.85 |
||
|
64719B
|
64719B
90467-08186-C0 Clip(For Front Bumper), No.1[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
90467-08186-C0 |
from US $0.90 |
||
|
64722B
|
64722B
64722-53130-C1 Cover, Luggage Compartment Trim, No.2[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64722-53130-C1 |
US $198.02 |
||
|
64725D
|
64725D
64725-33061 Hook, Luggage Compartment Trim, No.1[08.2010 -] USE20 |
64725-33061 |
from US $14.12 |
||
|
64726F
|
64726F
64726-30060-C0 Hook, Luggage Compartment Trim, No.2[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64726-30060-C0 |
US $8.60 |
||
|
64741C
|
64741C
64741-53050-C0 Box, Deck Side Trim, Rh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64741-53050-C0 |
US $47.03 |
||
|
64742D
|
64742D
64742-53040-C0 Box, Deck Side Trim, Lh[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
64742-53040-C0 |
US $63.34 |
||
|
66310D
|
66310D
66310-30011-C0 Hook Assy, Rope[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
66310-30011-C0 |
from US $19.81 |
||
|
66311L
|
66311L
66311-30010-C0 Hook Assy, Rope[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
66311-30010-C0 |
from US $5.36 |
||
|
74649
|
74649
74649-51010-C0 Grip, Back Door AssistLUGGAGE COMPARTMENT DOOR ASSIST [08.2010 - 08.2014] USE20 BLACK |
74649-51010-C0 |
from US $11.10 |
||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.66 |
||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.72 |
||
|
9015960350
|
9015960350
90159-60350 SCREW WWASHER |
90159-60350 |
US $1.08 |
||
|
9046712069
|
9046712069
90467-12069 Clip(For Rear Floor Finish Plate) |
90467-12069 |
from US $1.52 |
||
