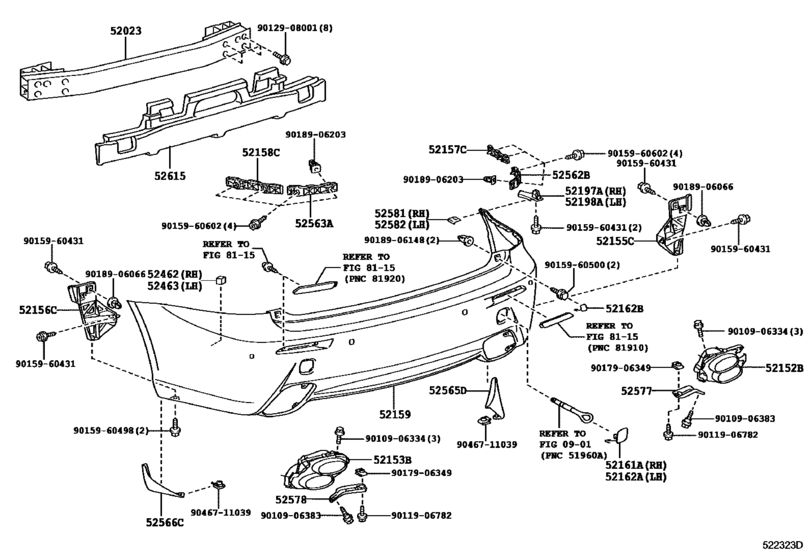

Rear Bumper & Bumper Stay ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-53040 Reinforcement Sub-Assy, Rear Bumper[08.2010 - 08.2014] USE20 |
52023-53040 |
from US $393.06 |
||
|
52152B
|
52152B
52106-53012 Extension, Rear Bumper, Rh[08.2010 -] USE20; USE20 CLEARANCE & BACK SONAR-WITH |
52106-53012 |
from US $328.06 |
||
|
52153B
|
52153B
52107-53012 Extension, Rear Bumper, Lh[08.2010 -] USE20; USE20 CLEARANCE & BACK SONAR-WITH |
52107-53012 |
from US $371.73 |
||
|
52155C
|
52155C
52155-53040 Support, Rear Bumper Side, No.1 Rh[08.2010 -] USE20 |
52155-53040 |
from US $27.18 |
||
|
52156C
|
52156C
52156-53010 Support, Rear Bumper Side, No.1 Lh[08.2010 -] USE20 |
52156-53010 |
from US $27.71 |
||
|
52157C
|
52157C
52157-53040 Support, Rear Bumper Side, No.2 Rh[08.2010 -] USE20 |
52157-53040 |
from US $26.19 |
||
|
52158C
|
52158C
52158-53040 Support, Rear Bumper Side, No.2 Lh[08.2010 -] USE20 |
52158-53040 |
from US $27.12 |
||
|
52159
|
52159
52159-53913 Cover, Rear BumperREAR BUMPER [08.2010 - 08.2014] USE20 |
52159-53913 |
US $977.91 |
||
|
52159
|
52159
52159-53935 Cover, Rear Bumper[08.2010 - 08.2014] USE20 CLEARANCE & BACK SONAR-WITH |
52159-53935 |
US $463.05 |
||
|
52161A
|
52161A
52161-53903 Piece, Rear Bumper, RhREAR BUMPER, RH [08.2010 - 08.2014] USE20 |
52161-53903 |
US $8.68 |
||
|
52162A
|
52162A
52162-53905
Piece, Rear Bumper, Lh
[08.2010 - 08.2014] USE20 |
52162-53905 |
— | ||
|
52162B
|
52162B
52162-53904 Plate, Rear Bumper, No.1REAR BUMPER, NO.1 [08.2010 - 08.2014] USE20 |
52162-53904 |
from US $4.12 |
||
|
52197A
|
52197A
52197-53020 Bracket, Rear Bumper Seal, Rh[08.2010 -] USE20 |
52197-53020 |
from US $5.42 |
||
|
52198A
|
52198A
52198-53010 Bracket, Rear Bumper Seal, Lh[08.2010 -] USE20 |
52198-53010 |
from US $5.54 |
||
|
52462
|
52462
52462-53030 Pad, Rear Bumper[08.2010 -] USE20 |
52462-53030 |
from US $2.65 |
||
|
52463
|
52463
52462-53030 Pad, Rear Bumper[08.2010 -] USE20 |
52462-53030 |
from US $2.65 |
||
|
52562B
|
52562B
52562-53010 Retainer, Rear Bumper, Upper Rh[08.2010 -] USE20 |
52562-53010 |
from US $36.66 |
||
|
52563A
|
52563A
52563-53010 Retainer, Rear Bumper, Upper Lh[08.2010 -] USE20 |
52563-53010 |
from US $36.93 |
||
|
52565D
|
52565D
52565-53010 Retainer, Rear Bumper, Lower Rh[08.2010 - 08.2014] USE20 |
52565-53010 |
US $17.72 |
||
|
52566C
|
52566C
52566-53010 Retainer, Rear Bumper, Lower Lh[08.2010 -] USE20 |
52566-53010 |
US $17.72 |
||
|
52577
|
52577
52577-53020 Retainer, Rear Bumper Side, No.2 Rh[08.2010 -] USE20 |
52577-53020 |
US $14.18 |
||
|
52578
|
52578
52578-53020 Retainer, Rear Bumper Side, No.2 Lh[08.2010 -] USE20 |
52578-53020 |
US $14.18 |
||
|
52581
|
52581
52581-53010 Protector, Rear Bumper, Rh[08.2010 -] USE20 |
52581-53010 |
from US $1.07 |
||
|
52582
|
52582
52582-53010 Protector, Rear Bumper, Lh[08.2010 -] USE20 |
52582-53010 |
from US $1.07 |
||
|
52615
|
52615
52615-53110 Absorber, Rear Bumper EnergyREAR BUMPER ENERGY [08.2010 -] USE20 |
52615-53110 |
US $121.61 |
||
|
9010906334
|
9010906334
90109-06334 BOLT |
90109-06334 |
from US $0.80 |
||
|
9010906383
|
9010906383
90109-06383 BOLT |
90109-06383 |
US $1.97 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.66 |
||
|
9012908001
|
9012908001
90129-08001 BOLT WWASHER |
90129-08001 |
from US $1.01 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.68 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.70 |
||
|
9018906148
|
9018906148
90189-06148 GROMMET, SCREW |
90189-06148 |
from US $0.82 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.74 |
||
|
9046711039
|
9046711039
90467-11039 CLIP |
90467-11039 |
US $4.30 |
