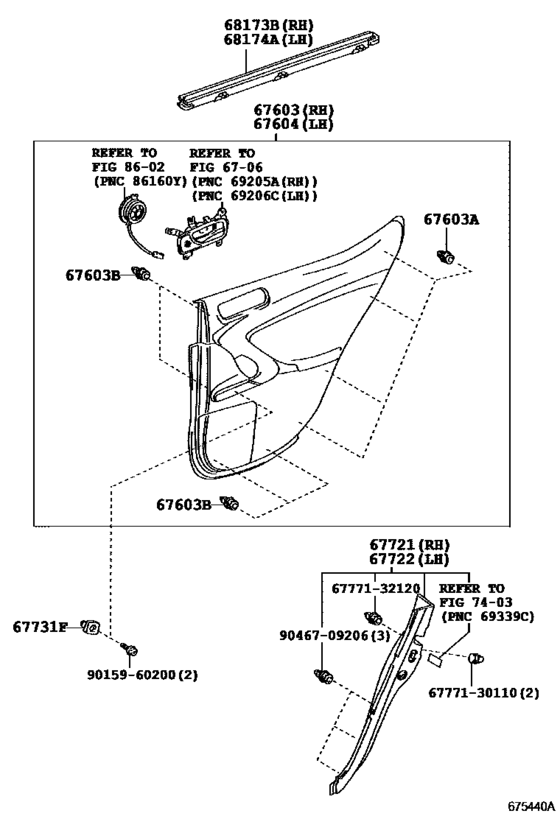

Rear Door Panel & Glass ([08.2010 - ] DOOR TRIM (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-53420-C2 Board Sub-Assy, Rear Door Trim, Rh[08.2010 - 09.2013] USE20 BLACK,TRIM2# |
67630-53420-C2 |
US $703.25 |
||
|
67603
|
67603
67630-53650-C0
Board Sub-Assy, Rear Door Trim, Rh
[09.2013 - 08.2014] USE20 BLACK,TRIM2# |
67630-53650-C0 |
— | ||
|
67603A
|
67603A
67771-32120 Retainer(For Front Door Trim Board)[08.2010 -] USE20 |
67771-32120 |
from US $2.46 |
||
|
67603B
|
67603B
90467-09203 Clip(For Rear Floor Mat Plate)[08.2010 -] USE20 |
90467-09203 |
from US $0.84 |
||
|
67604
|
67604
67640-53420-C2 Board Sub-Assy, Rear Door Trim, Lh[08.2010 - 09.2013] USE20 BLACK,TRIM2# |
67640-53420-C2 |
US $703.25 |
||
|
67604
|
67604
67640-53650-C0
Board Sub-Assy, Rear Door Trim, Lh
[09.2013 - 08.2014] USE20 BLACK,TRIM2# |
67640-53650-C0 |
— | ||
|
67721
|
67721
67721-53011-C0 Cover, Rear Door Trim, Rh[08.2010 - 04.2012] USE20 BLACK,TRIM2# |
67721-53011-C0 |
US $62.90 |
||
| replacement | |||||
|
67721
|
67721
67721-53012-C0 Cover, Rear Door Trim, Rh[08.2010 - 04.2012] USE20 BLACK,TRIM2# |
67721-53012-C0 |
from US $52.42 |
||
|
67721
|
67721
67721-53012-C0 Cover, Rear Door Trim, Rh[05.2012 - 08.2014] USE20 BLACK,TRIM2# |
67721-53012-C0 |
from US $52.42 |
||
|
67722
|
67722
67722-53011-C0 Cover, Rear Door Trim, Lh[08.2010 - 04.2012] USE20 BLACK,TRIM2# |
67722-53011-C0 |
US $62.90 |
||
| replacement | |||||
|
67722
|
67722
67722-53012-C0 Cover, Rear Door Trim, Lh[08.2010 - 04.2012] USE20 BLACK,TRIM2# |
67722-53012-C0 |
US $52.42 |
||
|
67722
|
67722
67722-53012-C0 Cover, Rear Door Trim, Lh[05.2012 - 08.2014] USE20 BLACK,TRIM2# |
67722-53012-C0 |
US $52.42 |
||
|
67731F
|
67731F
67731-53020 Spacer[08.2010 -] USE20 |
67731-53020 |
US $1.93 |
||
|
68173B
|
68173B
68173-53020 Weatherstrip, Rear Door Glass, Inner Rh[08.2010 -] USE20 |
68173-53020 |
US $43.45 |
||
|
68174A
|
68174A
68174-53020 Weatherstrip, Rear Door Glass, Inner Lh[08.2010 -] USE20 |
68174-53020 |
US $43.45 |
||
|
6777130110
|
6777130110
67771-30110 Retainer(For Front Door Trim Board) |
67771-30110 |
US $1.79 |
||
|
6777132120
|
6777132120
67771-32120 Retainer(For Front Door Trim Board) |
67771-32120 |
from US $2.46 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.47 |
||
