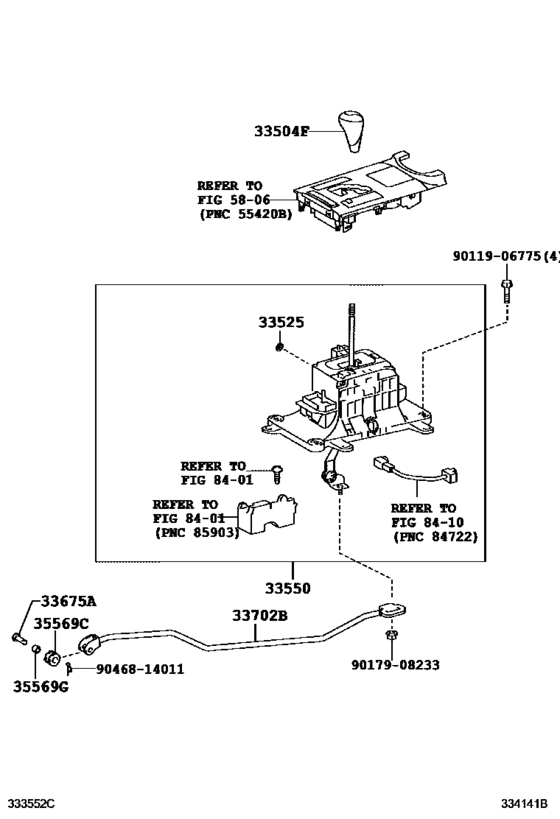

Shift Lever & Retainer ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-53100-C0 Knob Sub-Assy, Shift Lever[08.2010 - 08.2014] USE20 BLACK,TRIM20,21 |
33504-53100-C0 |
US $101.68 |
||
|
33504F
|
33504F
33504-53100-D1 Knob Sub-Assy, Shift Lever[08.2011 - 08.2014] USE20 RED,TRIM24 |
33504-53100-D1 |
US $101.68 |
||
|
33504F
|
33504F
33504-53100-E0 Knob Sub-Assy, Shift Lever[08.2010 - 08.2011] USE20 ORANGE,TRIM23 |
33504-53100-E0 |
US $101.68 |
||
|
33525
|
33525
33525-50020 Support, Shift Lever[08.2010 - 08.2014] USE20 |
33525-50020 |
US $3.06 |
||
|
33550
|
33550
33550-53240
Floor Shift Assy, Transmission
[08.2010 -] USE20 |
33550-53240 |
— | ||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[08.2010 -] USE20 |
33726-35010 |
US $3.40 |
||
|
33702B
|
33702B
33702-30610 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[08.2010 - 08.2014] USE20 |
33702-30610 |
US $15.55 |
||
|
35569C
|
35569C
90480-17013 Grommet[08.2010 - 08.2014] USE20 |
90480-17013 |
from US $3.21 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[08.2010 - 08.2014] USE20 |
90560-08091 |
US $1.25 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
