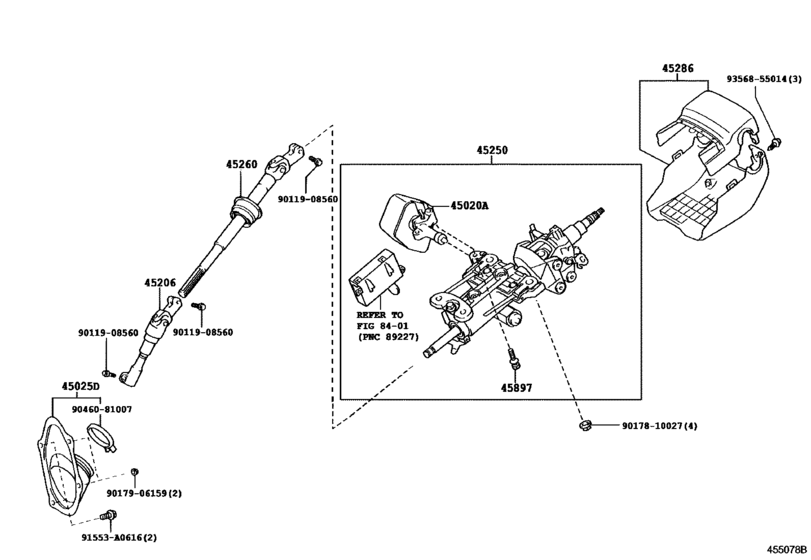

Steering Column & Shaft ([08.2010 - 11.2010] (1008-1011)) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-30A60 Actuator Assy, Steering Lock[08.2010 -] USE20 |
45020-30A60 |
from US $206.17 |
||
|
45025D
|
45025D
45025-30390 Cover Sub-Assy, Steering Column Hole, No.1STEERING COLUMN HOLE, NO.1 [08.2010 -] USE20 |
45025-30390 |
US $24.46 |
||
|
45206
|
45206
45206-30111 Yoke Sub-Assy, Steering Sliding W/shaftSTEERING SLIDING W/SHAFT [08.2010 - 12.2011] USE20 |
45206-30111 |
US $139.78 |
||
|
45206
|
45206
45206-30112
Yoke Sub-Assy, Steering Sliding W/shaft
[12.2011 -] USE20 |
45206-30112 |
— | ||
|
45250
|
45250
45250-53061
Column Assy, Steering
[08.2010 - 11.2010] USE20 |
45250-53061 |
— | ||
| replacements | |||||
|
45250
|
45250
45020-30A60 Actuator Assy, Steering Lock[08.2010 - 11.2010] USE20 |
45020-30A60 |
from US $206.17 |
||
|
45250
|
45250
45810-53020 Gear Assy, Tilt Steering, W/motor[08.2010 - 11.2010] USE20 |
45810-53020 |
US $1,258.90 |
||
|
45250
|
45250
45892-30020
Bracket, Return Spring
[08.2010 - 11.2010] USE20 |
45892-30020 |
— | ||
|
45250
|
45250
45897-12020 Bolt, Steering Lock Set[08.2010 - 11.2010] USE20 |
45897-12020 |
from US $2.69 |
||
|
45250
|
45250
89227-30020 Computer, Multiplex Tilt & Telescopic[08.2010 - 11.2010] USE20 |
89227-30020 |
US $492.13 |
||
|
45250
|
45250
93219-15010 SCREW[08.2010 - 11.2010] USE20 |
93219-15010 |
US $2.04 |
||
|
45250
|
45250
93381-15010 SCREW[08.2010 - 11.2010] USE20 |
93381-15010 |
US $1.08 |
||
|
45260
|
45260
45260-30200
Shaft Assy, Steering Intermediate, No.2
[08.2010 - 12.2012] USE20 |
45260-30200 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[08.2010 - 12.2012] USE20 |
45260-30201 |
US $282.78 |
||
|
45260
|
45260
45260-30201 Shaft Assy, Steering Intermediate, No.2[01.2013 -] USE20 |
45260-30201 |
US $282.78 |
||
|
45286
|
45286
45286-53912-C0
Cover, Steering Column
[08.2010 - 08.2014] USE20 BLACK,TRIM2# |
45286-53912-C0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.2010 -] USE20 |
45897-12020 |
from US $2.69 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.29 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.79 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9046081007
|
9046081007
90460-81007 CLAMP HOSE |
90460-81007 |
US $2.91 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
