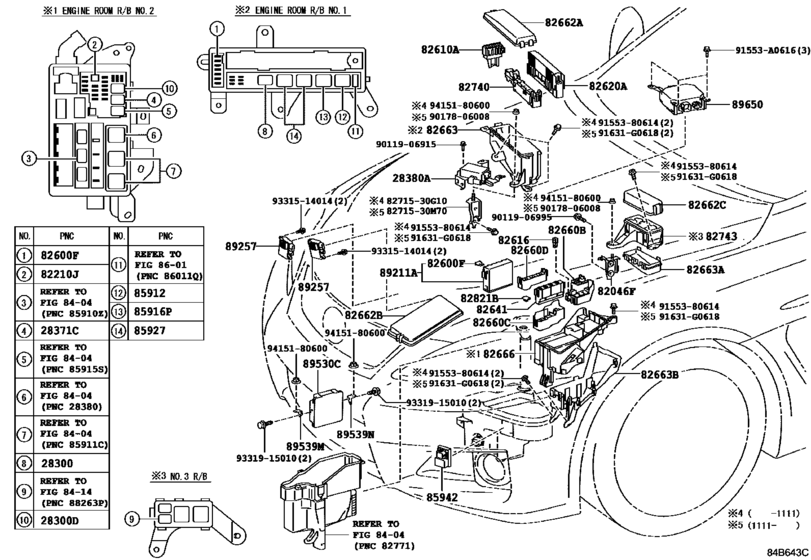

Switch & Relay & Computer ([08.2010 - ] ENGINE ROOM (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 08.2014] 2URGSE..USE20 |
28300-21020 |
from US $44.86 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[08.2010 - 06.2014] 2URGSE..USE20 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2010 - 06.2014] 2URGSE..USE20 |
28300-21020 |
from US $44.86 |
||
|
28300D
|
28300D
90987-02027 Relay[08.2010 -] 2URGSE..USE20 |
90987-02027 |
from US $47.82 |
||
|
28371C
|
28371C
90987-02027 Relay[08.2010 -] 2URGSE..USE20 |
90987-02027 |
from US $47.82 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[08.2010 -] 2URGSE..USE20 |
23080-31040 |
US $58.01 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[08.2010 - 11.2011] USE20 |
82046-30100 |
US $14.41 |
||
|
82046F
|
82046F
82046-30110 Wire Sub-Assy, Body Ground, No.1[11.2011 -] USE20 |
82046-30110 |
US $26.50 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[08.2010 - 08.2014] USE20 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.35 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2010 - 08.2014] USE20 7.5A,MINI FUSE |
90982-09020 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2010 - 08.2014] USE20 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2010 - 08.2014] USE20 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2010 - 08.2014] USE20 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2010 - 08.2014] USE20 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2010 - 08.2014] USE20 30A,MINI FUSE |
90982-09025 |
from US $0.74 |
||
|
82610A
|
82610A
82610-30140 Block Assy, FuseFUSE [08.2010 - 08.2014] USE20 |
82610-30140 |
US $16.89 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2010 - 08.2014] USE20 |
82616-58010 |
from US $2.22 |
||
|
82620A
|
82620A
82620-30200 Block Assy, Fusible Link[08.2010 - 08.2014] USE20 |
82620-30200 |
US $115.84 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[08.2010 - 08.2014] USE20 |
82641-30250 |
US $142.68 |
||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[08.2010 - 08.2014] USE20 |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A60 Block Assy, Relay[08.2010 - 08.2014] USE20 |
82660-30A60 |
US $23.59 |
||
|
82660D
|
82660D
82660-53020 Block Assy, Relay[08.2010 - 08.2014] USE20 |
82660-53020 |
US $13.83 |
||
|
82662A
|
82662A
82662-53141
Cover, Relay Block, Upper, No.1
[08.2010 -] USE20 |
82662-53141 |
— | ||
|
82662B
|
82662B
82662-53180 Cover, Relay Block, Upper, No.2[08.2010 -] USE20 |
82662-53180 |
US $29.12 |
||
|
82662C
|
82662C
82662-53160 Cover, Relay Block, Upper, No.3[08.2010 -] USE20 |
82662-53160 |
US $9.32 |
||
|
82663
|
82663
82663-53040
Cover, Relay Block, Lower
[08.2010 - 08.2014] USE20 |
82663-53040 |
— | ||
|
82663A
|
82663A
82663-30240 Cover, Relay Block Lower, No.4[08.2010 - 08.2014] USE20 |
82663-30240 |
from US $5.97 |
||
|
82663B
|
82663B
82663-30210 Cover, Relay Block, Lower, No.2[08.2010 - 08.2014] USE20 |
82663-30210 |
from US $31.74 |
||
|
82666
|
82666
82666-30840 Holder, Connector[08.2010 - 08.2014] USE20 |
82666-30840 |
US $50.67 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[08.2010 - 08.2014] USE20 |
82740-30340 |
US $20.38 |
||
|
82743
|
82743
82743-30040 Block, Engine Room Relay, No.3ENGINE ROOM RELAY, NO.3 [08.2010 - 08.2014] USE20 |
82743-30040 |
US $24.90 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[08.2010 - 08.2014] USE20 |
82821-47090 |
US $0.15 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[08.2010 -] USE20 |
90987-04010 |
from US $46.95 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2010 -] USE20 |
90987-02025 |
from US $48.62 |
||
|
85927
|
85927
90987-02025 Relay[08.2010 -] USE20 |
90987-02025 |
from US $48.62 |
||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[08.2010 - 10.2010] USE20 |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[08.2010 - 10.2010] USE20 |
85942-58010 |
from US $90.08 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[10.2010 - 08.2014] USE20 |
85942-58010 |
from US $90.08 |
||
|
89211A
|
89211A
89211-53030 Computer, Multiplex Network Body[08.2010 -] USE20 |
89211-53030 |
US $227.14 |
||
|
89257
|
89257
89257-26020 Computer, Cooling Fan[08.2010 - 08.2014] USE20 |
89257-26020 |
from US $213.88 |
||
|
89530C
|
89530C
89535-53090 Computer Assy, Transmission ControlTRANSMISSION CONTROL [08.2010 - 08.2012] USE20 |
89535-53090 |
US $956.59 |
||
|
89530C
|
89530C
89535-53160 Computer Assy, Transmission Control[08.2012 -] USE20 |
89535-53160 |
US $796.43 |
||
|
89539M
|
89539M
89539-30110 Bracket, Transmission Control Computer, No.1[08.2010 -] USE20 |
89539-30110 |
US $2.62 |
||
|
89539N
|
89539N
89539-30120 Bracket, Transmission Control Computer, No.2[08.2010 -] USE20 |
89539-30120 |
US $2.62 |
||
|
89650
|
89650
89650-53041
Computer Assy, Power Steering
[08.2010 - 08.2012] USE20 |
89650-53041 |
— | ||
|
89650
|
89650
89650-53042
Computer Assy, Power Steering
[08.2012 -] USE20 |
89650-53042 |
— | ||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
91631G0618
|
91631G0618
91631-G0618 New Genuine Part |
91631-G0618 |
US $0.44 |
||
|
8271530G10
|
8271530G10
82715-30G10 Bracket,wiring Harness Clamp |
82715-30G10 |
US $6.99 |
||
|
8271530M70
|
8271530M70
82715-30M70
Bracket,wiring Harness Clamp
|
82715-30M70 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9017806008
|
9017806008
90178-06008 NUT FLANGE |
90178-06008 |
from US $0.67 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
