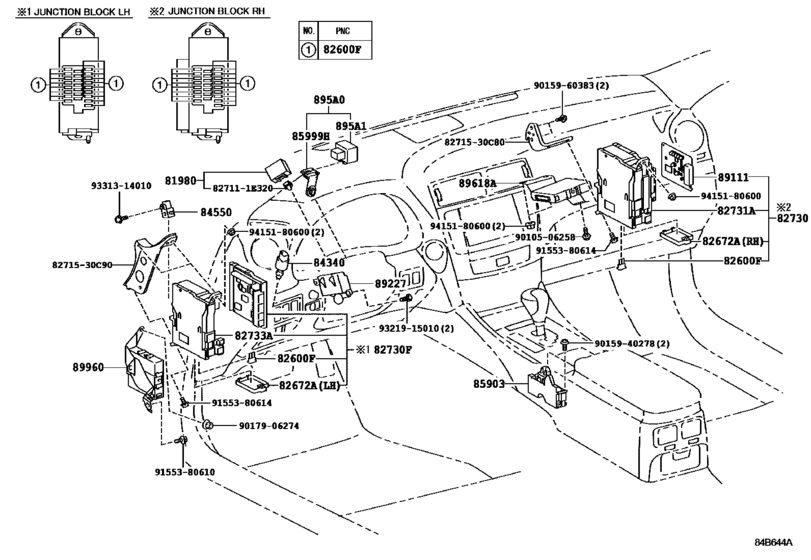

Switch & Relay & Computer ([08.2010 - ] COWL (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-53020 Relay Assy, Stop Lamp Control[08.2010 -] USE20 |
895A0-53020 |
US $55.18 |
||
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [08.2010 -] USE20 |
895A1-12010 |
US $50.67 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[08.2010 -] USE20 |
81980-30170 |
from US $51.05 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2010 - 08.2014] USE20 7.5A,MINI FUSE |
90982-09020 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2010 - 08.2014] USE20 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2010 - 08.2014] USE20 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2010 - 08.2014] USE20 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2010 - 08.2014] USE20 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2010 - 08.2014] USE20 30A,MINI FUSE |
90982-09025 |
from US $0.74 |
||
|
82672A
|
82672A
82672-53041
Cover, Junction Block
[08.2010 - 08.2012] USE20 RH |
82672-53041 |
— | ||
|
82672A
|
82672A
82672-53042
Cover, Junction Block
[08.2012 -] USE20 RH |
82672-53042 |
— | ||
|
82672A
|
82672A
82672-53060 Cover, Junction BlockJUNCTION BLOCK [08.2010 - 08.2012] USE20 LH |
82672-53060 |
US $4.80 |
||
|
82672A
|
82672A
82672-53061
Cover, Junction Block
[08.2012 -] USE20 LH |
82672-53061 |
— | ||
|
82730
|
82730
82730-53G60
Block Assy, Instrument Panel Junction
[08.2010 - 08.2011] USE20 |
82730-53G60 |
— | ||
|
82730
|
82730
82730-53G61
Block Assy, Instrument Panel Junction
[08.2011 -] USE20 |
82730-53G61 |
— | ||
|
82730F
|
82730F
82730-53052
Block Assy, Junction, Lh
[08.2010 - 08.2012] USE20 |
82730-53052 |
— | ||
|
82730F
|
82730F
82730-53053
Block Assy, Junction, Lh
[08.2012 -] USE20 |
82730-53053 |
— | ||
|
82731A
|
82731A
82731-53030 Block, Cowl Side Junction, Rh[08.2010 -] USE20 |
82731-53030 |
US $96.10 |
||
|
82733A
|
82733A
82733-53040 Block, Cowl Side Junction, Lh[08.2010 -] USE20 |
82733-53040 |
from US $119.92 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[08.2010 - 08.2014] USE20 |
84340-30110 |
from US $19.82 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.2010 - 08.2014] USE20 |
84550-16060 |
from US $19.32 |
||
|
85903
|
85903
85903-30080
Computer Sub-Assy, Shift Lock Control
[08.2010 - 08.2014] USE20 |
85903-30080 |
— | ||
|
85999H
|
85999H
895A9-53020 Bracket, Relay[08.2010 -] USE20 |
895A9-53020 |
US $5.39 |
||
|
89111
|
89111
89100-53031 Computer, Network Gateway[08.2010 -] USE20 |
89100-53031 |
US $490.67 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[08.2010 - 08.2014] USE20 |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-53090
Computer, Power Source Control
[08.2010 - 08.2012] USE20 |
89670-53090 |
— | ||
|
89618A
|
89618A
89670-53091
Computer, Power Source Control
[08.2012 -] USE20 |
89670-53091 |
— | ||
|
89960
|
89960
89960-53080 Computer Assy, Headlamp Leveling[08.2010 -] USE20 |
89960-53080 |
US $298.48 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
8271530C80
|
8271530C80
82715-30C80 Bracket,wiring Harness Clamp |
82715-30C80 |
US $9.46 |
||
|
8271530C90
|
8271530C90
82715-30C90 Bracket,wiring Harness Clamp |
82715-30C90 |
US $18.78 |
||
|
9010506258
|
9010506258
90105-06258 BOLT, WASHER BASED |
90105-06258 |
US $1.97 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.76 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $1.08 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
