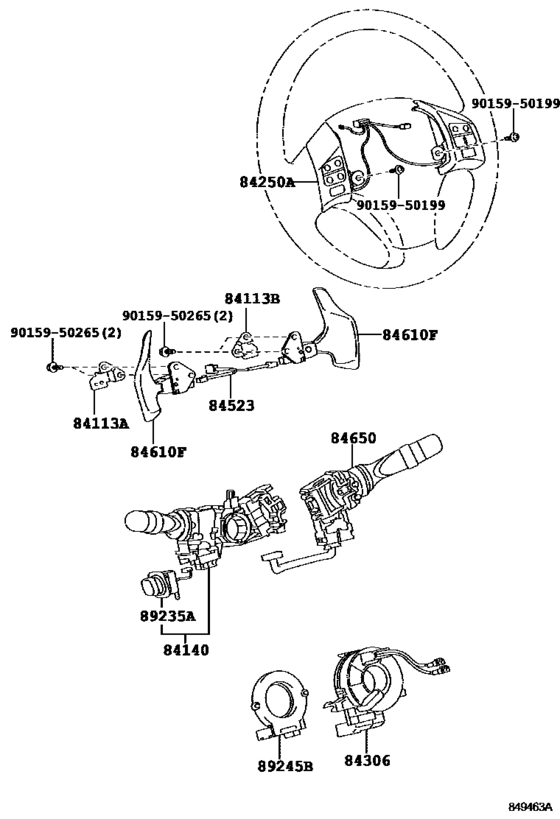

Switch & Relay & Computer ([08.2010 - ] STEERING (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84113A
|
84113A
84113-52010 Bracket, Switch, No.1[08.2010 - 08.2014] USE20 |
84113-52010 |
US $3.20 |
||
|
84113B
|
84113B
84113-52020 Bracket, Switch, No.2[08.2010 - 08.2014] USE20 |
84113-52020 |
US $3.20 |
||
|
84140
|
84140
84140-48210 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2010 -] USE20 |
84140-48210 |
from US $113.51 |
||
|
84250A
|
84250A
84250-53190 Switch Assy, Steering Pad[08.2010 -] USE20 |
84250-53190 |
US $185.86 |
||
|
84306
|
84306
84306-48030 Cable Sub-Assy, Spiral[08.2010 -] USE20 |
84306-48030 |
US $147.04 |
||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2010 -] USE20 |
84306-48031 |
from US $141.19 |
||
|
84523
|
84523
84523-52020 Wire, Switch No.1[08.2010 - 08.2014] USE20 |
84523-52020 |
US $18.93 |
||
|
84610F
|
84610F
84610-53040 Switch Assy, Transmission Shift[08.2010 - 08.2014] USE20 SHIFT DOWN |
84610-53040 |
US $132 |
||
|
84610F
|
84610F
84610-53050 Switch Assy, Transmission Shift[08.2010 - 08.2014] USE20 SHIFT UP |
84610-53050 |
US $132 |
||
|
84650
|
84650
84652-30552
Switch Assy, Windshield Wiper
[08.2010 -] USE20 |
84652-30552 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[08.2010 -] USE20 |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-52030 Sensor, Steering[08.2010 - 08.2014] USE20 |
89245-52030 |
from US $211.41 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.51 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.25 |
||
