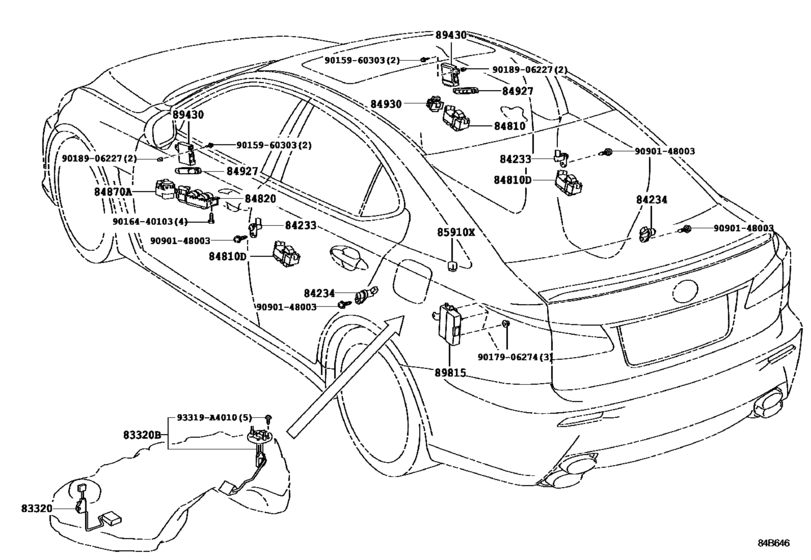

Switch & Relay & Computer ([08.2010 - ] DOOR,ROOF,FLOOR & LUGGAGE (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-53050
Gage Assy, Fuel Sender
[08.2010 - 08.2014] USE20 |
83320-53050 |
— | ||
|
83320B
|
83320B
83320-59535 Gage Assy, Fuel Sender, No.2[08.2010 - 08.2014] USE20 |
83320-59535 |
US $72.65 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[08.2010 -] USE20 |
84231-50190 |
from US $11.83 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[08.2010 -] USE20 |
84231-50190 |
from US $11.83 |
||
|
84810
|
84810
84810-33110 Switch Assy, Power Window Regulator[08.2010 -] USE20 |
84810-33110 |
US $128.13 |
||
|
84810D
|
84810D
84810-33110 Switch Assy, Power Window Regulator[08.2010 -] USE20 |
84810-33110 |
US $128.13 |
||
|
84820
|
84820
84040-53180 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2010 -] USE20 |
84040-53180 |
US $221.31 |
||
|
84870A
|
84870A
84872-53020 Switch Assy, Outer Mirror[08.2010 -] USE20 |
84872-53020 |
US $64.65 |
||
|
84927
|
84927
84927-53030-C0 Switch, Seat Memory[08.2010 - 08.2014] USE20 BLACK,TRIM2#,RH |
84927-53030-C0 |
US $60.72 |
||
|
84927
|
84927
84927-53040-C0 Switch, Seat Memory[08.2010 - 08.2014] USE20 BLACK,TRIM2#,LH |
84927-53040-C0 |
US $60.72 |
||
|
84930
|
84930
84930-30070 Switch Assy, Door Control[08.2010 -] USE20 |
84930-30070 |
US $37.13 |
||
|
85910X
|
85910X
90987-02027 Relay[08.2010 -] USE20 |
90987-02027 |
from US $47.82 |
||
|
89430
|
89430
89430-53070 Computer Assy, Outer Mirror Control[08.2010 -] USE20 |
89430-53070 |
US $171.81 |
||
| replacement | |||||
|
89430
|
89430
89430-53060 Computer Assy, Outer Mirror Control[08.2010 -] USE20 |
89430-53060 |
US $206.75 |
||
|
89815
|
89815
89810-53050 Computer, Seat Belt Control[08.2010 - 08.2014] USE20 PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
89810-53050 |
US $627.54 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.67 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
