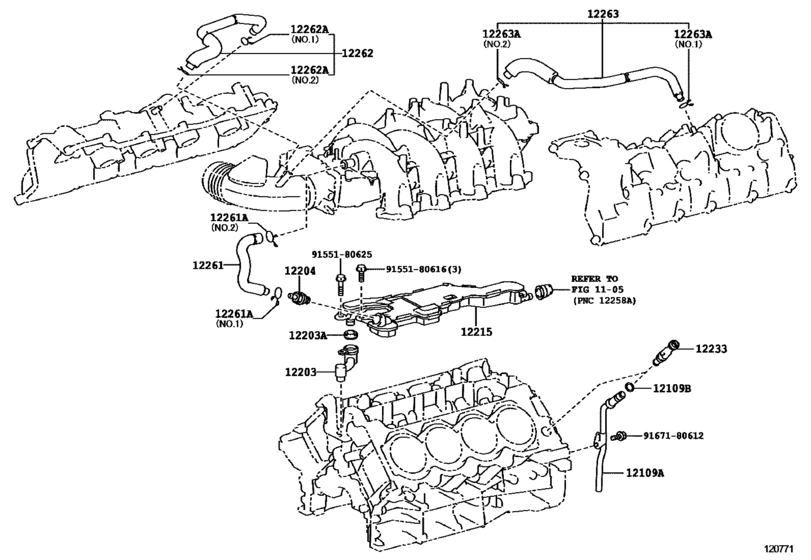

Ventilation Hose ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12109A
|
12109A
12109-38031 Pipe Sub-Assy, Oil DrainOIL DRAIN [08.2010 -] 2URGSE..USE20 |
12109-38031 |
US $16.16 |
||
|
12109B
|
12109B
96723-19010 Ring, O(For Oil Level Gage Guide)[08.2010 -] 2URGSE..USE20 |
96723-19010 |
from US $2.26 |
||
|
12203
|
12203
12203-38010 Pipe Sub-Assy, Ventilation[08.2010 -] 2URGSE..USE20 |
12203-38010 |
from US $21.72 |
||
|
12203A
|
12203A
12273-38020 Gasket(For Ventilation Pipe)[08.2010 -] 2URGSE..USE20 |
12273-38020 |
from US $5.56 |
||
|
12204
|
12204
12204-38020 Valve Sub-Assy, Ventilation[08.2010 -] 2URGSE..USE20 |
12204-38020 |
US $17.92 |
||
|
12215
|
12215
12215-38020 Separator, Case[08.2010 -] 2URGSE..USE20 |
12215-38020 |
from US $24.86 |
||
|
12233
|
12233
12233-38040 Connector, Ventilation No.1VENTILATION NO.1 [08.2010 -] 2URGSE..USE20 |
12233-38040 |
from US $29.29 |
||
|
12261
|
12261
12261-38060 Hose, Ventilation[08.2010 -] 2URGSE..USE20 |
12261-38060 |
US $20.16 |
||
|
12261A
|
12261A
90467-14017 Clip Or Clamp(For Ventilation Hose)[08.2010 -] 2URGSE..USE20 NO.1 |
90467-14017 |
from US $1.03 |
||
|
12261A
|
12261A
90467-24038 Clip(For Ventilation Tube)[08.2010 -] 2URGSE..USE20 NO.2 |
90467-24038 |
from US $0.78 |
||
|
12262
|
12262
12262-38040 Hose, Ventilation, No.2[08.2010 -] 2URGSE..USE20 |
12262-38040 |
US $41.50 |
||
|
12262A
|
12262A
90467-17126 Clip Or Clamp(For Ventilation Hose)[08.2010 -] 2URGSE..USE20 NO.1 |
90467-17126 |
US $2.15 |
||
|
12262A
|
12262A
90467-20002 Clip(For Ventilation Tube)[08.2010 -] 2URGSE..USE20 NO.2 |
90467-20002 |
from US $1.15 |
||
|
12263
|
12263
12263-38030 Hose, Ventilation, No.3[08.2010 -] 2URGSE..USE20 |
12263-38030 |
US $41.50 |
||
|
12263A
|
12263A
90467-17126 Clip Or Clamp(For Ventilation Hose)[08.2010 -] 2URGSE..USE20 NO.1 |
90467-17126 |
US $2.15 |
||
|
12263A
|
12263A
90467-20002 Clip(For Ventilation Tube)[08.2010 -] 2URGSE..USE20 NO.2 |
90467-20002 |
from US $1.15 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
