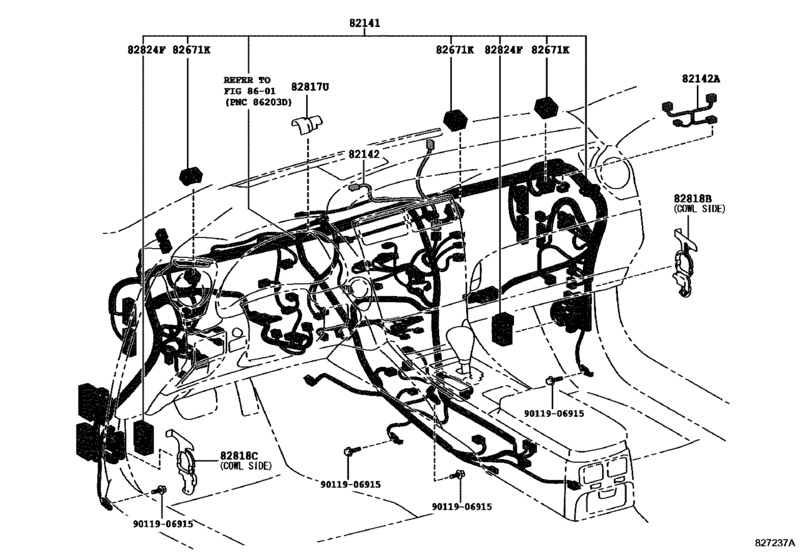

Wiring & Clamp ([08.2010 - ] INSTRUMENT PANEL (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-53J85
Wire, Instrument Panel
[08.2012 - 09.2013] USE20 |
82141-53J85 |
— | ||
|
82141
|
82141
82141-53J86
Wire, Instrument Panel
[09.2013 - 08.2014] USE20 |
82141-53J86 |
— | ||
|
82141
|
82141
82141-53V20
Wire, Instrument Panel
[08.2010 - 08.2011] USE20 |
82141-53V20 |
— | ||
|
82141
|
82141
82141-53V21
Wire, Instrument Panel
[08.2011 - 08.2012] USE20 |
82141-53V21 |
— | ||
|
82142
|
82142
82142-53051
Wire, Instrument Panel, No.2
[08.2010 -] USE20 |
82142-53051 |
— | ||
|
82142A
|
82142A
82140-53010 Wire, Instrument Panel, No.2[08.2010 - 08.2014] USE20 |
82140-53010 |
US $10.63 |
||
|
82671K
|
82671K
82671-53010 Block, Junction, No.3[08.2010 -] USE20 MARK B |
82671-53010 |
US $13.40 |
||
|
82671K
|
82671K
82671-53020 Block, Junction, No.3[08.2010 -] USE20 MARK C |
82671-53020 |
US $13.40 |
||
|
82671K
|
82671K
82671-53030 Block, Junction, No.3[08.2010 -] USE20 MARK D |
82671-53030 |
US $13.40 |
||
|
82817U
|
82817U
82817-33820 Protector, Wiring Harness, No.4[08.2010 -] USE20 |
82817-33820 |
US $5.24 |
||
|
82818B
|
82818B
82817-1A761 Protector, Wiring Harness, No.1[08.2010 -] USE20 CENTER PILLAR |
82817-1A761 |
US $9.32 |
||
|
82818B
|
82818B
82817-53240 Protector, Wiring Harness, No.7[08.2010 -] USE20 COWL SIDE |
82817-53240 |
US $7.72 |
||
|
82818C
|
82818C
82817-1A830 Protector, Wiring Harness, No.1[08.2010 -] USE20 CENTER PILLAR |
82817-1A830 |
US $8.30 |
||
|
82818C
|
82818C
82817-53250 Protector, Wiring Harness, No.8[08.2010 -] USE20 COWL SIDE |
82817-53250 |
US $7.72 |
||
|
82824F
|
82824F
82824-48080 Connector, Wiring Harness[08.2010 -] USE20 |
82824-48080 |
US $17.38 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
