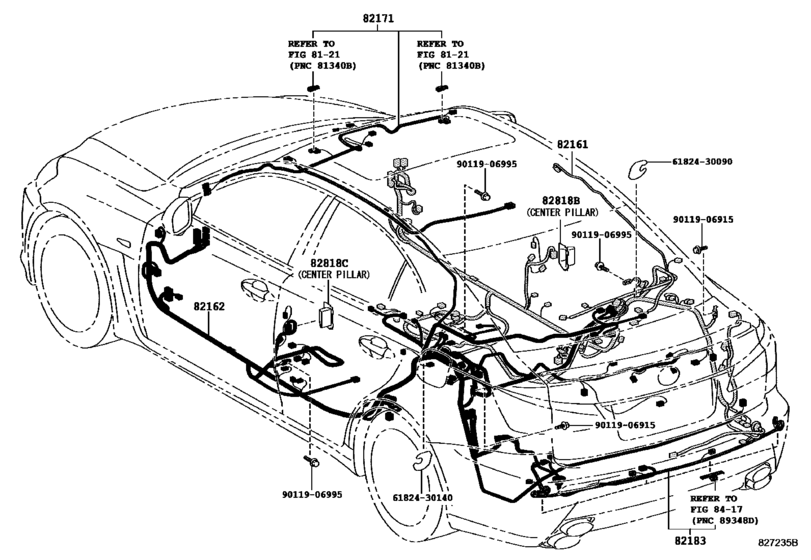

Wiring & Clamp ([08.2010 - ] FLOOR & ROOF (1008- )) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-53813
Wire, Floor
[08.2010 - 08.2012] USE20 |
82161-53813 |
— | ||
|
82161
|
82161
82161-53F10
Wire, Floor
[08.2012 -] USE20 |
82161-53F10 |
— | ||
|
82162
|
82162
82162-53C60
Wire, Floor, No.2
[08.2010 -] USE20 |
82162-53C60 |
— | ||
|
82171
|
82171
82171-53312 Wire, Roof, No.1ROOF, NO.1 [08.2010 - 08.2014] USE20 |
82171-53312 |
US $96.10 |
||
|
82171
|
82171
82171-53372 Wire, Roof, No.1ROOF, NO.1 [08.2010 - 08.2014] USE20 MOON ROOF-WITH(AUTO SLIDE) |
82171-53372 |
US $115.02 |
||
|
82183
|
82183
82183-53011
Wire, Luggage Room, No.3
[08.2010 - 08.2014] USE20 CLEARANCE & BACK SONAR-WITH |
82183-53011 |
— | ||
|
82818B
|
82818B
82817-1A761 Protector, Wiring Harness, No.1[08.2010 -] USE20 CENTER PILLAR |
82817-1A761 |
US $9.32 |
||
|
82818B
|
82818B
82817-53240 Protector, Wiring Harness, No.7[08.2010 -] USE20 COWL SIDE |
82817-53240 |
US $7.72 |
||
|
82818C
|
82818C
82817-1A830 Protector, Wiring Harness, No.1[08.2010 -] USE20 CENTER PILLAR |
82817-1A830 |
US $8.30 |
||
|
82818C
|
82818C
82817-53250 Protector, Wiring Harness, No.8[08.2010 -] USE20 COWL SIDE |
82817-53250 |
US $7.72 |
||
|
6182430090
|
6182430090
61824-30090 Plate, Noise Control, No.1 |
61824-30090 |
US $17.47 |
||
|
6182430140
|
6182430140
61824-30140 Plate, Noise Control, No.1 |
61824-30140 |
US $18.20 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
