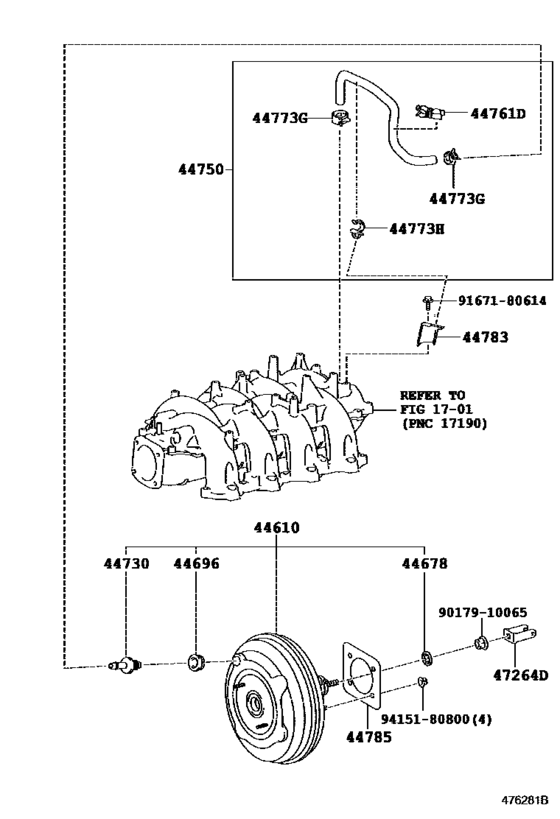

Brake Booster & Vacuum Tube ([12.2007 - ] (0712- )LHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-53340
Booster Assy, Brake
[12.2007 - 08.2014] USE20..LHD |
44610-53340 |
— | ||
|
44678
|
44678
44678-2B440
Retainer, Booster Air Cleaner
[12.2007 - 08.2014] USE20 |
44678-2B440 |
— | ||
|
44696
|
44696
90480-24015 Grommet, Check Valve[12.2007 -] USE20 |
90480-24015 |
from US $2.33 |
||
|
44730
|
44730
44730-28030 Valve Assy, Vacuum Check(For Brake)[12.2007 -] USE20 |
44730-28030 |
from US $22.85 |
||
|
44750
|
44750
44750-53200 Hose Assy, VacuumVACUUM [12.2007 -] USE20..LHD |
44750-53200 |
US $124.50 |
||
|
44761D
|
44761D
44783-53050
Clamp, Vacuum Check Valve To Connector Tube
[12.2007 -] USE20..LHD |
44783-53050 |
— | ||
|
44773G
|
44773G
96133-41500 Clamp Or Clip(For Air Hose, No.5)[12.2007 -] USE20..LHD |
96133-41500 |
from US $2.32 |
||
|
44773H
|
44773H
90469-17002 Clamp(For Union To Check Valve Hose)[12.2007 -] USE20..LHD |
90469-17002 |
US $2.33 |
||
|
44783
|
44783
44783-53040
Clamp, Vacuum Hose
[12.2007 -] USE20 |
44783-53040 |
— | ||
|
44785
|
44785
44785-47010 Gasket, Brake Booster[12.2007 -] USE20 |
44785-47010 |
from US $3.88 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[12.2007 -] USE20 |
47264-30060 |
US $4.22 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
