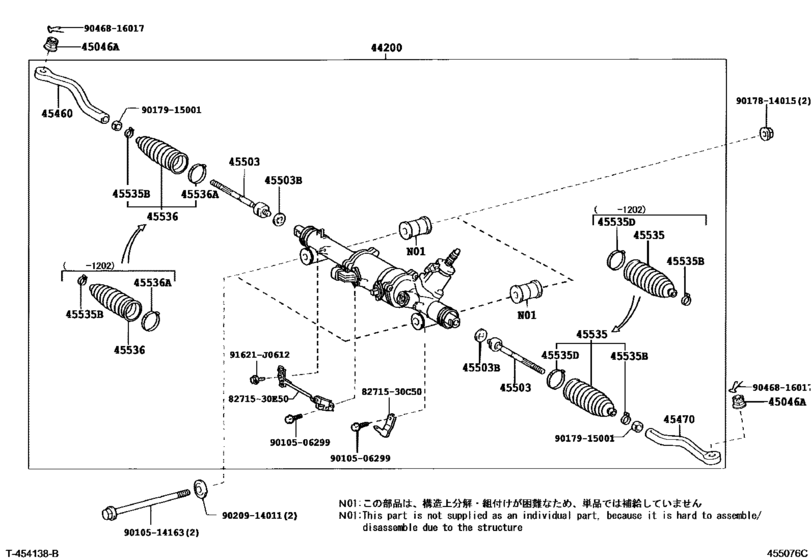

Front Steering Gear & Link ([12.2007 - ] (0712- )LHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-53130 Link Assy, Power SteeringPOWER STEERING [12.2007 - 09.2011] USE20..LHD |
44200-53130 |
US $2,067.52 |
||
| replacement | |||||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[12.2007 - 09.2011] USE20..LHD |
44200-53131 |
US $2,067.52 |
||
|
44200
|
44200
44200-53131 Link Assy, Power Steering[10.2011 -] USE20..LHD |
44200-53131 |
US $2,067.52 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[12.2007 -] USE20 |
90171-12002 |
from US $1.13 |
||
|
45460
|
45460
45463-30130 Rod Assy, Tie, Rh[12.2007 -] USE20 |
45463-30130 |
from US $22.85 |
||
|
45470
|
45470
45464-30060 Rod Assy, Tie, Lh[12.2007 -] USE20 |
45464-30060 |
from US $22.56 |
||
|
45503
|
45503
45503-30070 End Sub-Assy, Steering Rack[12.2007 -] USE20 |
45503-30070 |
from US $93.72 |
||
|
45503B
|
45503B
90214-14011 Washer, Claw(For Steering Rack End)[12.2007 -] USE20 OD=40 |
90214-14011 |
US $3.23 |
||
|
45535
|
45535
45535-30030
Boot, Steering Rack, No.1
[12.2007 - 02.2012] USE20 |
45535-30030 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[12.2007 - 02.2012] USE20 |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59045
Boot, Steering Rack, No.1
[02.2012 - 05.2012] USE20 |
45535-59045 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[02.2012 - 05.2012] USE20 |
45535-59065 |
from US $17.64 |
||
|
45535
|
45535
45535-59065 Boot, Steering Rack, No.1[01.2014 -] USE20 |
45535-59065 |
from US $17.64 |
||
|
45535B
|
45535B
90467-19019 Clip[12.2007 -] USE20 |
90467-19019 |
from US $4.19 |
||
|
45535D
|
45535D
45538-50010 Clamp(For Steering Rack Boot No.1)[12.2007 - 08.2014] USE20 |
45538-50010 |
from US $2.34 |
||
|
45536
|
45536
45535-30030
Boot, Steering Rack, No.1
[12.2007 - 02.2012] USE20 |
45535-30030 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[12.2007 - 02.2012] USE20 |
45535-59065 |
from US $17.64 |
||
|
45536
|
45536
45535-59045
Boot, Steering Rack, No.1
[02.2012 - 05.2012] USE20 |
45535-59045 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[02.2012 - 05.2012] USE20 |
45535-59065 |
from US $17.64 |
||
|
45536
|
45536
45535-59065 Boot, Steering Rack, No.1[01.2014 -] USE20 |
45535-59065 |
from US $17.64 |
||
|
45536A
|
45536A
45538-50010 Clamp(For Steering Rack Boot No.1)[12.2007 - 08.2014] USE20 |
45538-50010 |
from US $2.34 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
8271530C50
|
8271530C50
82715-30C50 Bracket,wiring Harness Clamp |
82715-30C50 |
US $2.33 |
||
|
8271530E50
|
8271530E50
82715-30E50 Bracket,wiring Harness Clamp |
82715-30E50 |
US $8.59 |
||
|
9010506299
|
9010506299
90105-06299 New Genuine Part |
90105-06299 |
US $0.44 |
||
|
9010514163
|
9010514163
90105-14163 Bolt, Differential Support Member Mounting, No.1 |
90105-14163 |
US $7.71 |
||
|
9017814015
|
9017814015
90178-14015 New Genuine Part |
90178-14015 |
US $3.40 |
||
|
9017915001
|
9017915001
90179-15001 Nut (For Rear Axle Carrier) |
90179-15001 |
from US $2.98 |
||
|
9020914011
|
9020914011
90209-14011 New Genuine Part |
90209-14011 |
US $4.30 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.84 |
||
