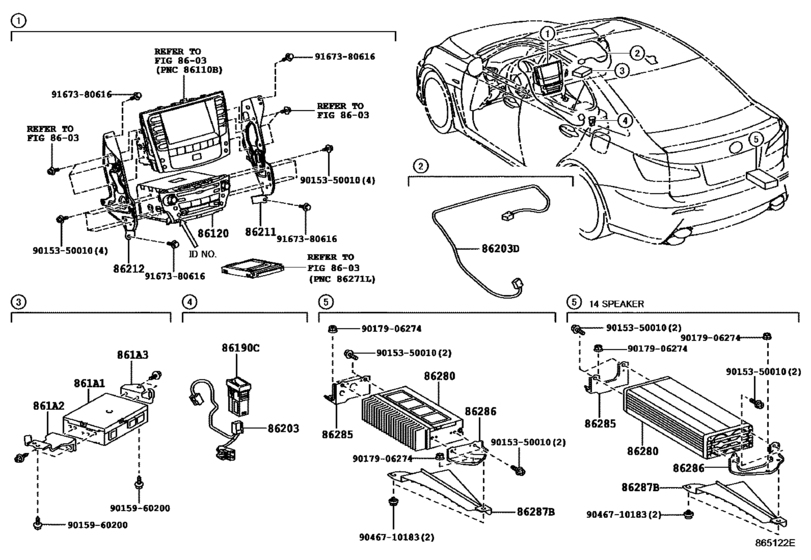

Radio Receiver & Amplifier & Condenser ([08.2012 - ] W/O(EMV) (1208- )LHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-48030 Computer, Multi-Media Interface[08.2009 - 07.2011] USE20..LHD; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
861A0-48030 |
US $286.83 |
||
|
861A1
|
861A1
861A0-77010 Computer Assy, Multi-Media Interface[08.2009 - 07.2011] USE20..LHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
861A0-77010 |
US $315.95 |
||
|
861A2
|
861A2
861A2-53010
Bracket, Multi-Media Interface, No.1
[08.2009 - 09.2013] USE20..LHD; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
861A2-53010 |
— | ||
|
861A3
|
861A3
861A3-53010
Bracket, Multi-Media Interface, No.2
[08.2009 - 09.2013] USE20..LHD; USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
861A3-53010 |
— | ||
|
86120
|
86120
86120-53400
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..LHD PIONEER, ID=P3803; USE20..LHD PIONEER, ID=P3803,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53400 |
— | ||
|
86120
|
86120
86120-53410
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..LHD PIONEER, ID=P3802,AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86120-53410 |
— | ||
|
86120
|
86120
86120-53420
Receiver Assy, Radio
[12.2007 - 08.2008] USE20..LHD PIONEER, ID=P8600,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53420 |
— | ||
|
86120
|
86120
86120-53660
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..LHD PIONEER, ID=P3817; USE20..LHD PIONEER, ID=P3817,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53660 |
— | ||
|
86120
|
86120
86120-53840
Receiver Assy, Radio
[08.2008 - 08.2009] USE20..LHD PIONEER, ID=P8617,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53840 |
— | ||
|
86120
|
86120
86120-53B00
Receiver Assy, Radio
[08.2009 - 07.2012] USE20..LHD PIONEER, ID=P3830; USE20..LHD PIONEER, ID=P3830,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53B00 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-53B01
Receiver Assy, Radio
[08.2009 - 07.2012] USE20..LHD PIONEER, ID=P3830; USE20..LHD PIONEER, ID=P3830,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53B01 |
— | ||
|
86120
|
86120
86120-53B01
Receiver Assy, Radio
[08.2012 - 09.2013] USE20..LHD PIONEER, ID=P3830; USE20..LHD PIONEER, ID=P3830,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53B01 |
— | ||
|
86120
|
86120
86120-53D20
Receiver Assy, Radio
[08.2009 - 08.2012] USE20..LHD PIONEER, ID=P8639,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53D20 |
— | ||
|
86120
|
86120
86120-53E20
Receiver Assy, Radio
[08.2010 - 04.2011] USE20..LHD PIONEER, ID=P7595,TAIWAN SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53E20 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-53E21
Receiver Assy, Radio
[08.2010 - 04.2011] USE20..LHD PIONEER, ID=P7595,TAIWAN SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53E21 |
— | ||
|
86120
|
86120
86120-53E21
Receiver Assy, Radio
[05.2011 - 08.2012] USE20..LHD PIONEER, ID=P7595,TAIWAN SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86120-53E21 |
— | ||
|
86190C
|
86190C
86190-53020 Adapter Assy, Stereo Jack, No.1[12.2007 - 08.2008] USE20 |
86190-53020 |
US $171.81 |
||
|
86190C
|
86190C
86190-53030 Adapter Assy, Stereo Jack, No.1[08.2008 - 08.2009] USE20 |
86190-53030 |
US $142.69 |
||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2009 - 08.2014] USE20 |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2009 - 08.2014] USE20 |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[08.2009 - 09.2013] USE20..LHD |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 09.2013] USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86203-53210 |
— | ||
|
86211
|
86211
86211-53020 Bracket, Radio, No.1[12.2007 - 08.2008] USE20 |
86211-53020 |
US $12.67 |
||
| replacement | |||||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[12.2007 - 08.2008] USE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2008 - 09.2013] USE20..LHD |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 09.2013] USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53020 Bracket, Radio, No.2[12.2007 - 08.2008] USE20 |
86212-53020 |
US $12.67 |
||
| replacement | |||||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[12.2007 - 08.2008] USE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2008 - 09.2013] USE20..LHD |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 09.2013] USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W550 Amplifier Assy, Stereo Component[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86280-0W550 |
US $2,096.64 |
||
|
86280
|
86280
86280-0W750 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2009 - 08.2012] USE20..LHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86280-0W750 |
US $1,630.72 |
||
|
86280
|
86280
86280-0WB00 Amplifier Assy, Stereo Component[08.2012 - 09.2013] USE20..LHD AUDIO-AM/FM DVD 5.1CH 14SPEAKER |
86280-0WB00 |
US $1,761.76 |
||
|
86280
|
86280
86280-53110 Amplifier Assy, Stereo Component[12.2007 - 08.2009] USE20 |
86280-53110 |
US $1,616.16 |
||
|
86280
|
86280
86280-53140
Amplifier Assy, Stereo Component
[08.2009 - 09.2013] USE20..LHD |
86280-53140 |
— | ||
|
86285
|
86285
86285-53040 Bracket, Amplifier, No.1[12.2007 - 08.2009] USE20 |
86285-53040 |
US $14.71 |
||
|
86285
|
86285
86285-53050 Bracket, Amplifier, No.1[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86285-53050 |
US $13.98 |
||
|
86285
|
86285
86285-53060 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 09.2013] USE20..LHD |
86285-53060 |
US $10.05 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2009 - 08.2012] USE20..LHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53040 Bracket, Amplifier, No.2[12.2007 - 08.2009] USE20 |
86286-53040 |
US $13.83 |
||
|
86286
|
86286
86286-53050 Bracket, Amplifier, No.2[12.2007 - 08.2008] USE20 AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER |
86286-53050 |
US $14.56 |
||
|
86286
|
86286
86286-53080 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 08.2012] USE20..LHD AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86286-53080 |
US $10.48 |
||
|
86286
|
86286
86286-53090 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2009 - 09.2013] USE20..LHD |
86286-53090 |
US $11.94 |
||
|
86287B
|
86287B
86287-53010 Cover, Amplifier[12.2007 -] USE20 |
86287-53010 |
US $18.05 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.84 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
