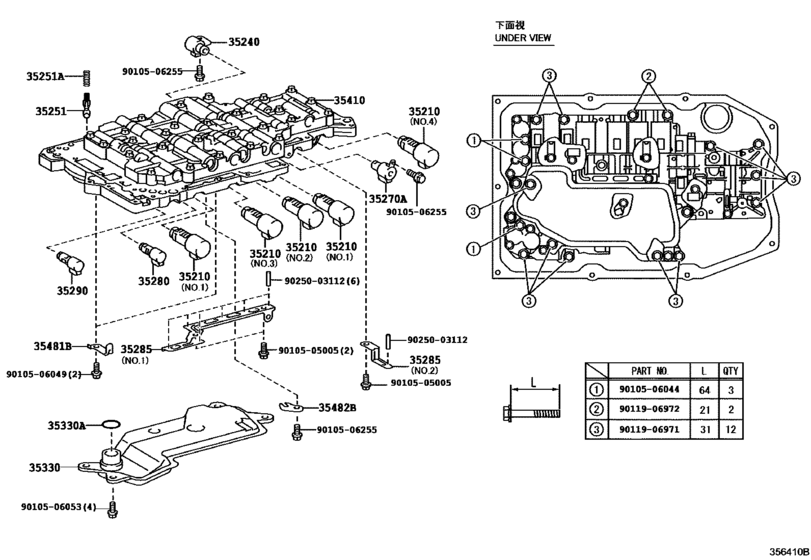

Valve Body & Oil Strainer (Atm) ([12.2007 - ] AA80E (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35210
|
35210
35210-50040 Solenoid Assy, Clutch Control, No.1[12.2007 -] USE20 NO.1 |
35210-50040 |
US $76.56 |
||
|
35210
|
35210
35210-50050 Solenoid Assy, Clutch Control, No.1[12.2007 -] USE20 NO.2 |
35210-50050 |
US $89.11 |
||
|
35210
|
35210
35210-50060 Solenoid Assy, Clutch Control, No.1[12.2007 -] USE20 NO.3 |
35210-50060 |
US $76.56 |
||
|
35210
|
35210
35210-50070 Solenoid Assy, Clutch Control, No.1[12.2007 -] USE20 NO.4 |
35210-50070 |
US $76.56 |
||
|
35240
|
35240
35240-50090 Solenoid Assy, Automatic Transmission 3Way[12.2007 -] USE20 |
35240-50090 |
from US $114.80 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[12.2007 -] USE20 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[12.2007 -] USE20 |
90501-03005 |
from US $0.79 |
||
|
35270A
|
35270A
35270-50020 Solenoid Assy, Transmission 3Way Lock Up[12.2007 -] USE20 |
35270-50020 |
US $99.59 |
||
|
35280
|
35280
35280-50030 Solenoid Assy, Lock Up Control[12.2007 -] USE20 |
35280-50030 |
US $99.59 |
||
|
35285
|
35285
35285-50040 Plate, Solenoid Lock[12.2007 -] USE20 NO.1 |
35285-50040 |
US $4.22 |
||
|
35285
|
35285
35285-50050 Plate, Solenoid Lock[12.2007 -] USE20 NO.2 |
35285-50050 |
US $1.02 |
||
|
35290
|
35290
35290-50020 Solenoid Assy, Line Pressure Control[12.2007 -] USE20 |
35290-50020 |
from US $114.80 |
||
|
35330
|
35330
35330-50030 Strainer Assy, Valve Body Oil[12.2007 -] USE20 |
35330-50030 |
from US $51.41 |
||
|
35330A
|
35330A
90301-31014 O-ring (For Oil Strainer)[12.2007 -] USE20 |
90301-31014 |
from US $2.13 |
||
|
35410
|
35410
35410-50130 Body Assy, Transmission Valve[12.2007 -] USE20 |
35410-50130 |
US $1,400.67 |
||
|
35481B
|
35481B
35481-50050 Clamp, Valve Body Wire Harness[12.2007 -] USE20 |
35481-50050 |
US $3.14 |
||
|
35482B
|
35482B
35482-50020 Clamp, Temperature Sensor[12.2007 -] USE20 |
35482-50020 |
US $13.40 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506044
|
9010506044
90105-06044 New Genuine Part |
90105-06044 |
US $1.16 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9010506053
|
9010506053
90105-06053 Bolt(For Sensor Rotor Adapter) |
90105-06053 |
US $1.25 |
||
|
9010506255
|
9010506255
90105-06255 BOLT FLANGE |
90105-06255 |
US $0.73 |
||
|
9011906971
|
9011906971
90119-06971 New Genuine Part |
90119-06971 |
US $0.73 |
||
|
9011906972
|
9011906972
90119-06972 New Genuine Part |
90119-06972 |
US $0.73 |
||
|
9025003112
|
9025003112
90250-03112 Pin, Straight (For Lock Up Signal Valve) |
90250-03112 |
US $0.61 |
