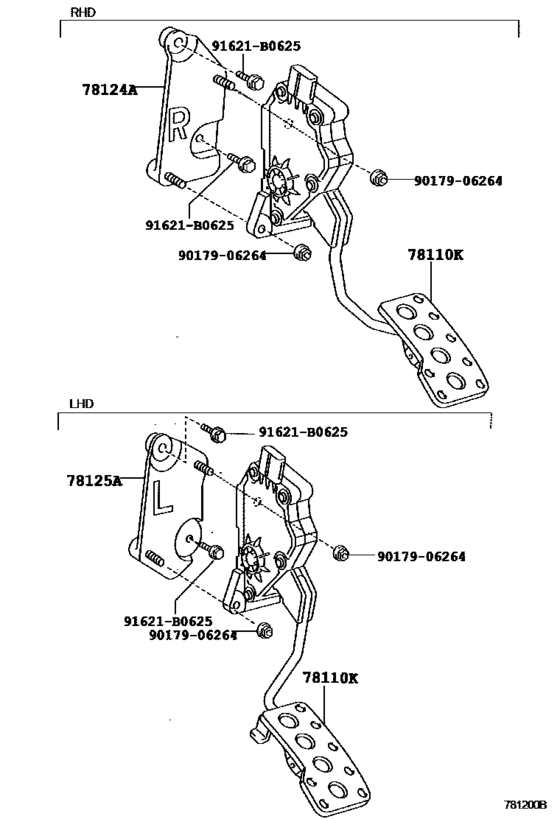

Accelerator Link ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110K
|
78110K
78110-53021 Sensor Assy, Accelerator Pedal[12.2007 - 07.2010] USE20..RHD |
78110-53021 |
US $122.30 |
||
| replacement | |||||
|
78110K
|
78110K
78110-53170 Sensor Assy, Accelerator Pedal[12.2007 - 07.2010] USE20..RHD |
78110-53170 |
US $101.92 |
||
|
78110K
|
78110K
78110-53022 Sensor Assy, Accelerator Pedal[08.2010 -] USE20..RHD |
78110-53022 |
US $101.92 |
||
| replacement | |||||
|
78110K
|
78110K
78110-53170 Sensor Assy, Accelerator Pedal[08.2010 -] USE20..RHD |
78110-53170 |
US $101.92 |
||
|
78124A
|
78124A
78124-53010 Bracket, Accelerator Pedal Rod[12.2007 -] USE20..RHD |
78124-53010 |
US $40.33 |
||
|
91621B0625
|
91621B0625
91621-B0625 New Genuine Part |
91621-B0625 |
US $1.08 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.82 |
||
