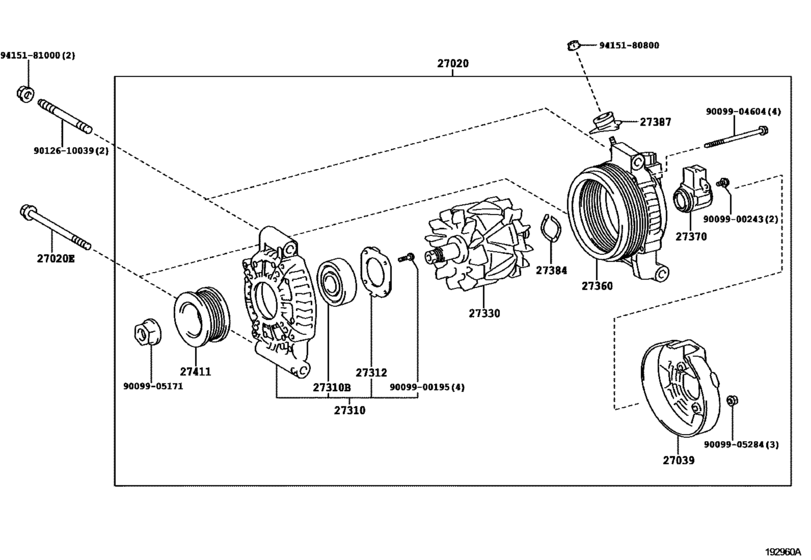

Alternator ([12.2007 - ] 12V 180A (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-38060 Alternator Assy[12.2007 -] 2URGSE..USE20 12V 180A |
27060-38060 |
US $1,674.40 |
||
|
27020E
|
27020E
90105-10557 Bolt(For Alternator)[12.2007 -] 2URGSE..USE20 |
90105-10557 |
US $3.20 |
||
|
27039
|
27039
27039-38130
Cover, Alternator Rear End
[12.2007 - 11.2013] 2URGSE..USE20 |
27039-38130 |
— | ||
|
27039
|
27039
27039-38150
Cover, Alternator Rear End
[11.2013 - 08.2014] 2URGSE..USE20 |
27039-38150 |
— | ||
|
27310
|
27310
27310-38130
Frame Assy, Drive End, Alternator
[12.2007 -] 2URGSE..USE20 |
27310-38130 |
— | ||
|
27310B
|
27310B
90099-10226 Bearing(For Alternator Drive End Frame)[12.2007 -] 2URGSE..USE20 |
90099-10226 |
US $10.85 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[12.2007 -] 2URGSE..USE20 |
27312-42010 |
— | ||
|
27330
|
27330
27330-38130
Rotor Assy, Alternator
[12.2007 - 05.2008] 2URGSE..USE20 |
27330-38130 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-38140
Rotor Assy, Alternator
[12.2007 - 05.2008] 2URGSE..USE20 |
27330-38140 |
— | ||
|
27330
|
27330
27330-38140
Rotor Assy, Alternator
[05.2008 -] 2URGSE..USE20 |
27330-38140 |
— | ||
|
27360
|
27360
27360-38150
Coil Assy, Alternator
[12.2007 -] 2URGSE..USE20 |
27360-38150 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[12.2007 -] 2URGSE..USE20 |
27370-58460 |
from US $14.61 |
||
|
27384
|
27384
27384-38130
Washer
[12.2007 -] 2URGSE..USE20 |
27384-38130 |
— | ||
|
27387
|
27387
27387-38130
Insulator, Terminal
[12.2007 -] 2URGSE..USE20 |
27387-38130 |
— | ||
|
27411
|
27411
27411-50030
Pulley, Alternator
[12.2007 -] 2URGSE..USE20 |
27411-50030 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009904604
|
9009904604
90099-04604
New Genuine Part
|
90099-04604 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9012610039
|
9012610039
90126-10039 New Genuine Part |
90126-10039 |
US $5.39 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
