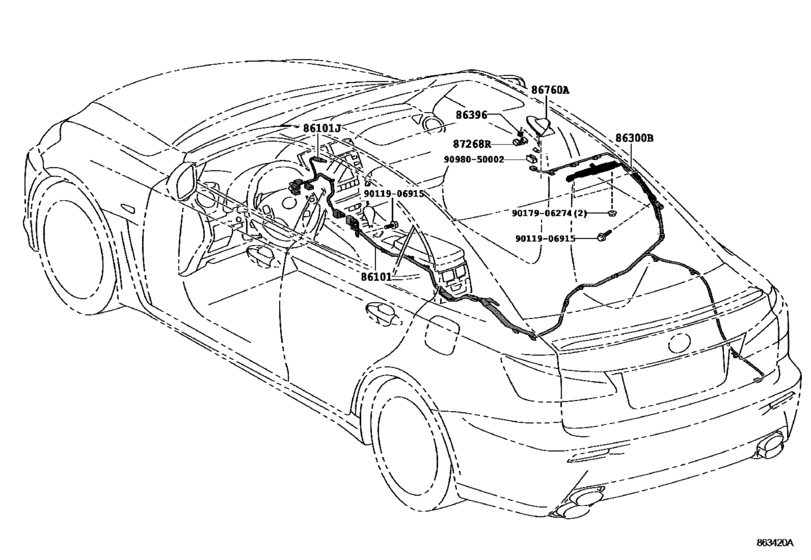

Antenna ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-53480 Cord Sub-Assy, Antenna[12.2007 -] USE20 |
86101-53480 |
US $100.46 |
||
|
86101
|
86101
86101-53500 Cord Sub-Assy, AntennaANTENNA [12.2007 - 08.2009] USE20 AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86101-53500 |
US $165.45 |
||
|
86101J
|
86101J
86101-53530 Cord Sub-Assy, Antenna, No.2[12.2007 - 08.2009] USE20 |
86101-53530 |
US $47.47 |
||
|
86101J
|
86101J
86101-53550
Cord Sub-Assy, Antenna, No.2
[12.2007 - 08.2009] USE20 AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER |
86101-53550 |
— | ||
|
86101J
|
86101J
86101-53A10
Cord Sub-Assy, Antenna, No.2
[08.2009 -] USE20 |
86101-53A10 |
— | ||
|
86300B
|
86300B
86300-53160
Antenna Assy, Amplifier, No.1
[12.2007 - 08.2014] USE20 |
86300-53160 |
— | ||
|
86396
|
86396
86396-30050 Nut, Antenna[12.2007 - 09.2010] USE20 |
86396-30050 |
US $9.03 |
||
|
86396
|
86396
86396-47010 Nut, AntennaANTENNA [10.2010 - 08.2014] USE20 |
86396-47010 |
from US $5.37 |
||
|
86760A
|
86760A
86760-53010-A2 Antenna Assy, Telephone[12.2007 - 08.2012] USE20 WHITE PEARL CS.,077 |
86760-53010-A2 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-A3 Antenna Assy, Telephone[08.2012 - 08.2014] USE20 WHITE NOVA GF.,083 |
86760-53010-A3 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-B0 Antenna Assy, Telephone[12.2007 - 08.2011] USE20 DK.GRAY MC.,1G0 |
86760-53010-B0 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B2 Antenna Assy, Telephone[12.2007 - 08.2012] USE20 PREMIUM SILVER,1F2 |
86760-53010-B2 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B4 Antenna Assy, Telephone[08.2011 - 08.2014] USE20 MERCURY GRAY MC.,1H9 |
86760-53010-B4 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-B5 Antenna Assy, Telephone[08.2012 - 08.2014] USE20 SONIC SILVER,1J2 |
86760-53010-B5 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C1 Antenna Assy, Telephone[12.2007 - 08.2014] USE20 BLACK,212 |
86760-53010-C1 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C2 Antenna Assy, Telephone[08.2010 - 08.2014] USE20 STARLIGHT BLACK GF.,217 |
86760-53010-C2 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-D0 Antenna Assy, Telephone[12.2007 - 08.2014] USE20 RED MC.CS.,3R1 |
86760-53010-D0 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-J4 Antenna Assy, Telephone[12.2007 - 08.2014] USE20 BLUE ME. CC.,8U1 |
86760-53010-J4 |
US $109.20 |
||
|
87268R
|
87268R
87268-50020 Protector, Telephone Antenna[12.2007 - 09.2010] USE20 |
87268-50020 |
US $8.44 |
||
| replacement | |||||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[12.2007 - 09.2010] USE20 |
87268-50021 |
US $6.26 |
||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[10.2010 - 08.2014] USE20 |
87268-50021 |
US $6.26 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9098050002
|
9098050002
90980-50002 Cover, Telephone Wire |
90980-50002 |
US $3.20 |
||
