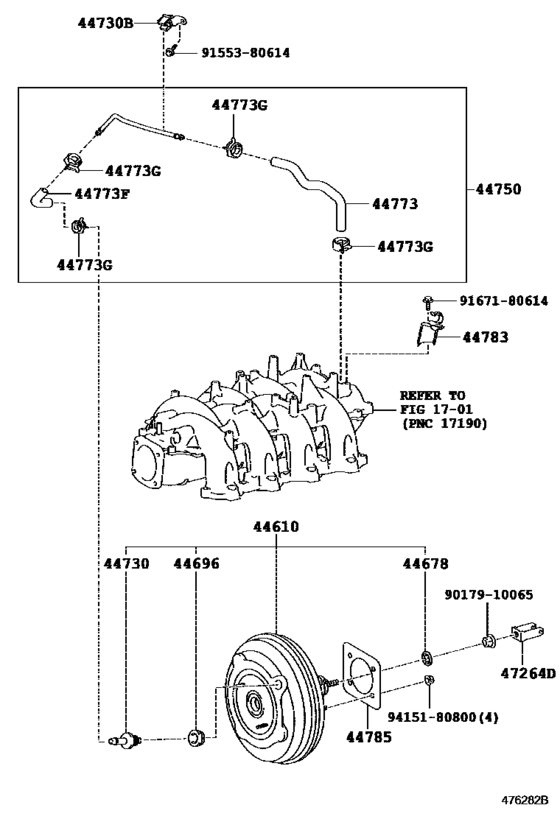

Brake Booster & Vacuum Tube ([12.2007 - ] (0712- )RHD) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-53330 Booster Assy, Brake[12.2007 - 08.2014] USE20..RHD |
44610-53330 |
US $470.29 |
||
|
44678
|
44678
44678-2B440
Retainer, Booster Air Cleaner
[12.2007 - 08.2014] USE20 |
44678-2B440 |
— | ||
|
44696
|
44696
90480-24015 Grommet, Check Valve[12.2007 -] USE20 |
90480-24015 |
from US $2.30 |
||
|
44730
|
44730
44730-28030 Valve Assy, Vacuum Check(For Brake)[12.2007 -] USE20 |
44730-28030 |
from US $22.85 |
||
|
44730B
|
44730B
44783-53060 Clamp, Vacuum Hose[12.2007 -] USE20..RHD |
44783-53060 |
US $8.88 |
||
|
44750
|
44750
44750-53190 Hose Assy, Vacuum[12.2007 -] USE20..RHD |
44750-53190 |
US $25.04 |
||
|
44773
|
44773
44773-53100 Hose, Vacuum, No.2[12.2007 -] USE20..RHD |
44773-53100 |
US $11.50 |
||
|
44773F
|
44773F
44773-53080 Hose, Union To Check Valve[12.2007 -] USE20..RHD |
44773-53080 |
US $5.10 |
||
|
44773G
|
44773G
96133-41500 Clamp Or Clip(For Air Hose, No.5)[12.2007 -] USE20..RHD |
96133-41500 |
from US $2.26 |
||
|
44783
|
44783
44783-53040
Clamp, Vacuum Hose
[12.2007 -] USE20 |
44783-53040 |
— | ||
|
44785
|
44785
44785-47010 Gasket, Brake Booster[12.2007 -] USE20 |
44785-47010 |
from US $3.78 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[12.2007 -] USE20 |
47264-30060 |
US $4.22 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
