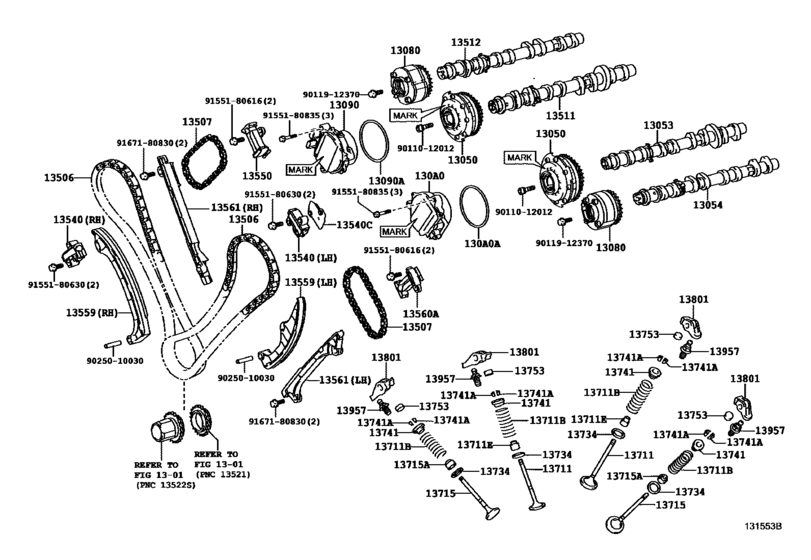

Camshaft & Valve ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A0
|
130A0
130A0-38010 Motor Assy, Cam Timing Control W/edu, Lh[12.2007 - 05.2009] 2URGSE..USE20 MARK 130A0-38010 |
130A0-38010 |
US $882.34 |
||
| replacement | |||||
|
130A0
|
130A0
130A0-38030 Motor Assy, Cam Timing Control W/edu, Lh[12.2007 - 05.2009] 2URGSE..USE20 MARK 130A0-38010 |
130A0-38030 |
from US $650.64 |
||
|
130A0
|
130A0
130A0-38011 Motor Assy, Cam Timing Control W/edu, LhCAM TIMING CONTROL W/EDU, LH [05.2009 - 07.2013] 2URGSE..USE20 MARK 130A0-38011 |
130A0-38011 |
US $735.28 |
||
| replacement | |||||
|
130A0
|
130A0
130A0-38012 Motor Assy, Cam Timing Control W/edu, Lh[05.2009 - 07.2013] 2URGSE..USE20 MARK 130A0-38011 |
130A0-38012 |
US $773.76 |
||
|
130A0
|
130A0
130A0-38012 Motor Assy, Cam Timing Control W/edu, Lh[07.2013 - 08.2014] 2URGSE..USE20 |
130A0-38012 |
US $773.76 |
||
|
130A0A
|
130A0A
90301-92004 Ring, O(For Cam Timing Control Motor Rh)[12.2007 - 08.2014] 2URGSE..USE20 |
90301-92004 |
from US $3.14 |
||
|
13050
|
13050
13050-38021 Gear Assy, Camshaft Timing[12.2007 - 05.2009] 2URGSE..USE20 MARK 13050-38021 |
13050-38021 |
from US $529.61 |
||
|
13050
|
13050
13050-38022 Gear Assy, Camshaft TimingCAMSHAFT TIMING [05.2009 -] 2URGSE..USE20 MARK 13050-38022 |
13050-38022 |
US $704.12 |
||
|
13053
|
13053
13053-38030 Camshaft Sub-Assy, No.3[12.2007 -] 2URGSE..USE20 |
13053-38030 |
US $554.74 |
||
|
13054
|
13054
13054-38030 Camshaft Sub-Assy, No.4[12.2007 -] 2URGSE..USE20 |
13054-38030 |
US $554.74 |
||
|
13080
|
13080
13080-31030 Gear Assy, Camshaft Timing Exhaust, Lh[12.2007 - 08.2008] 2URGSE..USE20 |
13080-31030 |
from US $180.63 |
||
|
13080
|
13080
13080-31050 Gear Assy, Camshaft Timing Exhaust, Rh[08.2008 -] 2URGSE..USE20 |
13080-31050 |
from US $187.21 |
||
|
13090
|
13090
13090-38010 Motor Assy, Cam Timing Control W/edu, Rh[12.2007 - 05.2009] 2URGSE..USE20 MARK 13090-38010 |
13090-38010 |
US $882.34 |
||
| replacement | |||||
|
13090
|
13090
13090-38030 Motor Assy, Cam Timing Control W/edu, Rh[12.2007 - 05.2009] 2URGSE..USE20 MARK 13090-38010 |
13090-38030 |
US $1,196.24 |
||
|
13090
|
13090
13090-38011
Motor Assy, Cam Timing Control W/edu, Rh
[05.2009 - 07.2013] 2URGSE..USE20 MARK 13090-38011 |
13090-38011 |
— | ||
| replacement | |||||
|
13090
|
13090
13090-38012 Motor Assy, Cam Timing Control W/edu, Rh[05.2009 - 07.2013] 2URGSE..USE20 MARK 13090-38011 |
13090-38012 |
US $773.76 |
||
|
13090
|
13090
13090-38012 Motor Assy, Cam Timing Control W/edu, Rh[07.2013 - 08.2014] 2URGSE..USE20 |
13090-38012 |
US $773.76 |
||
|
13090A
|
13090A
90301-92004 Ring, O(For Cam Timing Control Motor Rh)[12.2007 - 08.2014] 2URGSE..USE20 |
90301-92004 |
from US $3.14 |
||
|
13506
|
13506
13506-38030 Chain Sub-Assy[12.2007 -] 2URGSE..USE20 |
13506-38030 |
from US $81.87 |
||
|
13507
|
13507
13507-31020 Chain Sub-Assy, No.2[12.2007 -] 2URGSE..USE20 |
13507-31020 |
from US $33.80 |
||
|
13511
|
13511
13501-38030 Camshaft[12.2007 -] 2URGSE..USE20 |
13501-38030 |
US $554.74 |
||
|
13512
|
13512
13502-38030 Camshaft, No.2[12.2007 -] 2URGSE..USE20 |
13502-38030 |
US $554.74 |
||
|
13540
|
13540
13540-38020 Tensioner Assy, Chain, No.1[12.2007 -] 2URGSE..USE20 RH |
13540-38020 |
from US $48.53 |
||
|
13540
|
13540
13540-38041
Tensioner Assy, Chain, No.1
[12.2007 -] 2URGSE..USE20 LH |
13540-38041 |
— | ||
| replacement | |||||
|
13540
|
13540
13540-38042 Tensioner Assy, Chain, No.1[12.2007 -] 2URGSE..USE20 LH |
13540-38042 |
from US $58.20 |
||
|
13540C
|
13540C
13552-38010 Gasket(For Chain Tensioner)[12.2007 -] 2URGSE..USE20 |
13552-38010 |
from US $5.19 |
||
|
13550
|
13550
13550-38020 Tensioner Assy, Chain, No.2[12.2007 -] 2URGSE..USE20 |
13550-38020 |
from US $58.84 |
||
|
13559
|
13559
13559-38030 Slipper, Chain Tensioner[12.2007 -] 2URGSE..USE20 RH |
13559-38030 |
from US $22.36 |
||
|
13559
|
13559
13559-38040 Slipper, Chain Tensioner[12.2007 -] 2URGSE..USE20 LH |
13559-38040 |
from US $22.19 |
||
|
13560A
|
13560A
13560-38021 Tensioner Assy, Chain, No.3[12.2007 -] 2URGSE..USE20 |
13560-38021 |
from US $58.03 |
||
|
13561
|
13561
13561-38060 Damper, Chain Vibration, No.1[12.2007 -] 2URGSE..USE20 RH |
13561-38060 |
from US $35.11 |
||
|
13561
|
13561
13561-38070 Damper, Chain Vibration, No.1[12.2007 -] 2URGSE..USE20 LH |
13561-38070 |
from US $28.56 |
||
|
13711
|
13711
13711-38050 Valve, Intake[12.2007 -] 2URGSE..USE20 |
13711-38050 |
from US $18.89 |
||
|
13711B
|
13711B
90501-32058
Spring, Compression(For Inner)
[12.2007 -] 2URGSE..USE20 INTAKE SIDE |
90501-32058 |
— | ||
|
13711B
|
13711B
90501-35043 Spring, Compression(For Inner)[12.2007 -] 2URGSE..USE20 EXHAUST SIDE |
90501-35043 |
US $5.73 |
||
|
13711E
|
13711E
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [12.2007 -] 2URGSE..USE20 |
90913-02101 |
from US $4.84 |
||
|
13715
|
13715
13715-38080 Valve, Exhaust[12.2007 -] 2URGSE..USE20 |
13715-38080 |
US $32.91 |
||
|
13715A
|
13715A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[12.2007 -] 2URGSE..USE20 |
90913-02112 |
from US $4.84 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[12.2007 -] 2URGSE..USE20 |
13734-62020 |
from US $0.55 |
||
|
13741
|
13741
13741-31020 Retainer, Valve Spring[12.2007 -] 2URGSE..USE20 |
13741-31020 |
from US $2.05 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[12.2007 -] 2URGSE..USE20 |
90913-03028 |
from US $0.95 |
||
|
13753
|
13753
13753-22450 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.000 |
13753-22450 |
US $5.91 |
||
|
13753
|
13753
13753-22460 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.020 |
13753-22460 |
US $4.72 |
||
|
13753
|
13753
13753-22470 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.040 |
13753-22470 |
US $4.72 |
||
|
13753
|
13753
13753-22480 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.060 |
13753-22480 |
US $4.72 |
||
|
13753
|
13753
13753-22490 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.080 |
13753-22490 |
US $4.13 |
||
|
13753
|
13753
13753-22500 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.100 |
13753-22500 |
US $4.13 |
||
|
13753
|
13753
13753-22510 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.120 |
13753-22510 |
US $4.13 |
||
|
13753
|
13753
13753-22520 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.140 |
13753-22520 |
US $4.72 |
||
|
13753
|
13753
13753-22530 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.160 |
13753-22530 |
US $4.72 |
||
|
13753
|
13753
13753-22540 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.180 |
13753-22540 |
US $4.72 |
||
|
13753
|
13753
13753-22550 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.200 |
13753-22550 |
US $4.72 |
||
|
13753
|
13753
13753-22560 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.220 |
13753-22560 |
US $4.72 |
||
|
13753
|
13753
13753-22570 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.240 |
13753-22570 |
US $4.72 |
||
|
13753
|
13753
13753-22580 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.260 |
13753-22580 |
US $4.72 |
||
|
13753
|
13753
13753-22590 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.280 |
13753-22590 |
US $4.72 |
||
|
13753
|
13753
13753-22600 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.300 |
13753-22600 |
US $5.91 |
||
|
13753
|
13753
13753-22610 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.320 |
13753-22610 |
US $4.72 |
||
|
13753
|
13753
13753-22620 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.340 |
13753-22620 |
US $4.72 |
||
|
13753
|
13753
13753-22630 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.360 |
13753-22630 |
US $5.91 |
||
|
13753
|
13753
13753-22640 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.380 |
13753-22640 |
US $5.91 |
||
|
13753
|
13753
13753-22650 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.400 |
13753-22650 |
US $5.91 |
||
|
13753
|
13753
13753-22660 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.420 |
13753-22660 |
US $5.91 |
||
|
13753
|
13753
13753-22670 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.440 |
13753-22670 |
US $4.72 |
||
|
13753
|
13753
13753-22680 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.460 |
13753-22680 |
US $5.91 |
||
|
13753
|
13753
13753-22690 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.480 |
13753-22690 |
US $4.72 |
||
|
13753
|
13753
13753-22700 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.500 |
13753-22700 |
US $5.91 |
||
|
13753
|
13753
13753-22710 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.520 |
13753-22710 |
US $4.72 |
||
|
13753
|
13753
13753-22720 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.540 |
13753-22720 |
US $4.72 |
||
|
13753
|
13753
13753-22730 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.560 |
13753-22730 |
US $5.91 |
||
|
13753
|
13753
13753-22740 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.580 |
13753-22740 |
US $4.72 |
||
|
13753
|
13753
13753-22750 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.600 |
13753-22750 |
from US $4.72 |
||
|
13753
|
13753
13753-22760 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.620 |
13753-22760 |
US $4.72 |
||
|
13753
|
13753
13753-22770 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.640 |
13753-22770 |
US $4.72 |
||
|
13753
|
13753
13753-22780 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.660 |
13753-22780 |
US $4.72 |
||
|
13753
|
13753
13753-22790 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.680 |
13753-22790 |
US $4.72 |
||
|
13753
|
13753
13753-22800 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.700 |
13753-22800 |
US $4.72 |
||
|
13753
|
13753
13753-22810 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.720 |
13753-22810 |
US $4.72 |
||
|
13753
|
13753
13753-22820 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.740 |
13753-22820 |
US $4.72 |
||
|
13753
|
13753
13753-22830 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.760 |
13753-22830 |
US $4.72 |
||
|
13753
|
13753
13753-22840 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.780 |
13753-22840 |
US $4.72 |
||
|
13753
|
13753
13753-22850 Shim, Valve Adjusting[12.2007 -] 2URGSE..USE20 T=2.800 |
13753-22850 |
from US $4.13 |
||
|
13801
|
13801
13801-38010 Arm Sub-Assy, Valve Rocker, No.1[12.2007 -] 2URGSE..USE20 |
13801-38010 |
US $31.01 |
||
| replacement | |||||
|
13801
|
13801
13801-38030 Arm Sub-Assy, Valve Rocker, No.1[12.2007 -] 2URGSE..USE20 |
13801-38030 |
from US $29.05 |
||
|
13957
|
13957
13957-38010 Pivot, Valve Rocker Arm[12.2007 -] 2URGSE..USE20 |
13957-38010 |
from US $3.59 |
||
|
9011012012
|
9011012012
90110-12012 New Genuine Part |
90110-12012 |
US $4.48 |
||
|
9011912370
|
9011912370
90119-12370 Bolt(For Camshaft Timing Gear) |
90119-12370 |
from US $2.66 |
||
|
9025010030
|
9025010030
90250-10030 Pin, Straight(For Clutch Housing Set) |
90250-10030 |
from US $1.27 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.63 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.78 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
||
