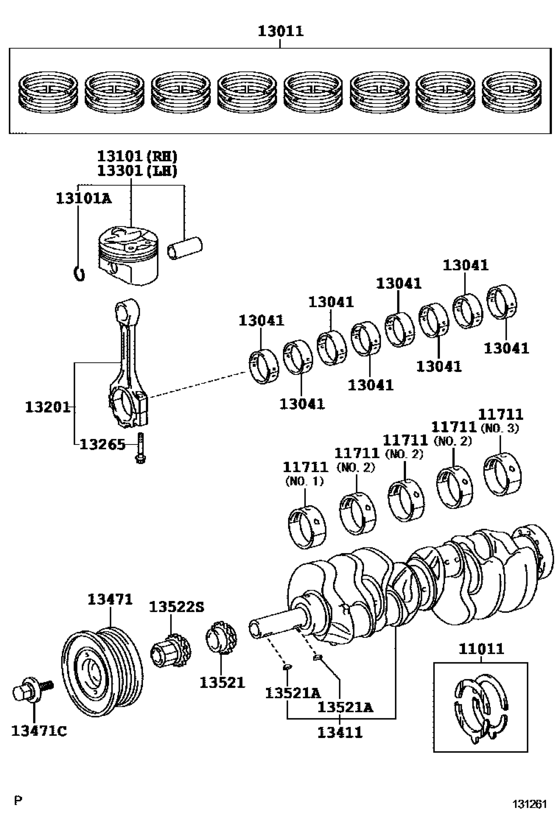

Crankshaft & Piston ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-38050 Washer Set, Crankshaft Thrust[12.2007 -] 2URGSE..USE20 STD |
11011-38050 |
from US $26.04 |
||
|
11711
|
11711
11071-38010-C4 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER3LOWER4,NO.2,REFER R/M |
11071-38010-C4 |
from US $18.85 |
||
|
11711
|
11711
11071-38010-D4 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER4LOWER4,NO.2,REFER R/M |
11071-38010-D4 |
from US $18.87 |
||
|
11711
|
11711
11071-38010-D5 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER4LOWER5,NO.2,REFER R/M |
11071-38010-D5 |
from US $19.08 |
||
|
11711
|
11711
11071-38010-E5 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER5LOWER5,NO.2,REFER R/M |
11071-38010-E5 |
from US $18.98 |
||
|
11711
|
11711
11071-38010-E6 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER5LOEWR6,NO.2,REFER R/M |
11071-38010-E6 |
from US $18.62 |
||
|
11711
|
11711
11071-38010-F6 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER6LOWER6,NO.2,REFER R/M |
11071-38010-F6 |
from US $21.15 |
||
|
11711
|
11711
11071-38010-F7 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER6LOWER7,NO.2,REFER R/M |
11071-38010-F7 |
from US $19.44 |
||
|
11711
|
11711
11071-38010-G7 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER7LOWER7,NO.2,REFER R/M |
11071-38010-G7 |
from US $21.47 |
||
|
11711
|
11711
11071-38010-G8 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER7LOWER8,NO.2,REFER R/M |
11071-38010-G8 |
from US $17.80 |
||
|
11711
|
11711
11071-38010-H8 Bearing, Crankshaft[12.2007 -] 2URGSE..USE20 MARKUPPER8LOWER8,NO.2,REFER R/M |
11071-38010-H8 |
US $32.79 |
||
|
11711
|
11711
11072-38010-D5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER4LOWER5,NO.3,REFER R/M |
11072-38010-D5 |
from US $18.70 |
||
|
11711
|
11711
11072-38010-E5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER5,NO.3,REFER R/M |
11072-38010-E5 |
US $19.23 |
||
|
11711
|
11711
11072-38010-E6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER6,NO.3,REFER R/M |
11072-38010-E6 |
from US $19.30 |
||
|
11711
|
11711
11072-38010-F6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER6,NO.3,REFER R/M |
11072-38010-F6 |
from US $19.84 |
||
|
11711
|
11711
11072-38010-F7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER7,NO.3,REFER R/M |
11072-38010-F7 |
from US $18.83 |
||
|
11711
|
11711
11072-38010-G7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER7,NO.3,REFER R/M |
11072-38010-G7 |
from US $18.51 |
||
|
11711
|
11711
11072-38010-G8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER8,NO.3,REFER R/M |
11072-38010-G8 |
from US $20.44 |
||
|
11711
|
11711
11072-38010-H8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER8LOWER8,NO.3,REFER R/M |
11072-38010-H8 |
from US $18.51 |
||
|
11711
|
11711
11072-38010-H9 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPWE8LOWER9,NO.3,REFER R/M |
11072-38010-H9 |
US $36.84 |
||
|
11711
|
11711
11072-38010-K9
Bearing, Crankshaft
[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER9LOWER9,NO.3,REFER R/M |
11072-38010-K9 |
— | ||
|
11711
|
11711
11701-38030-D5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER4LOWER5,NO.1,REFER R/M |
11701-38030-D5 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-D5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER4LOWER5,NO.1,REFER R/M |
11072-38010-D5 |
from US $18.70 |
||
|
11711
|
11711
11701-38030-E5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER5,NO.1,REFER R/M |
11701-38030-E5 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-E5 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER5,NO.1,REFER R/M |
11072-38010-E5 |
US $19.23 |
||
|
11711
|
11711
11701-38030-E6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER6,NO.1,REFER R/M |
11701-38030-E6 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-E6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER5LOWER6,NO.1,REFER R/M |
11072-38010-E6 |
from US $19.30 |
||
|
11711
|
11711
11701-38030-F6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER6,NO.1,REFER R/M |
11701-38030-F6 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-F6 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER6,NO.1,REFER R/M |
11072-38010-F6 |
from US $19.84 |
||
|
11711
|
11711
11701-38030-F7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER7,NO.1,REFER R/M |
11701-38030-F7 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-F7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER6LOWER7,NO.1,REFER R/M |
11072-38010-F7 |
from US $18.83 |
||
|
11711
|
11711
11701-38030-G7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER7,NO.1,REFER R/M |
11701-38030-G7 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-G7 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER7,NO.1,REFER R/M |
11072-38010-G7 |
from US $18.51 |
||
|
11711
|
11711
11701-38030-G8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER8,NO.1,REFER R/M |
11701-38030-G8 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-G8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER7LOWER8,NO.1,REFER R/M |
11072-38010-G8 |
from US $20.44 |
||
|
11711
|
11711
11701-38030-H8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER8LOWER8,NO.1,REFER R/M |
11701-38030-H8 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-H8 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER8LOWER8,NO.1,REFER R/M |
11072-38010-H8 |
from US $18.51 |
||
|
11711
|
11711
11701-38030-H9 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER8LOWER9,NO.1,REFER R/M |
11701-38030-H9 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-H9 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER8LOWER9,NO.1,REFER R/M |
11072-38010-H9 |
US $36.84 |
||
|
11711
|
11711
11701-38030-K9 Bearing, Crankshaft[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER9LOWER9,NO.1,REFER R/M |
11701-38030-K9 |
US $58.53 |
||
| replacement | |||||
|
11711
|
11711
11072-38010-K9
Bearing, Crankshaft
[12.2007 - 01.2009] 2URGSE..USE20 MARKUPPER9LOWER9,NO.1,REFER R/M |
11072-38010-K9 |
— | ||
|
13011
|
13011
13011-38090 Ring Set, Piston[12.2007 -] 2URGSE..USE20 STD |
13011-38090 |
US $403.66 |
||
|
13041
|
13041
13041-38080-02 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK2,REFER REPAIR MANUAL |
13041-38080-02 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-02 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK2,REFER REPAIR MANUAL |
13041-38081-02 |
from US $16.23 |
||
|
13041
|
13041
13041-38080-03 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK3,REFER REPAIR MANUAL |
13041-38080-03 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-03 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK3,REFER REPAIR MANUAL |
13041-38081-03 |
US $36.79 |
||
|
13041
|
13041
13041-38080-04 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK4,REFER REPAIR MANUAL |
13041-38080-04 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-04 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK4,REFER REPAIR MANUAL |
13041-38081-04 |
US $36.79 |
||
|
13041
|
13041
13041-38080-05 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK5,REFER REPAIR MANUAL |
13041-38080-05 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-05 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK5,REFER REPAIR MANUAL |
13041-38081-05 |
US $36.79 |
||
|
13041
|
13041
13041-38080-06 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK6,REFER REPAIR MANUAL |
13041-38080-06 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-06 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK6,REFER REPAIR MANUAL |
13041-38081-06 |
US $36.79 |
||
|
13041
|
13041
13041-38080-07 Bearing, Connecting Rod[12.2007 - 09.2008] 2URGSE..USE20 MARK7,REFER REPAIR MANUAL |
13041-38080-07 |
US $29.41 |
||
| replacement | |||||
|
13041
|
13041
13041-38081-07 Bearing, Connecting RodCONNECTING ROD [12.2007 - 09.2008] 2URGSE..USE20 MARK7,REFER REPAIR MANUAL |
13041-38081-07 |
US $36.79 |
||
|
13041
|
13041
13041-38081-02 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 2,REFER REPAIR MANUAL |
13041-38081-02 |
from US $16.23 |
||
|
13041
|
13041
13041-38081-03 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 3,REFER REPAIR MANUAL |
13041-38081-03 |
US $36.79 |
||
|
13041
|
13041
13041-38081-04 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 4,REFER REPAIR MANUAL |
13041-38081-04 |
US $36.79 |
||
|
13041
|
13041
13041-38081-05 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 5,REFER REPAIR MANUAL |
13041-38081-05 |
US $36.79 |
||
|
13041
|
13041
13041-38081-06 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 6,REFER REPAIR MANUAL |
13041-38081-06 |
US $36.79 |
||
|
13041
|
13041
13041-38081-07 Bearing, Connecting RodCONNECTING ROD [09.2008 -] 2URGSE..USE20 MARK 7,REFER REPAIR MANUAL |
13041-38081-07 |
US $36.79 |
||
|
13101
|
13101
13101-38120 Piston Sub-Assy, W/pin[12.2007 -] 2URGSE..USE20 STD |
13101-38120 |
US $70.32 |
||
| replacement | |||||
|
13101
|
13101
13101-38121 Piston Sub-Assy, W/pin[12.2007 -] 2URGSE..USE20 STD |
13101-38121 |
US $79.80 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[12.2007 -] 2URGSE..USE20 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-38042 Rod Sub-Assy, Connecting[12.2007 -] 2URGSE..USE20 |
13201-38042 |
US $139.78 |
||
|
13265
|
13265
13265-31020 Bolt, Connecting Rod[12.2007 -] 2URGSE..USE20 |
13265-31020 |
from US $3.06 |
||
|
13301
|
13301
13301-38020 Piston Sub-Assy, W/pin, Lh[12.2007 -] 2URGSE..USE20 STD |
13301-38020 |
US $70.32 |
||
| replacement | |||||
|
13301
|
13301
13301-38021 Piston Sub-Assy, W/pin, Lh[12.2007 -] 2URGSE..USE20 STD |
13301-38021 |
US $79.80 |
||
|
13411
|
13411
13401-38030 Crankshaft[12.2007 -] 2URGSE..USE20 |
13401-38030 |
US $2,679.04 |
||
|
13471
|
13471
13470-38030 Pulley, Crankshaft[12.2007 -] 2URGSE..USE20 |
13470-38030 |
US $342.41 |
||
|
13471C
|
13471C
90119-18003 Bolt(For Crankshaft Pulley Set)[12.2007 -] 2URGSE..USE20 |
90119-18003 |
from US $4.45 |
||
|
13521
|
13521
13521-38030 Gear Or Sprocket, Crankshaft Timing[12.2007 -] 2URGSE..USE20 |
13521-38030 |
from US $24.72 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[12.2007 -] 2URGSE..USE20 |
95161-30516 |
from US $1.06 |
||
|
13522S
|
13522S
13522-38030 Sprocket, Crankshaft Timing, Lh[12.2007 -] 2URGSE..USE20 |
13522-38030 |
from US $47.06 |
||
