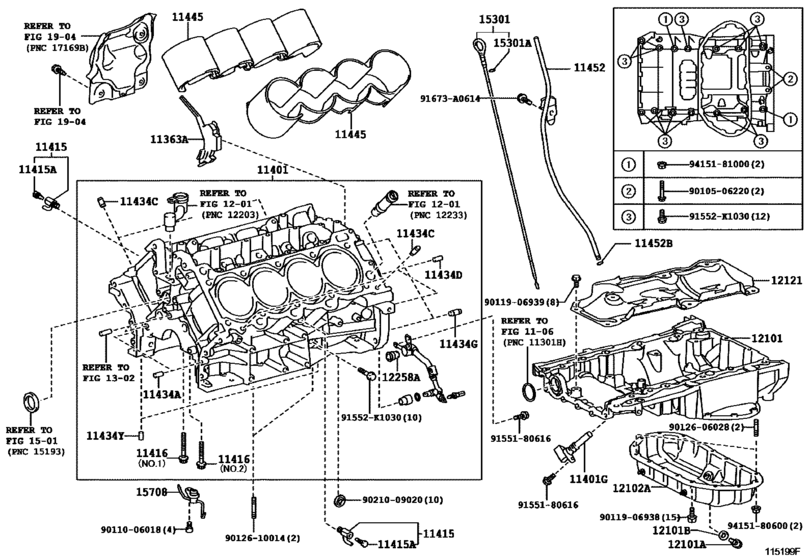

Cylinder Block ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363A
|
11363A
11363-38020 Cover, Flywheel Housing Side[12.2007 -] 2URGSE..USE20 |
11363-38020 |
US $9.76 |
||
|
11401
|
11401
11401-80770 Block Sub-Assy, Cylinder[12.2007 - 03.2010] 2URGSE..USE20 |
11401-80770 |
US $5,285.28 |
||
| replacements | |||||
|
11401
|
11401
11401-80832 Block Sub-Assy, Cylinder[12.2007 - 03.2010] 2URGSE..USE20 |
11401-80832 |
US $3,989.44 |
||
|
11401
|
11401
12109-38031 Pipe Sub-Assy, Oil DrainOIL DRAIN [12.2007 - 03.2010] 2URGSE..USE20 |
12109-38031 |
US $16.16 |
||
|
11401
|
11401
11401-80784 Block Sub-Assy, CylinderCYLINDER [03.2010 - 05.2014] 2URGSE..USE20 |
11401-80784 |
US $4,397.12 |
||
| replacement | |||||
|
11401
|
11401
11401-80832 Block Sub-Assy, Cylinder[03.2010 - 05.2014] 2URGSE..USE20 |
11401-80832 |
US $3,989.44 |
||
|
11401
|
11401
11401-80815 Block Sub-Assy, Cylinder[06.2014 - 08.2014] 2URGSE..USE20 |
11401-80815 |
US $4,397.12 |
||
| replacement | |||||
|
11401
|
11401
11401-80832 Block Sub-Assy, Cylinder[06.2014 - 08.2014] 2URGSE..USE20 |
11401-80832 |
US $3,989.44 |
||
|
11401G
|
11401G
90919-05071 Sensor, Crank Position[12.2007 -] 2URGSE..USE20 |
90919-05071 |
from US $69.38 |
||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.2007 -] 2URGSE..USE20 |
90910-09129 |
from US $6.63 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[12.2007 -] 2URGSE..USE20 |
90910-09087 |
from US $2.95 |
||
|
11416
|
11416
90910-02154 Bolt(For Crankshaft Bearing Cap Set)[12.2007 - 08.2014] 2URGSE..USE20 NO.1 |
90910-02154 |
from US $4.30 |
||
|
11416
|
11416
90910-02165 Bolt(For Crankshaft Bearing Cap Set)[12.2007 - 08.2014] 2URGSE..USE20 NO.2 |
90910-02165 |
from US $2.34 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[12.2007 -] 2URGSE..USE20 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[12.2007 -] 2URGSE..USE20 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434D
|
11434D
90250-04097 Pin, Straight(For Camshaft Housing Rh)[12.2007 -] 2URGSE..USE20 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[12.2007 -] 2URGSE..USE20 |
90250-10113 |
from US $0.97 |
||
|
11434Y
|
11434Y
90250-04097 Pin, Straight(For Camshaft Housing Rh)[12.2007 -] 2URGSE..USE20 |
90250-04097 |
US $0.90 |
||
|
11445
|
11445
11445-38010 Spacer, Cylinder Block Water Jacket[12.2007 -] 2URGSE..USE20 |
11445-38010 |
from US $15.31 |
||
|
11452
|
11452
11452-38060 Guide, Oil Level Gage[12.2007 -] 2URGSE..USE20 |
11452-38060 |
US $27.08 |
||
|
11452B
|
11452B
90301-09028 Ring, O(For Oil Level Gage Guide)[12.2007 -] 2URGSE..USE20 |
90301-09028 |
from US $2.51 |
||
|
12101
|
12101
12111-38090 Pan Sub-Assy, Oil[12.2007 - 03.2014] 2URGSE..USE20 |
12111-38090 |
US $567.84 |
||
| replacement | |||||
|
12101
|
12101
12111-38140 Pan Sub-Assy, Oil[12.2007 - 03.2014] 2URGSE..USE20 |
12111-38140 |
US $567.84 |
||
|
12101
|
12101
12111-38140 Pan Sub-Assy, Oil[03.2014 -] 2URGSE..USE20 |
12111-38140 |
US $567.84 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[12.2007 -] 2URGSE..USE20 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[12.2007 -] 2URGSE..USE20 |
90341-T0004 |
US $3.50 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[12.2007 -] 2URGSE..USE20 |
90430-12031 |
from US $0.82 |
||
|
12102A
|
12102A
12102-38020 Pan Sub-Assy, Oil, No.2[12.2007 - 02.2009] 2URGSE..USE20 |
12102-38020 |
US $206.75 |
||
| replacement | |||||
|
12102A
|
12102A
12102-38021 Pan Sub-Assy, Oil, No.2OIL, NO.2 [12.2007 - 02.2009] 2URGSE..USE20 |
12102-38021 |
from US $159.08 |
||
|
12102A
|
12102A
12102-38021 Pan Sub-Assy, Oil, No.2OIL, NO.2 [02.2009 -] 2URGSE..USE20 |
12102-38021 |
from US $159.08 |
||
|
12121
|
12121
12121-38100 Plate, Oil Pan Baffle, No.1[12.2007 -] 2URGSE..USE20 |
12121-38100 |
US $64.94 |
||
|
12258A
|
12258A
12269-38010 Gasket, Oil Return Pipe[12.2007 -] 2URGSE..USE20 |
12269-38010 |
from US $4.79 |
||
|
15301
|
15301
15301-38090 Gage Sub-Assy, Oil Level[12.2007 -] 2URGSE..USE20 |
15301-38090 |
US $10.05 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[12.2007 -] 2URGSE..USE20 |
96741-19005 |
from US $2.36 |
||
|
15708
|
15708
15708-38020
Nozzle Sub-Assy, Oil, No.1
[12.2007 - 05.2014] 2URGSE..USE20 |
15708-38020 |
— | ||
| replacement | |||||
|
15708
|
15708
15708-38030 Nozzle Sub-Assy, Oil, No.1[12.2007 - 05.2014] 2URGSE..USE20 |
15708-38030 |
US $18.31 |
||
|
15708
|
15708
15708-38030 Nozzle Sub-Assy, Oil, No.1[06.2014 - 08.2014] 2URGSE..USE20 |
15708-38030 |
US $18.31 |
||
|
91552K1030
|
91552K1030
91552-K1030 BOLT FLANGE |
91552-K1030 |
US $0.93 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
9010506220
|
9010506220
90105-06220 BOLT WASHER BASED |
90105-06220 |
US $1.79 |
||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.68 |
||
|
9011906938
|
9011906938
90119-06938 BOLT WWASHER |
90119-06938 |
from US $0.63 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.63 |
||
|
9012610014
|
9012610014
90126-10014 Bolt, Stud(For Manifold To Cylinder Head) |
90126-10014 |
from US $3.29 |
||
|
9021009020
|
9021009020
90210-09020 WASHER SEAL |
90210-09020 |
from US $0.84 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
