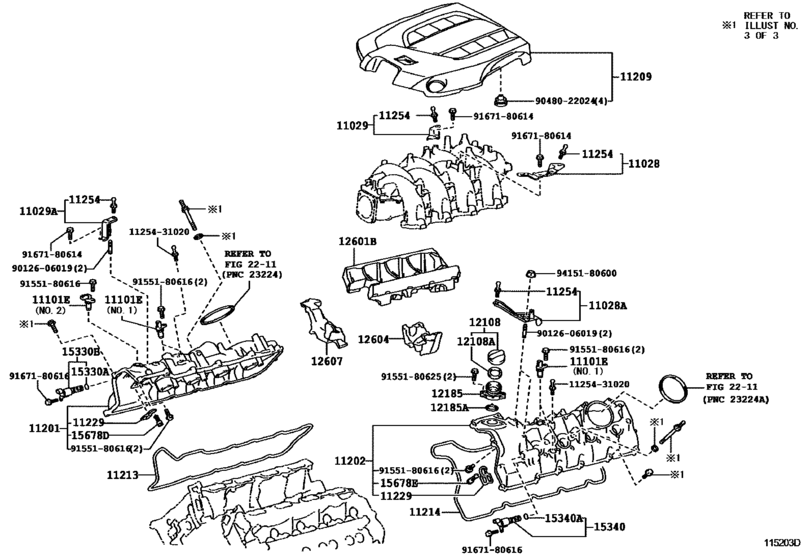

Cylinder Head ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11028
|
11028
11028-38020 Bracket Sub-Assy, V-Bank Cover, No.2[12.2007 -] 2URGSE..USE20 |
11028-38020 |
US $15.72 |
||
|
11028A
|
11028A
1102B-38010 Bracket Sub-Assy, V-Bank Cover, No.4[12.2007 -] 2URGSE..USE20 |
1102B-38010 |
US $13.10 |
||
|
11029
|
11029
11029-38020 Bracket Sub-Assy, V-Bank Cover[12.2007 -] 2URGSE..USE20 |
11029-38020 |
US $5.39 |
||
|
11029A
|
11029A
1102A-38010 Bracket Sub-Assy, V-Bank Cover, No.3[12.2007 -] 2URGSE..USE20 |
1102A-38010 |
US $10.05 |
||
|
11101E
|
11101E
90919-05060 Sensor, Cam Position[12.2007 -] 2URGSE..USE20 NO.1 |
90919-05060 |
from US $69.38 |
||
|
11101E
|
11101E
90919-05061 Sensor, Cam Position[12.2007 -] 2URGSE..USE20 NO.2 |
90919-05061 |
from US $69.38 |
||
|
11201
|
11201
11201-38080 Cover Sub-Assy, Cylinder Head[12.2007 -] 2URGSE..USE20 |
11201-38080 |
US $228.59 |
||
|
11202
|
11202
11202-38040 Cover Sub-Assy, Cylinder Head, Lh[12.2007 -] 2URGSE..USE20 |
11202-38040 |
US $228.59 |
||
|
11209
|
11209
11209-38040 Cover Sub-Assy, V-Bank[12.2007 - 07.2010] 2URGSE..USE20 |
11209-38040 |
US $410.59 |
||
| replacement | |||||
|
11209
|
11209
11209-38130 Cover Sub-Assy, V-Bank[12.2007 - 07.2010] 2URGSE..USE20 |
11209-38130 |
US $438.55 |
||
|
11209
|
11209
11209-38130 Cover Sub-Assy, V-Bank[08.2010 -] 2URGSE..USE20 |
11209-38130 |
US $438.55 |
||
|
11213
|
11213
11213-38060 Gasket, Cylinder Head Cover[12.2007 -] 2URGSE..USE20 |
11213-38060 |
from US $22.74 |
||
|
11214
|
11214
11214-38040 Gasket, Cylinder Head Cover, No.2[12.2007 -] 2URGSE..USE20 |
11214-38040 |
from US $23.20 |
||
|
11229
|
11229
11229-38030 Gasket, Cylinder Head Cover, No.3[12.2007 -] 2URGSE..USE20 |
11229-38030 |
from US $3.80 |
||
|
11254
|
11254
11254-31020 Bracket, V-Bank Cover, No.1[08.2009 -] 2URGSE..USE20 |
11254-31020 |
US $1.79 |
||
|
11254
|
11254
90109-06385 Bolt , V-Bank Cover, No.1[12.2007 - 08.2009] 2URGSE..USE20 |
90109-06385 |
from US $0.72 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[12.2007 -] 2URGSE..USE20 |
12180-38010 |
from US $11.13 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[12.2007 -] 2URGSE..USE20 |
90430-35001 |
from US $1.10 |
||
|
12185
|
12185
12185-38020 Housing, Oil Filler Cap[12.2007 -] 2URGSE..USE20 |
12185-38020 |
from US $17.10 |
||
|
12185A
|
12185A
12196-38010 Gasket, Oil Filler Cap Housing[12.2007 -] 2URGSE..USE20 |
12196-38010 |
from US $3.15 |
||
|
12601B
|
12601B
12601-38030 Cover Sub-Assy, Engine, No.1[12.2007 -] 2URGSE..USE20 |
12601-38030 |
US $103.38 |
||
|
12604
|
12604
12604-38010 Cover Sub-Assy, Engine, No.4[12.2007 -] 2URGSE..USE20 |
12604-38010 |
US $17.14 |
||
|
12607
|
12607
12607-38020 Cover Sub-Assy, Engine, Lh No.2[12.2007 -] 2URGSE..USE20 |
12607-38020 |
US $13.69 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[12.2007 -] 2URGSE..USE20 |
90099-14137 |
from US $2.11 |
||
|
15330B
|
15330B
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[12.2007 -] 2URGSE..USE20 |
15330-38010 |
from US $82.84 |
||
| replacement | |||||
|
15330B
|
15330B
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[12.2007 -] 2URGSE..USE20 |
15330-0S010 |
US $278.93 |
||
|
15340
|
15340
15330-38010 Valve Assy, Cam Timing Oil Control, Rh[12.2007 -] 2URGSE..USE20 |
15330-38010 |
from US $82.84 |
||
| replacement | |||||
|
15340
|
15340
15330-0S010 Valve Assy, Cam Timing Oil Control, Rh[12.2007 -] 2URGSE..USE20 |
15330-0S010 |
US $278.93 |
||
|
15340A
|
15340A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[12.2007 -] 2URGSE..USE20 |
90099-14137 |
from US $2.11 |
||
|
15678D
|
15678D
15678-46020 Filter, Oil Control Valve[12.2007 -] 2URGSE..USE20 |
15678-46020 |
from US $3.38 |
||
|
15678E
|
15678E
15678-46020 Filter, Oil Control Valve[12.2007 -] 2URGSE..USE20 |
15678-46020 |
from US $3.38 |
||
|
1125431020
|
1125431020
11254-31020 Bracket, V-Bank Cover, No.1 |
11254-31020 |
US $1.79 |
||
|
9012606019
|
9012606019
90126-06019 New Genuine Part |
90126-06019 |
US $2.33 |
||
|
9048022024
|
9048022024
90480-22024 Grommet |
90480-22024 |
from US $2.03 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
