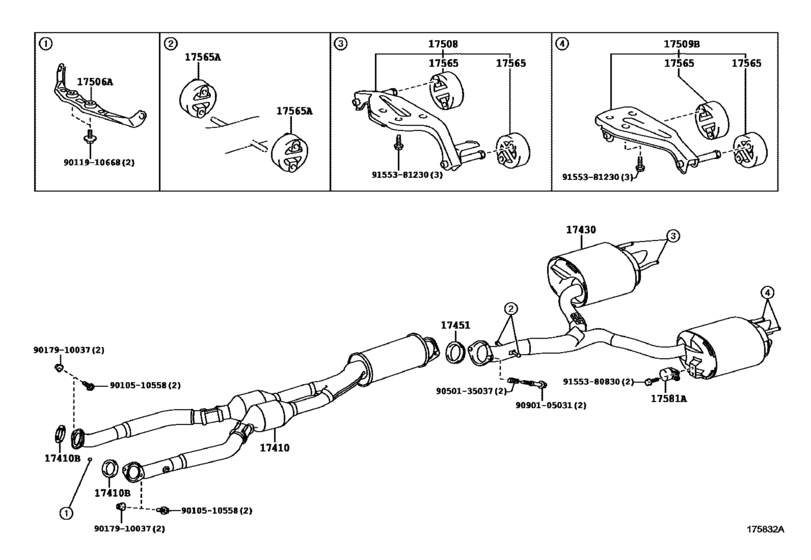

Exhaust Pipe ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-38260 Pipe Assy, Exhaust, Front[12.2007 -] 2URGSE..USE20 *114=TOYOTA/PA1/Y |
17410-38260 |
US $1,907.36 |
||
|
17410B
|
17410B
90917-06078 Gasket, Exhaust Pipe[12.2007 -] 2URGSE..USE20 |
90917-06078 |
from US $5.93 |
||
| replacement | |||||
|
17410B
|
17410B
90917-A6003 Gasket, Exhaust Pipe[12.2007 -] 2URGSE..USE20 |
90917-A6003 |
US $27.68 |
||
|
17430
|
17430
17430-38520 Pipe Assy, Exhaust, Tail[12.2007 -] 2URGSE..USE20 |
17430-38520 |
US $710.53 |
||
|
17451
|
17451
17451-22050 Gasket, Exhaust Pipe[12.2007 -] 2URGSE..USE20 |
17451-22050 |
from US $40.87 |
||
|
17506A
|
17506A
17506-38140 Bracket Sub-Assy, Exhaust Pipe No.1 Support[12.2007 -] 2URGSE..USE20 |
17506-38140 |
US $15 |
||
|
17508
|
17508
17508-38110 Support Sub-Assy, Exhaust Pipe, No.3[12.2007 -] 2URGSE..USE20 |
17508-38110 |
US $35.09 |
||
|
17509B
|
17509B
17509-38040 Support, Exhaust Pipe No.4[12.2007 -] 2URGSE..USE20 |
17509-38040 |
US $35.09 |
||
|
17565
|
17565
17565-28010 Support, Exhaust Pipe, No.1[12.2007 -] 2URGSE..USE20 |
17565-28010 |
from US $9.22 |
||
|
17565A
|
17565A
17565-28010 Support, Exhaust Pipe, No.1[12.2007 -] 2URGSE..USE20 |
17565-28010 |
from US $9.22 |
||
|
17581A
|
17581A
17581-46140 Damper, Exhaust Pipe[12.2007 -] 2URGSE..USE20 |
17581-46140 |
US $40.15 |
||
|
9010510558
|
9010510558
90105-10558 BOLT FLANGE |
90105-10558 |
from US $0.87 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.33 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.24 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.39 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.25 |
||
|
9090105031
|
9090105031
90901-05031 BOLT |
90901-05031 |
from US $4.12 |
||
|
9155380830
|
9155380830
91553-80830 Bolt(For Transaxle & Engine Setting) |
91553-80830 |
US $1.43 |
||
|
9155381230
|
9155381230
91553-81230 BOLT FLANGE |
91553-81230 |
US $4.48 |
||
