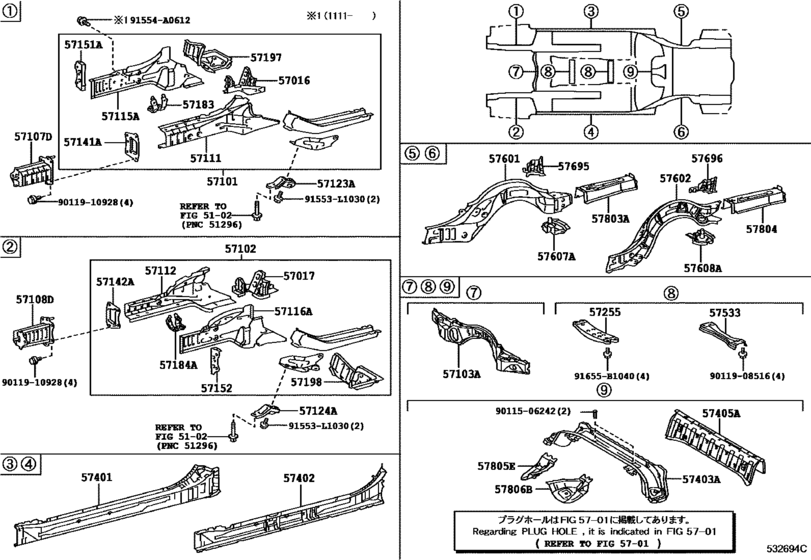

Floor Side Member ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57016
|
57016
57016-30040 Reinforcement Sub-Assy, Front Side Member, Rh[12.2007 -] USE20 |
57016-30040 |
US $72.65 |
||
|
57017
|
57017
57017-30040 Reinforcement Sub-Assy, Front Side Member, Lh[12.2007 -] USE20 |
57017-30040 |
US $72.65 |
||
|
57101
|
57101
57101-30163 Member Sub-Assy, Front Side, Rh[12.2007 -] USE20 |
57101-30163 |
US $502.32 |
||
|
57102
|
57102
57102-30143 Member Sub-Assy, Front Side, Lh[12.2007 -] USE20 |
57102-30143 |
US $502.32 |
||
|
57103A
|
57103A
57103-30021 Crossmenber Sub-Assy, Floor, No.3[12.2007 - 05.2012] USE20..RHD |
57103-30021 |
US $238.78 |
||
| replacement | |||||
|
57103A
|
57103A
57103-30022 Crossmenber Sub-Assy, Floor, No.3[12.2007 - 05.2012] USE20..RHD |
57103-30022 |
US $179.09 |
||
|
57103A
|
57103A
57103-30022 Crossmenber Sub-Assy, Floor, No.3[06.2012 -] USE20..RHD |
57103-30022 |
US $179.09 |
||
|
57107D
|
57107D
57107-30061 Reinforce Sub-Assy, Front Bumper Mounting, Rh[12.2007 - 08.2014] USE20 |
57107-30061 |
from US $104.98 |
||
|
57108D
|
57108D
57108-30080 Reinforce Sub-Assy, Front Bumper Mounting, Lh[12.2007 - 10.2011] USE20 |
57108-30080 |
US $96.10 |
||
| replacement | |||||
|
57108D
|
57108D
57108-30081 Reinforce Sub-Assy, Front Bumper Mounting, Lh[12.2007 - 10.2011] USE20 |
57108-30081 |
US $166.40 |
||
|
57108D
|
57108D
57108-30120 Reinforce Sub-Assy, Front Bumper Mounting, Lh[11.2011 - 01.2013] USE20 |
57108-30120 |
US $116.48 |
||
| replacement | |||||
|
57108D
|
57108D
57108-30121 Reinforce Sub-Assy, Front Bumper Mounting, Lh[11.2011 - 01.2013] USE20 |
57108-30121 |
US $119.92 |
||
|
57108D
|
57108D
57108-30121 Reinforce Sub-Assy, Front Bumper Mounting, Lh[02.2013 - 08.2014] USE20 |
57108-30121 |
US $119.92 |
||
|
57111
|
57111
57111-30082 Member, Front Side, Rh[12.2007 -] USE20 |
57111-30082 |
US $147.06 |
||
|
57112
|
57112
57112-30082 Member, Front Side, Lh[12.2007 -] USE20 |
57112-30082 |
US $156.72 |
||
|
57115A
|
57115A
57115-30060 Plate, Front Side Member, Outer Rh[12.2007 -] USE20 |
57115-30060 |
US $82.99 |
||
|
57116A
|
57116A
57116-30030 Plate, Front Side Member, Outer Lh[12.2007 -] USE20 |
57116-30030 |
US $82.99 |
||
|
57123A
|
57123A
57305-30010 Reinforcement, Strut Bar Bracket, Rh[12.2007 -] USE20 |
57305-30010 |
US $33.20 |
||
|
57124A
|
57124A
57306-30010 Reinforcement, Strut Bar Bracket, Lh[12.2007 -] USE20 |
57306-30010 |
US $33.20 |
||
|
57141A
|
57141A
57141-30040 Support, Front Bumper Arm, Rh[12.2007 -] USE20 |
57141-30040 |
US $25.87 |
||
|
57142A
|
57142A
57142-30040 Support, Front Bumper Arm, Lh[12.2007 -] USE20 |
57142-30040 |
US $25.87 |
||
|
57151A
|
57151A
57151-30040 Reinforcement, Front Side Member, No.1 Rh[12.2007 -] USE20 |
57151-30040 |
US $18.98 |
||
|
57152
|
57152
57152-30040 Reinforcement, Front Side Member, No.1 Lh[12.2007 -] USE20 |
57152-30040 |
US $15.14 |
||
|
57183
|
57183
57183-30030 Plate, Front Side Member, No.4 Rh[12.2007 -] USE20 |
57183-30030 |
US $17.76 |
||
|
57184A
|
57184A
57184-30020 Plate, Front Side Member, No.4 Lh[12.2007 -] USE20 |
57184-30020 |
US $17.76 |
||
|
57197
|
57197
57197-30040 Box, Torque, Front Rh[12.2007 -] USE20 |
57197-30040 |
US $61.15 |
||
|
57198
|
57198
57198-30041 Box, Torque, Front Lh[12.2007 -] USE20 |
57198-30041 |
US $61.15 |
||
|
57255
|
57255
57255-30080 Member, Engine Rear Mounting[12.2007 -] USE20 |
57255-30080 |
from US $113.57 |
||
|
57401
|
57401
57401-53020 Member Sub-Assy, Main Floor Side, Rh[12.2007 - 05.2011] USE20 |
57401-53020 |
US $470.29 |
||
| replacement | |||||
|
57401
|
57401
57401-53021 Member Sub-Assy, Main Floor Side, Rh[12.2007 - 05.2011] USE20 |
57401-53021 |
US $391.66 |
||
|
57401
|
57401
57401-53021 Member Sub-Assy, Main Floor Side, Rh[06.2011 -] USE20 |
57401-53021 |
US $391.66 |
||
|
57402
|
57402
57402-53020 Member Sub-Assy, Main Floor Side, Lh[12.2007 - 05.2011] USE20 |
57402-53020 |
US $470.29 |
||
| replacement | |||||
|
57402
|
57402
57402-53021 Member Sub-Assy, Main Floor Side, Lh[12.2007 - 05.2011] USE20 |
57402-53021 |
US $391.66 |
||
|
57402
|
57402
57402-53021 Member Sub-Assy, Main Floor Side, Lh[06.2011 -] USE20 |
57402-53021 |
US $391.66 |
||
|
57403A
|
57403A
57430-30011 Member Sub-Assy, Center Floor Cross, No.3[12.2007 - 11.2012] USE20 |
57430-30011 |
US $267.90 |
||
|
57403A
|
57403A
57430-30012 Member Sub-Assy, Center Floor Cross, No.3[11.2012 -] USE20 |
57430-30012 |
US $202.38 |
||
|
57405A
|
57405A
57405-30050 Member Sub-Assy, Center Floor Cross, No.2[12.2007 -] USE20 |
57405-30050 |
US $106.29 |
||
|
57533
|
57533
57533-30050 Brace, Front Floor, Center[12.2007 -] USE20 |
57533-30050 |
US $22.54 |
||
|
57601
|
57601
57601-30917 Member Sub-Assy, Rear Floor Side, Rh[12.2007 - 08.2012] USE20 |
57601-30917 |
US $304.30 |
||
| replacement | |||||
|
57601
|
57601
57601-30922 Member Sub-Assy, Rear Floor Side, Rh[12.2007 - 08.2012] USE20 |
57601-30922 |
from US $230.05 |
||
|
57601
|
57601
57601-30922 Member Sub-Assy, Rear Floor Side, Rh[09.2012 -] USE20 |
57601-30922 |
from US $230.05 |
||
|
57602
|
57602
57602-30928 Member Sub-Assy, Rear Floor Side, Lh[12.2007 - 08.2012] USE20 |
57602-30928 |
US $304.30 |
||
| replacement | |||||
|
57602
|
57602
57602-30934 Member Sub-Assy, Rear Floor Side, Lh[12.2007 - 08.2012] USE20 |
57602-30934 |
US $230.05 |
||
|
57602
|
57602
57602-30934 Member Sub-Assy, Rear Floor Side, Lh[09.2012 -] USE20 |
57602-30934 |
US $230.05 |
||
|
57607A
|
57607A
57607-53020 Member Sub-Assy, Rear Floor Cross, No.3[12.2007 -] USE20 |
57607-53020 |
US $65.37 |
||
|
57608A
|
57608A
57608-53030 Member Sub-Assy, Rear Floor Cross, No.4[12.2007 -] USE20 |
57608-53030 |
US $65.37 |
||
|
57695
|
57695
57695-22020 Extension, Rear Floor Cross Rear Side, Rh[12.2007 - 02.2009] USE20 |
57695-22020 |
US $29.41 |
||
|
57695
|
57695
57695-53030 Extension, Rear Floor Cross Rear Side, RhREAR FLOOR CROSS REAR SIDE, RH [02.2009 -] USE20 |
57695-53030 |
US $19.22 |
||
|
57696
|
57696
57696-22020 Extension, Rear Floor Cross Rear Side, Lh[12.2007 - 02.2009] USE20 |
57696-22020 |
US $29.41 |
||
|
57696
|
57696
57696-53020 Extension, Rear Floor Cross Rear Side, LhREAR FLOOR CROSS REAR SIDE, LH [02.2009 -] USE20 |
57696-53020 |
US $19.22 |
||
|
57803A
|
57803A
57803-53030 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh[12.2007 -] USE20 |
57803-53030 |
US $70.18 |
||
|
57804
|
57804
57804-53030 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh[12.2007 -] USE20 |
57804-53030 |
from US $70.18 |
||
|
57805E
|
57805E
57805-30060 Reinforcement Sub-Assy, Belt Anchor, Rh[12.2007 -] USE20 |
57805-30060 |
from US $28.10 |
||
|
57806B
|
57806B
57806-30050 Reinforcement Sub-Assy, Belt Anchor, Lh[12.2007 -] USE20 |
57806-30050 |
US $28.10 |
||
|
91553L1030
|
91553L1030
91553-L1030 New Genuine Part |
91553-L1030 |
US $2.15 |
||
|
91554A0612
|
91554A0612
91554-A0612 New Genuine Part |
91554-A0612 |
US $1.08 |
||
|
91655B1040
|
91655B1040
91655-B1040 BOLT WWASHER |
91655-B1040 |
US $2.33 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $1.08 |
||
|
9011908516
|
9011908516
90119-08516 BOLT |
90119-08516 |
from US $0.78 |
||
|
9011910928
|
9011910928
90119-10928 BOLT WWASHER |
90119-10928 |
US $2.15 |
||
