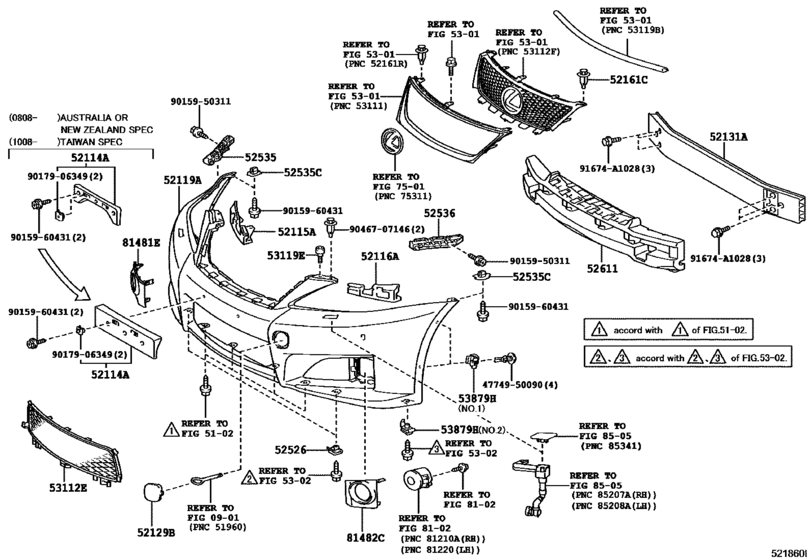

Front Bumper & Bumper Stay ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52114A
|
52114A
52114-53090
Bracket, Front Bumper Extention Mounting
[12.2007 -] USE20 |
52114-53090 |
— | ||
|
52114A
|
52114A
52114-53100 Bracket, Front Bumper Extention Mounting[08.2008 - 08.2010] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
52114-53100 |
US $34.86 |
||
|
52115A
|
52115A
52115-53040 Support, Front Bumper Side, Rh[12.2007 - 08.2010] USE20 |
52115-53040 |
US $69.60 |
||
| replacement | |||||
|
52115A
|
52115A
52115-53042 Support, Front Bumper Side, Rh[12.2007 - 08.2010] USE20 |
52115-53042 |
from US $75.53 |
||
|
52115A
|
52115A
52115-53041 Support, Front Bumper Side, Rh[08.2010 - 10.2010] USE20 |
52115-53041 |
US $69.60 |
||
| replacement | |||||
|
52115A
|
52115A
52115-53042 Support, Front Bumper Side, Rh[08.2010 - 10.2010] USE20 |
52115-53042 |
from US $75.53 |
||
|
52115A
|
52115A
52115-53042 Support, Front Bumper Side, Rh[11.2010 - 08.2014] USE20 |
52115-53042 |
from US $75.53 |
||
|
52116A
|
52116A
52116-53040 Support, Front Bumper Side, Lh[12.2007 - 08.2010] USE20 |
52116-53040 |
US $69.60 |
||
| replacement | |||||
|
52116A
|
52116A
52116-53042 Support, Front Bumper Side, Lh[12.2007 - 08.2010] USE20 |
52116-53042 |
from US $77.54 |
||
|
52116A
|
52116A
52116-53041
Support, Front Bumper Side, Lh
[08.2010 - 10.2010] USE20 |
52116-53041 |
— | ||
| replacement | |||||
|
52116A
|
52116A
52116-53042 Support, Front Bumper Side, Lh[08.2010 - 10.2010] USE20 |
52116-53042 |
from US $77.54 |
||
|
52116A
|
52116A
52116-53042 Support, Front Bumper Side, Lh[11.2010 - 08.2014] USE20 |
52116-53042 |
from US $77.54 |
||
|
52119A
|
52119A
52119-53942
Cover, Front Bumper
[12.2007 - 06.2009] USE20 |
52119-53942 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-53972
Cover, Front Bumper
[12.2007 - 06.2009] USE20 |
52119-53972 |
— | ||
|
52119A
|
52119A
52119-53943
Cover, Front Bumper
[12.2007 - 06.2009] USE20 CLEARANCE & BACK SONAR-WITH |
52119-53943 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-53973
Cover, Front Bumper
[12.2007 - 06.2009] USE20 CLEARANCE & BACK SONAR-WITH |
52119-53973 |
— | ||
|
52119A
|
52119A
52119-53956
Cover, Front Bumper
[08.2008 - 06.2009] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
52119-53956 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-53974
Cover, Front Bumper
[08.2008 - 06.2009] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
52119-53974 |
— | ||
|
52119A
|
52119A
52119-53957
Cover, Front Bumper
[08.2008 - 06.2009] USE20..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH; USE20..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53957 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-53975
Cover, Front Bumper
[08.2008 - 06.2009] USE20..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH; USE20..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53975 |
— | ||
|
52119A
|
52119A
52119-53972
Cover, Front Bumper
[06.2009 - 08.2014] USE20 |
52119-53972 |
— | ||
|
52119A
|
52119A
52119-53973
Cover, Front Bumper
[06.2009 - 08.2010] USE20 CLEARANCE & BACK SONAR-WITH |
52119-53973 |
— | ||
|
52119A
|
52119A
52119-53974
Cover, Front Bumper
[06.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC; USE20..RHD AUSTRALIA SPEC |
52119-53974 |
— | ||
|
52119A
|
52119A
52119-53975
Cover, Front Bumper
[06.2009 - 08.2010] USE20..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH; USE20..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53975 |
— | ||
|
52119A
|
52119A
52119-5A940
Cover, Front Bumper
[08.2010 - 08.2014] USE20 CLEARANCE & BACK SONAR-WITH |
52119-5A940 |
— | ||
|
52119A
|
52119A
52119-5A941
Cover, Front Bumper
[08.2010 - 08.2014] USE20..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH; USE20..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH; USE20..LHD TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH |
52119-5A941 |
— | ||
|
52129B
|
52129B
52129-53903 Cover, Front Bumper, LowerFRONT BUMPER, LOWER [12.2007 - 08.2014] USE20 |
52129-53903 |
US $10.47 |
||
|
52131A
|
52131A
52131-30260 Reinforcement, Front Bumper[12.2007 -] USE20 |
52131-30260 |
US $426.61 |
||
|
52161C
|
52161C
52161-16010 Clip[12.2007 - 08.2014] USE20 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[12.2007 - 08.2014] USE20 |
52161-0K040 |
from US $1.46 |
||
|
52161C
|
52161C
52161-02020 Clip[12.2007 - 08.2014] USE20 |
52161-02020 |
US $5.27 |
||
|
52526
|
52526
52526-53020 Retainer, Front Bumper, Lower Side[12.2007 - 08.2014] USE20 |
52526-53020 |
from US $1.41 |
||
|
52535
|
52535
52535-53020 Retainer, Front Bumper Side, Rh[12.2007 -] USE20 |
52535-53020 |
from US $59.49 |
||
|
52535C
|
52535C
52535-50060 Retainer, Front Bumper Side[12.2007 -] USE20 |
52535-50060 |
from US $3.55 |
||
|
52536
|
52536
52536-53020 Retainer, Front Bumper Side, Lh[12.2007 -] USE20 |
52536-53020 |
from US $59.49 |
||
|
52611
|
52611
52611-53080 Absorber, Front Bumper Energy[12.2007 -] USE20 |
52611-53080 |
US $182.28 |
||
|
53112E
|
53112E
53112-53020 Grille, Radiator, Lower No.1[12.2007 -] USE20 |
53112-53020 |
from US $53.45 |
||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[12.2007 -] USE20 |
53119-53021 |
from US $7.71 |
||
|
53879H
|
53879H
53879-17020 Retainer, Front Fender Liner[12.2007 - 08.2014] USE20 NO.2 |
53879-17020 |
from US $2.05 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[12.2007 - 08.2014] USE20 NO.1 |
53879-50020 |
from US $4.58 |
||
|
81481E
|
81481E
81481-53010 Cover, Fog Lamp, Rh[12.2007 - 08.2014] USE20 |
81481-53010 |
from US $25.14 |
||
|
81482C
|
81482C
81482-53010 Cover, Fog Lamp, Lh[12.2007 - 08.2014] USE20 |
81482-53010 |
from US $25.27 |
||
|
91674A1028
|
91674A1028
91674-A1028 BOLT FLANGE |
91674-A1028 |
from US $1.14 |
||
|
4774950090
|
4774950090
47749-50090 Clip, Pin Hold |
47749-50090 |
from US $0.51 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.27 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.46 |
||
