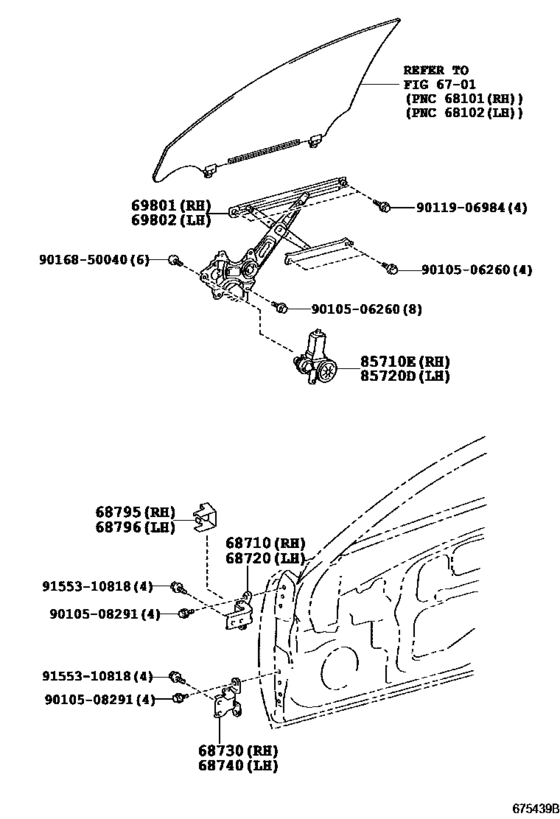

Front Door Window Regulator & Hinge ([12.2007 - ] (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[12.2007 - 08.2014] USE20 |
68710-12151 |
from US $29.91 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[12.2007 -] USE20 |
68720-12151 |
from US $30.97 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[12.2007 -] USE20 |
68730-33021 |
from US $35.85 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[12.2007 -] USE20 |
68740-33021 |
from US $35 |
||
|
68795
|
68795
68795-53010 Cover, Door Hinge, No.1 Rh[12.2007 -] USE20 |
68795-53010 |
US $14.52 |
||
|
68796
|
68796
68796-53010 Cover, Door Hinge, No.1 Lh[12.2007 -] USE20 |
68796-53010 |
US $14.52 |
||
|
69801
|
69801
69801-30260 Regulator Sub-Assy, Front Door Window, Rh[12.2007 -] USE20 |
69801-30260 |
from US $89.64 |
||
|
69802
|
69802
69802-30260 Regulator Sub-Assy, Front Door Window, Lh[12.2007 -] USE20 |
69802-30260 |
from US $87.38 |
||
|
85710E
|
85710E
85710-53050 Motor Assy, Power Window Regulator, Rh[08.2008 - 09.2012] USE20 |
85710-53050 |
US $460.10 |
||
| replacement | |||||
|
85710E
|
85710E
85710-53051 Motor Assy, Power Window Regulator, Rh[08.2008 - 09.2012] USE20 |
85710-53051 |
US $381.47 |
||
|
85710E
|
85710E
85710-53051 Motor Assy, Power Window Regulator, Rh[10.2012 -] USE20 |
85710-53051 |
US $381.47 |
||
|
85710E
|
85710E
85710-58010 Motor Assy, Power Window Regulator, Rh[12.2007 - 08.2008] USE20 |
85710-58010 |
from US $292.51 |
||
|
85720D
|
85720D
85720-53050 Motor Assy, Power Window Regulator, Lh[08.2008 - 09.2012] USE20 |
85720-53050 |
US $460.10 |
||
| replacement | |||||
|
85720D
|
85720D
85720-53051 Motor Assy, Power Window Regulator, Lh[08.2008 - 09.2012] USE20 |
85720-53051 |
from US $381.47 |
||
|
85720D
|
85720D
85720-53051 Motor Assy, Power Window Regulator, Lh[10.2012 -] USE20 |
85720-53051 |
from US $381.47 |
||
|
85720D
|
85720D
85720-58010 Motor Assy, Power Window Regulator, Rh[12.2007 - 08.2008] USE20 |
85720-58010 |
from US $286.86 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
|
9155310818
|
9155310818
91553-10818 BOLT FLANGE |
91553-10818 |
US $1.97 |
||
