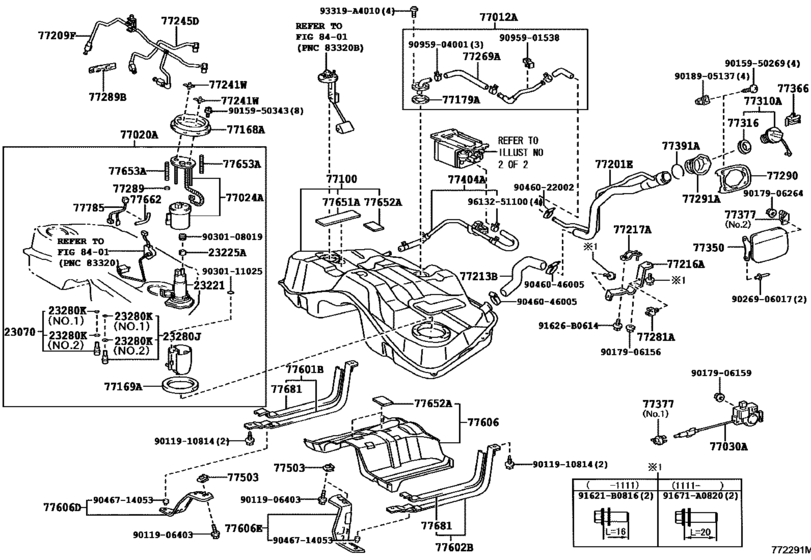

Fuel Tank & Tube ([12.2007 - ] FUEL TANK (0712- )) Diagram Toyota LEXUS IS
- Year
- 2007 - 2014
- Sales region
- Europe
- Frame
- USE20
- ENGINE
- 2URGSE
- Model
- IS F
- From
- 12.2007
- To
- 08.2014
- Vehicle Model
- IS F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-38020 Valve Assy, Fuel Main[12.2007 - 08.2014] 2URGSE..USE20 |
23070-38020 |
from US $33.33 |
||
|
23221
|
23221
23220-38041 Pump Assy, Fuel W/filter[12.2007 -] 2URGSE..USE20 |
23220-38041 |
from US $406.98 |
||
|
23225A
|
23225A
23225-23010 Spacer, Fuel Pump[12.2007 - 08.2014] 2URGSE..USE20 |
23225-23010 |
from US $0.72 |
||
|
23280J
|
23280J
23280-38020 Valve Assy, Fuel Main[12.2007 - 08.2014] 2URGSE..USE20 |
23280-38020 |
from US $50.27 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[12.2007 -] 2URGSE..USE20 NO.1 |
90301-04013 |
from US $2.07 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[12.2007 -] 2URGSE..USE20 NO.2 |
90301-15024 |
from US $2.09 |
||
|
77012A
|
77012A
77012-53040 Tube Sub-Assy, Fuel Tank Breather, No.1[12.2007 -] USE20 |
77012-53040 |
US $82.99 |
||
|
77020A
|
77020A
77020-53131 Tube Assy, Fuel Suction W/pump & Gage[12.2007 -] USE20 |
77020-53131 |
US $589.68 |
||
|
77024A
|
77024A
77024-53040 Plate Sub-Assy, Fuel Suction[12.2007 -] USE20 |
77024-53040 |
from US $137.07 |
||
|
77030A
|
77030A
77030-51030 Lock Assy, Fuel Lid W/motor[12.2007 -] USE20 |
77030-51030 |
US $87.36 |
||
|
77100
|
77100
77001-53120 Tank Assy, Fuel[12.2007 - 05.2008] USE20 |
77001-53120 |
US $529.98 |
||
| replacement | |||||
|
77100
|
77100
77001-53121 Tank Assy, Fuel[12.2007 - 05.2008] USE20 |
77001-53121 |
US $366.91 |
||
|
77100
|
77100
77001-53121 Tank Assy, Fuel[06.2008 -] USE20 |
77001-53121 |
US $366.91 |
||
|
77168A
|
77168A
77168-52020 Plate, Fuel Tank Vent Tube Set[12.2007 -] USE20 |
77168-52020 |
from US $14.63 |
||
|
77169A
|
77169A
77169-52010 Gasket, Fuel Suction Tube Set[12.2007 -] USE20 |
77169-52010 |
from US $5.02 |
||
|
77179A
|
77179A
77179-20040 Gasket, Fuel Tank Breather Tube[12.2007 -] USE20 |
77179-20040 |
US $4.66 |
||
|
77201E
|
77201E
77201-53060 Pipe Sub-Assy, Fuel Tank Filler[12.2007 -] USE20 |
77201-53060 |
US $116.54 |
||
|
77209F
|
77209F
77209-53060 Tube Sub-Assy, Fuel Tank Main[12.2007 -] USE20 |
77209-53060 |
US $42.81 |
||
|
77213B
|
77213B
77213-22100 Hose, Fuel Tank To Filler Pipe[12.2007 -] USE20 |
77213-22100 |
US $29.56 |
||
|
77216A
|
77216A
77216-30050
Support, Fuel Tank Filler Pipe, No.1
[12.2007 - 02.2012] USE20 |
77216-30050 |
— | ||
| replacement | |||||
|
77216A
|
77216A
77216-30051 Support, Fuel Tank Filler Pipe, No.1[12.2007 - 02.2012] USE20 |
77216-30051 |
US $12.06 |
||
|
77216A
|
77216A
77216-30051 Support, Fuel Tank Filler Pipe, No.1[03.2012 -] USE20 |
77216-30051 |
US $12.06 |
||
|
77217A
|
77217A
77217-30130 Support, Fuel Tank Filler Pipe, No.2[12.2007 - 02.2012] USE20 |
77217-30130 |
US $6.99 |
||
| replacement | |||||
|
77217A
|
77217A
77217-30131 Support, Fuel Tank Filler Pipe, No.2[12.2007 - 02.2012] USE20 |
77217-30131 |
US $5.59 |
||
|
77217A
|
77217A
77217-30131 Support, Fuel Tank Filler Pipe, No.2[03.2012 -] USE20 |
77217-30131 |
US $5.59 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[02.2010 -] USE20 |
77241-33011 |
from US $0.84 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[12.2007 - 01.2010] USE20 |
77241-60320 |
from US $0.84 |
||
|
77245D
|
77245D
77245-53040 Tube, Fuel Tank Return Vent[12.2007 -] USE20 |
77245-53040 |
US $24.75 |
||
|
77269A
|
77269A
77269-22010 Hose, Fuel Tank Breather[12.2007 -] USE20 |
77269-22010 |
US $9.32 |
||
|
77281A
|
77281A
77281-50020 Clamp, Fuel Filler Pipe[12.2007 -] USE20 |
77281-50020 |
US $3.20 |
||
|
77289
|
77289
77289-52090 Holder, Fuel Tank Pipe Setting[12.2007 -] USE20 |
77289-52090 |
US $8.42 |
||
|
77289B
|
77289B
77289-53020 Clamp, Fuel Tube[12.2007 - 08.2014] USE20 |
77289-53020 |
US $5.82 |
||
|
77290
|
77290
77290-53010 Shield Assy, Fuel Tank Filler Pipe[12.2007 -] USE20 |
77290-53010 |
US $15.58 |
||
|
77291A
|
77291A
77291-53030 Shield, Fuel Tank Filler Pipe[12.2007 -] USE20 |
77291-53030 |
US $23.15 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[12.2007 -] USE20 |
77300-52030 |
from US $25.37 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[12.2007 -] USE20 |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-53050 Lid Assy, Fuel Filler Opening[12.2007 -] USE20 |
77350-53050 |
US $42.22 |
||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[12.2007 -] USE20 |
77360-30070 |
from US $3.40 |
||
| replacement | |||||
|
77366
|
77366
77360-0R010 Spring Assy, Charging Port Opening Lid[12.2007 -] USE20 |
77360-0R010 |
US $8.45 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[12.2007 -] USE20 NO.1 |
77377-12050 |
from US $3.76 |
||
|
77377
|
77377
77377-22060 Retainer, Fuel Filler Opening Lid Lock[12.2007 -] USE20 NO.2 |
77377-22060 |
from US $11.50 |
||
|
77391A
|
77391A
77391-12020 Ring, Fuel Inlet Box[12.2007 -] USE20 |
77391-12020 |
from US $1.92 |
||
|
77404A
|
77404A
77404-53040
Hose Sub-Assy, Fuel Tank Vent
[12.2007 -] USE20 |
77404-53040 |
— | ||
|
77503
|
77503
77503-53010
Retainer Sub-Assy, Tank Bracket
[12.2007 - 06.2008] USE20 |
77503-53010 |
— | ||
| replacement | |||||
|
77503
|
77503
77513-53020
Retainer Sub-Assy, Tank Bracket
[12.2007 - 06.2008] USE20 |
77513-53020 |
— | ||
|
77503
|
77503
77513-53020
Retainer Sub-Assy, Tank Bracket
[07.2008 -] USE20 |
77513-53020 |
— | ||
|
77601B
|
77601B
77601-53030
Band Sub-Assy, Fuel Tank, No.1 Rh
[12.2007 -] USE20 |
77601-53030 |
— | ||
|
77602B
|
77602B
77602-53010
Band Sub-Assy, Fuel Tank, No.1 Lh
[12.2007 -] USE20 |
77602-53010 |
— | ||
|
77606
|
77606
77606-53040
Protector Sub-Assy, Fuel Tank, No.1
[12.2007 - 06.2012] USE20 |
77606-53040 |
— | ||
| replacement | |||||
|
77606
|
77606
77606-53041 Protector Sub-Assy, Fuel Tank, No.1[12.2007 - 06.2012] USE20 |
77606-53041 |
US $180.57 |
||
|
77606
|
77606
77606-53041 Protector Sub-Assy, Fuel Tank, No.1[07.2012 - 07.2013] USE20 |
77606-53041 |
US $180.57 |
||
|
77606D
|
77606D
77607-53010
Protector, Fuel Tank, No.3
[12.2007 -] USE20 |
77607-53010 |
— | ||
|
77606E
|
77606E
77607-53020
Protector, Fuel Tank, No.4
[12.2007 -] USE20 |
77607-53020 |
— | ||
|
77651A
|
77651A
77651-53010 Cushion, Fuel Tank, No.1[12.2007 -] USE20 |
77651-53010 |
US $3.35 |
||
|
77652A
|
77652A
77652-12100 Cushion, Fuel Tank, No.1[07.2013 -] USE20 |
77652-12100 |
US $10.57 |
||
|
77653A
|
77653A
77652-53010 Cushion, Fuel Tank, No.3[12.2007 -] USE20 |
77652-53010 |
US $15.29 |
||
|
77662
|
77662
77662-53010 Cover, Fuel Tank Gage[12.2007 -] USE20 |
77662-53010 |
US $1.16 |
||
|
77681
|
77681
77681-22020 Seat, Fuel Tank Band, Rh[12.2007 -] USE20 |
77681-22020 |
US $8.74 |
||
|
77785
|
77785
77785-53010 Harness, Fuel Pump[12.2007 -] USE20 |
77785-53010 |
US $5.10 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
91671A0820
|
91671A0820
91671-A0820 New Genuine Part |
91671-A0820 |
US $1.43 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9011906403
|
9011906403
90119-06403 BOLT W-WASHER |
90119-06403 |
from US $0.76 |
||
|
9011910814
|
9011910814
90119-10814 Bolt, Fuel Tank Band Set |
90119-10814 |
US $3.94 |
||
|
9015950269
|
9015950269
90159-50269 SCREW WWASHER |
90159-50269 |
US $1.25 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.82 |
||
|
9018905137
|
9018905137
90189-05137 GROMMET SCREW |
90189-05137 |
US $1.43 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9030108019
|
9030108019
90301-08019 Ring, O(For Fuel Pressure Regulator) |
90301-08019 |
from US $2.09 |
||
|
9030111025
|
9030111025
90301-11025 Ring, O(For Fuel Pump) |
90301-11025 |
from US $2.09 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9095901538
|
9095901538
90959-01538 New Genuine Part |
90959-01538 |
US $2.97 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
